X412

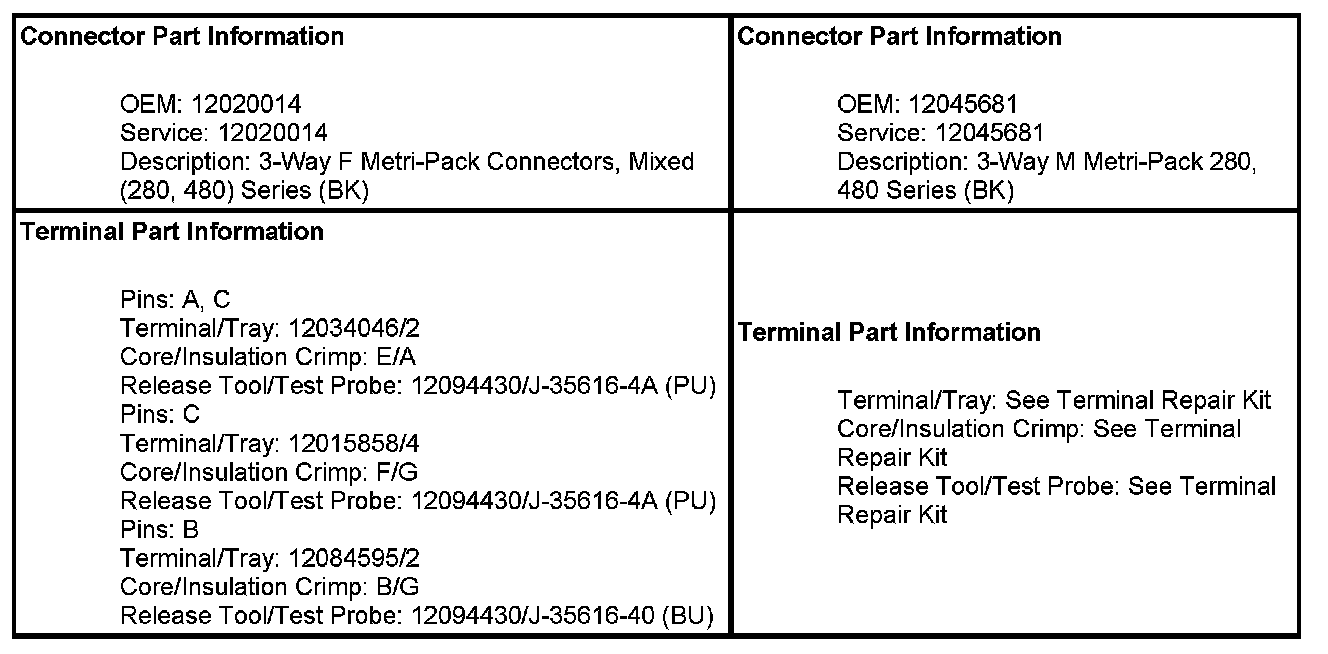

Inline Harness Connector End Views

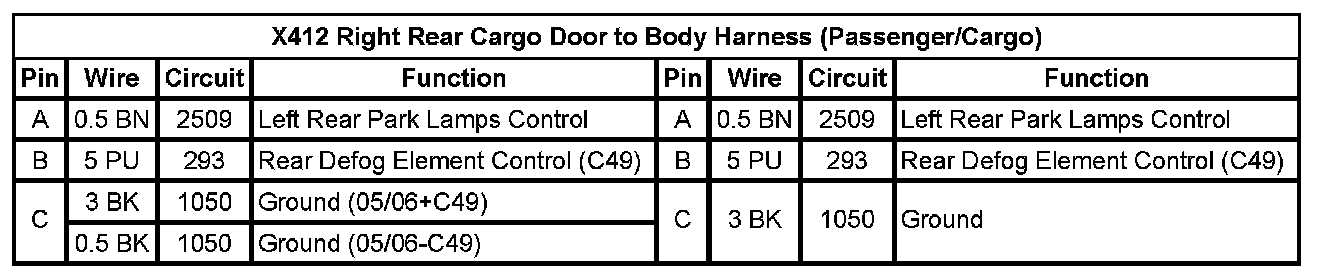

X412 Right Rear Cargo Door to Body Harness (Passenger/Cargo)









X412 Right Rear Cargo Doo To Body Harness (Passenger/Cargo) Pin A To C:
