Home >> Chevy Truck >> 2008 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X400 - X499 >> X411

X411

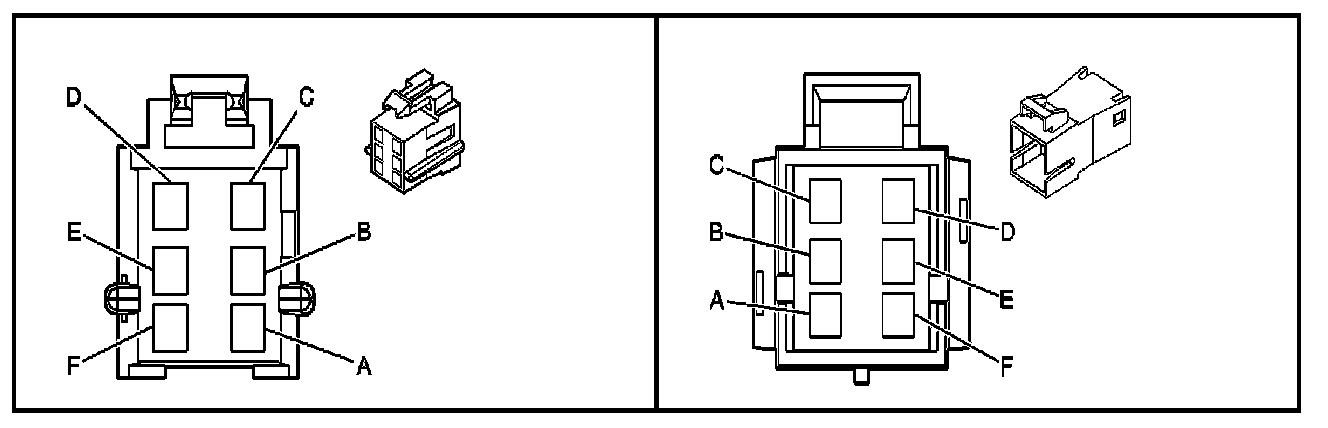

Inline Harness Connector End Views

X411 Left Rear Cargo Door Harness to Body Harness (Passenger/Cargo)

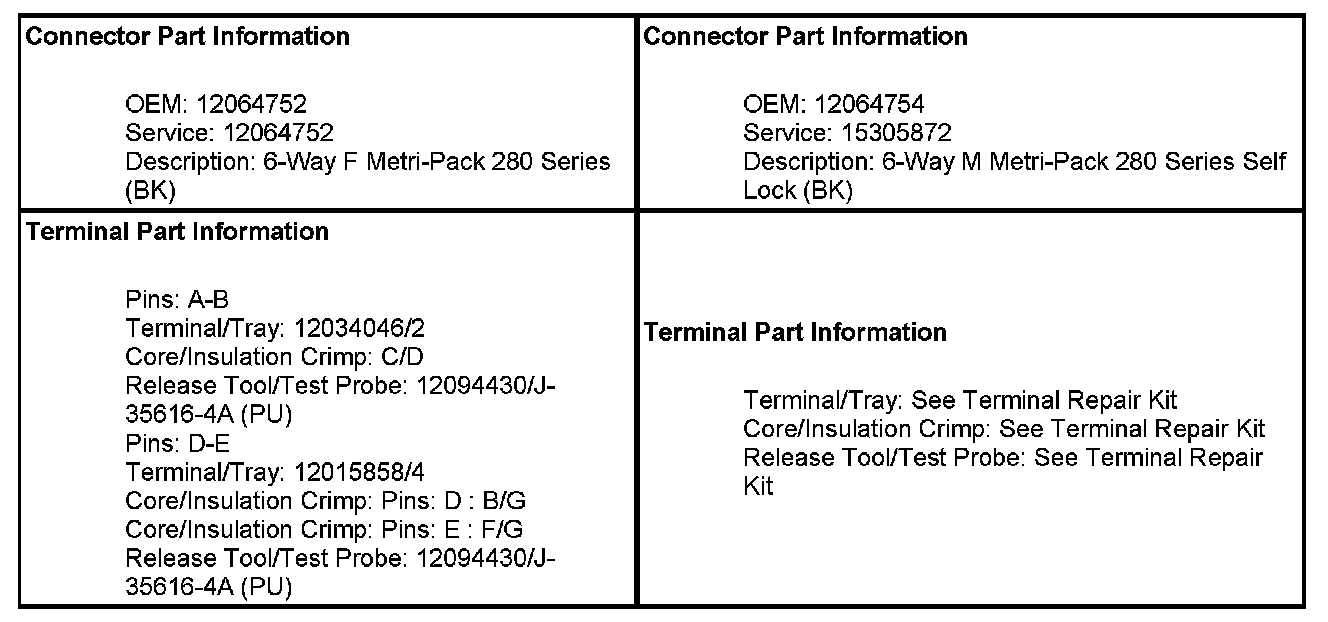

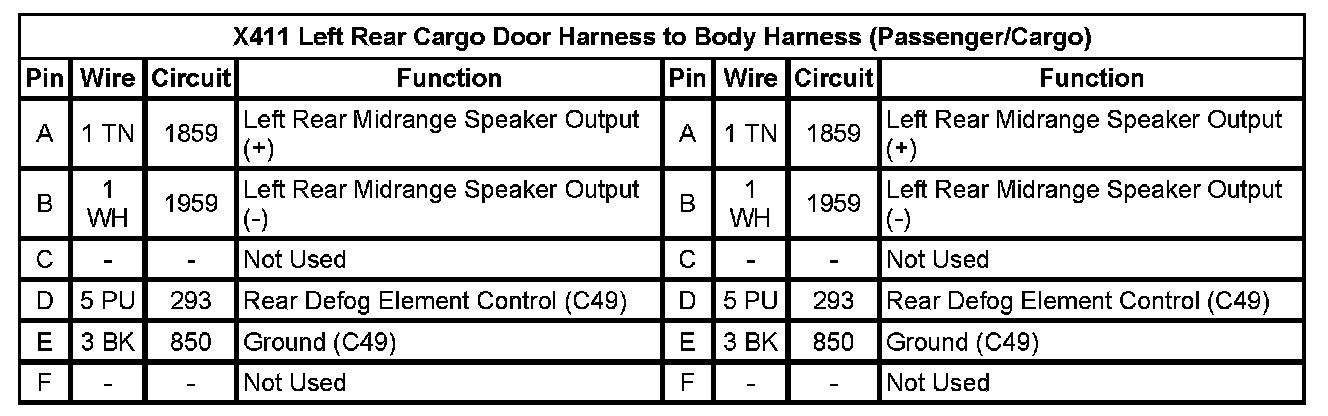

X411 Left Rear Cargo Door Harness To Body Harness (Passenger/Cargo) Pin A To F:
