Chevy Truck
>>
2008
>>
Express 3500 V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
X400 - X499
>>
X407
X407

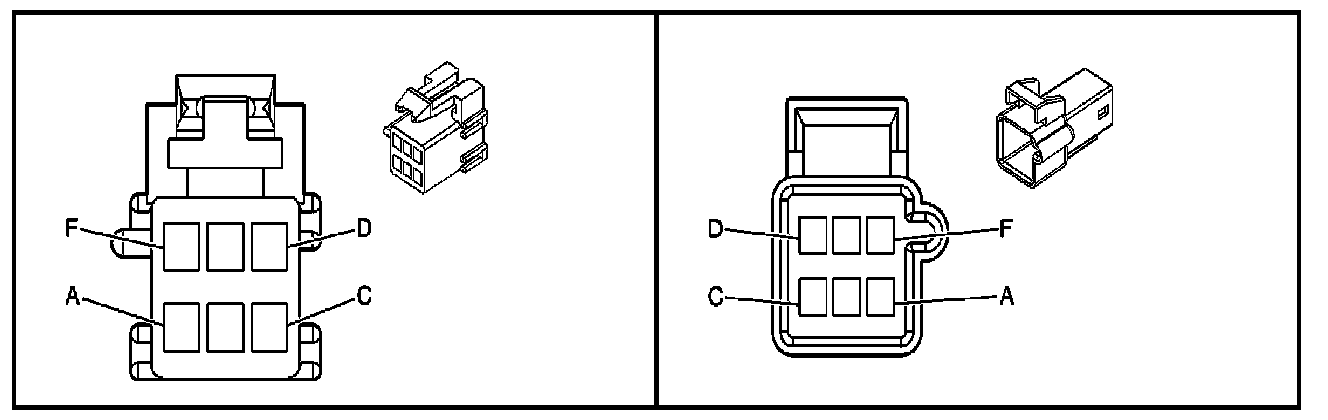

Inline Harness Connector End Views

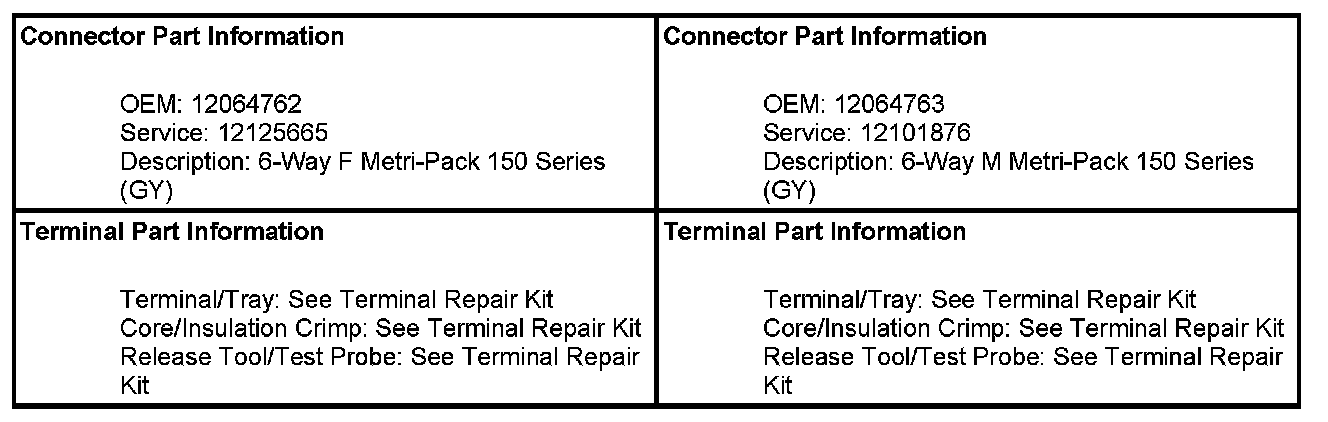

X407 Rear HVAC Harness to Body Harness (C36/C69)

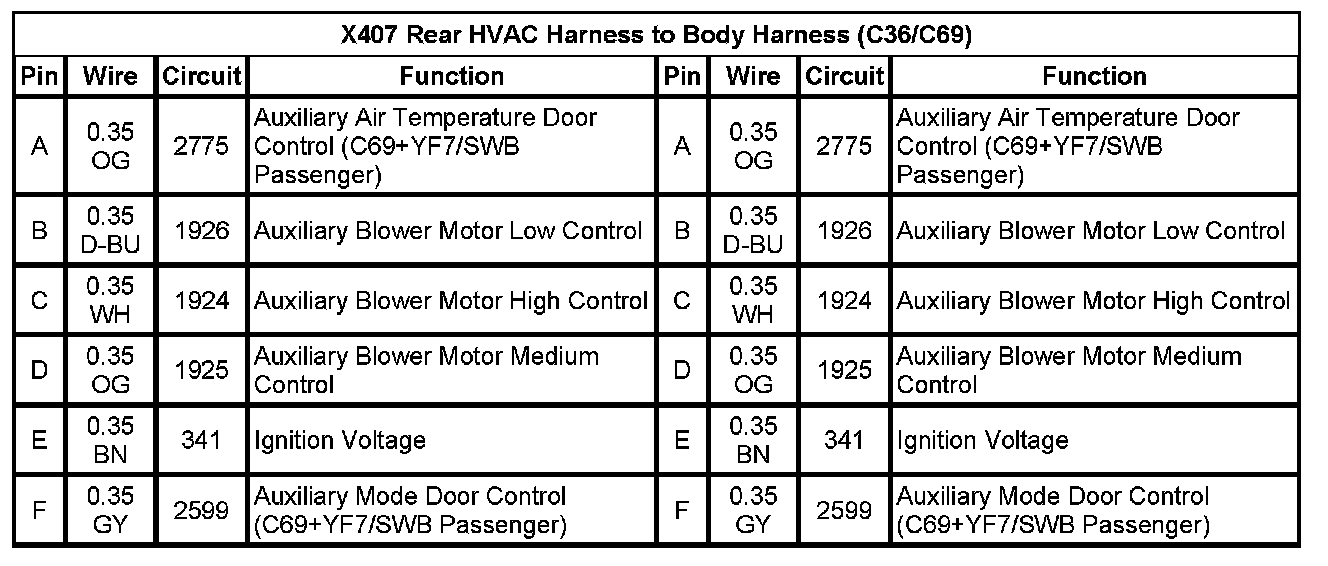

X407 Rear HVAC Harness To Body Harness (C36/C69) Pin A To F:
