Home >> Chevy Truck >> 2008 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X400 - X499 >> X400

X400

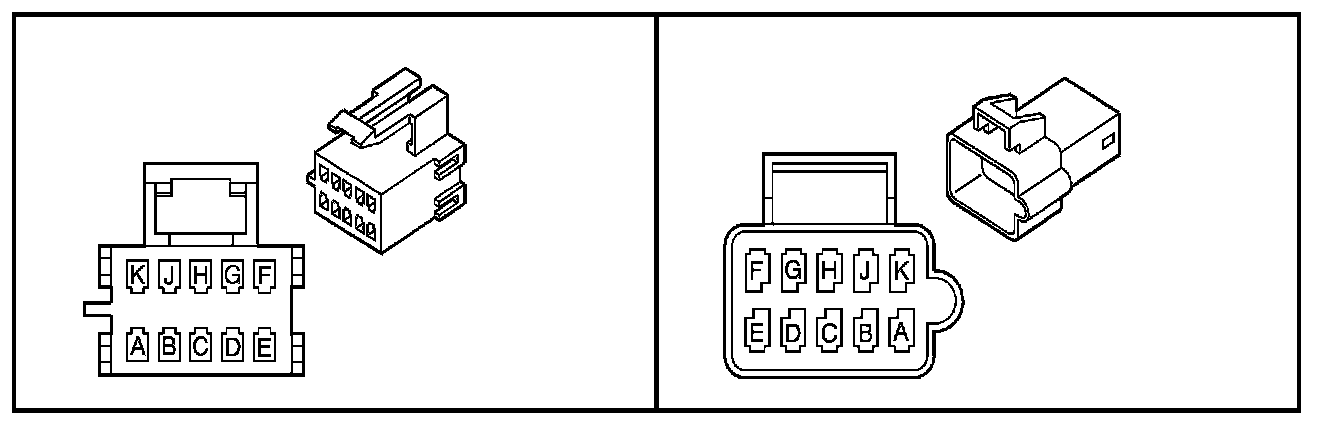

Inline Harness Connector End Views

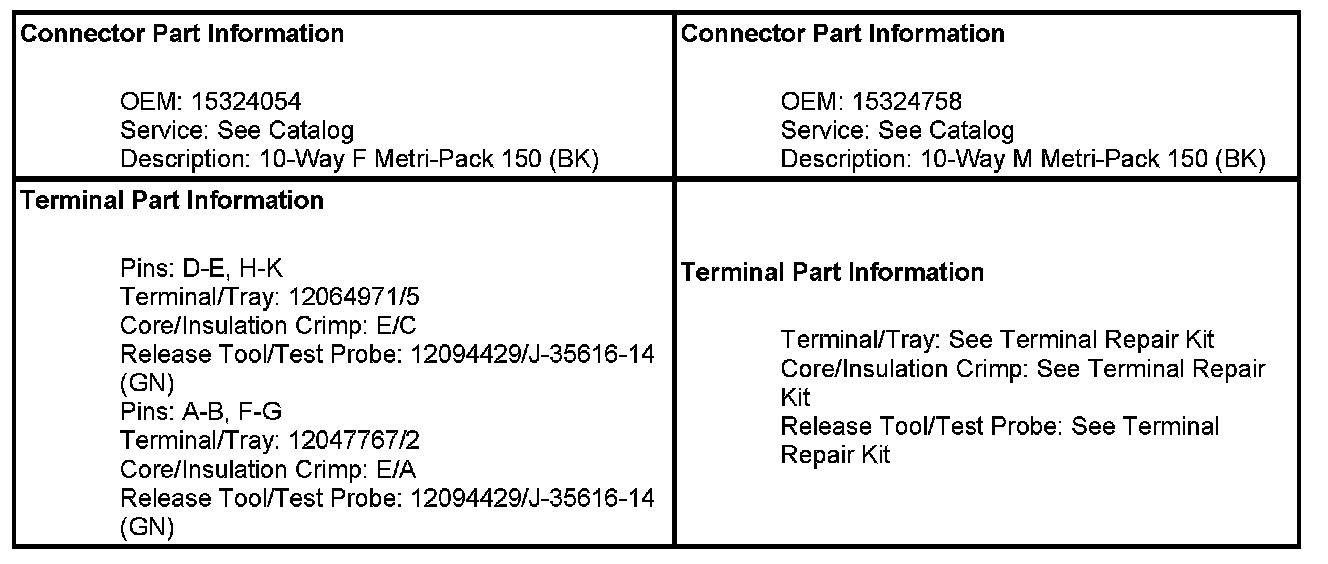

X400 Right Rear Cargo Door to Body Harness (Passenger/Cargo)

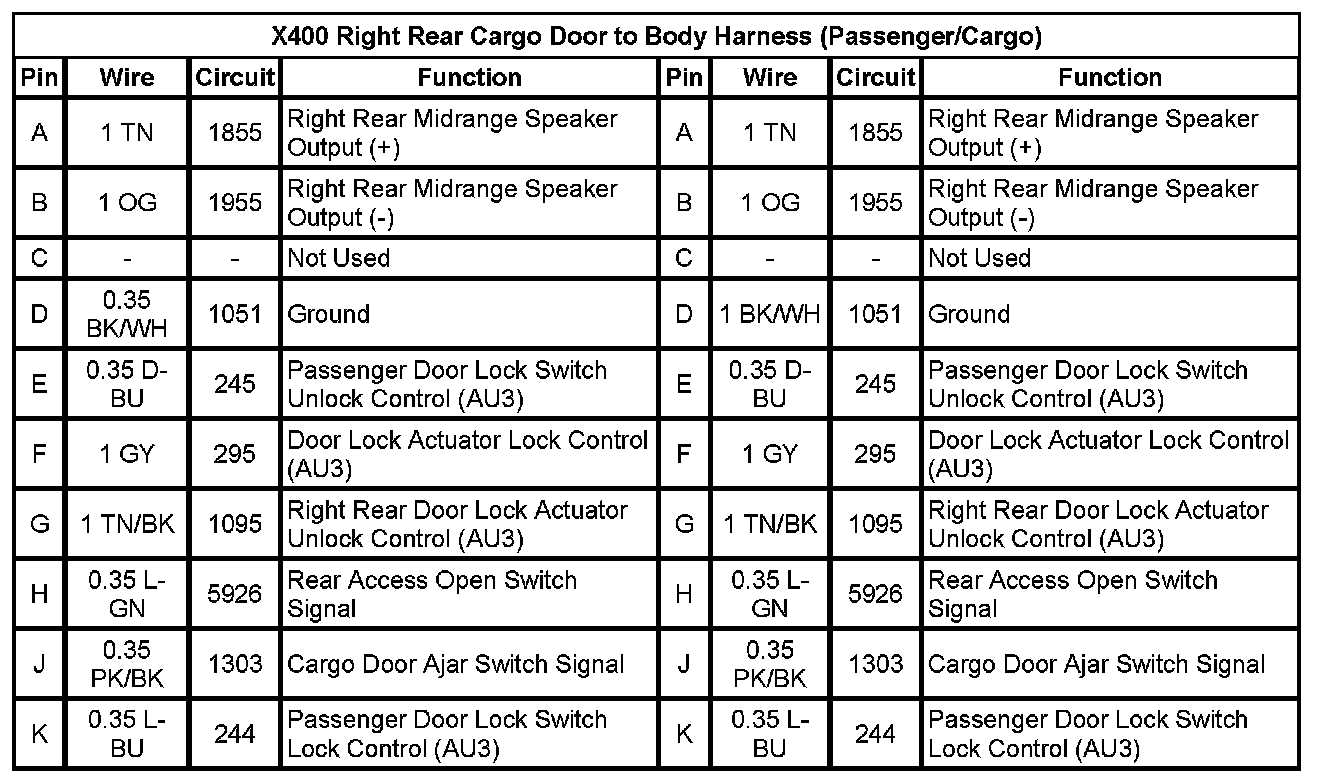

X400 Right Rear Cargo Door To Body Harness (Passenger/Cargo) Pin A To K:
