X324

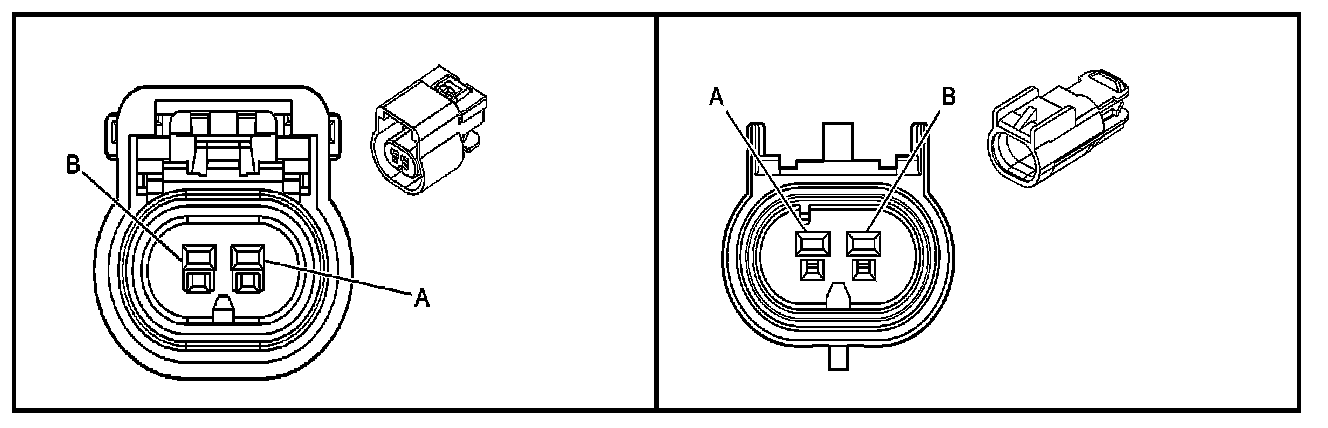

Inline Harness Connector End Views

X324 Right Rear Side Impact Sensor Jumper to Body Harness (ASF)

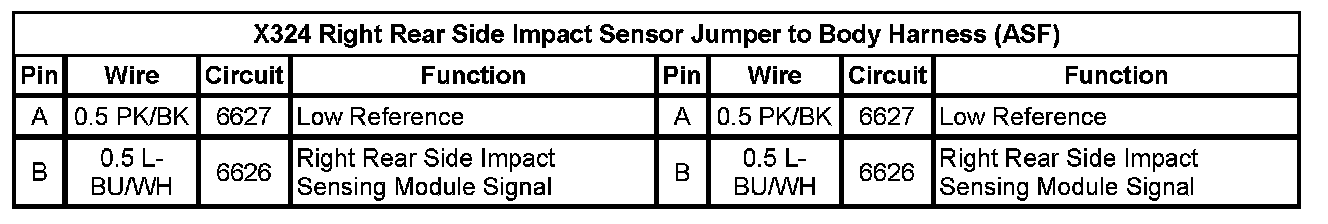

X324 Right Rear Side Impact Sensor Jumper To Body Harness (ASF) Pin A To B:
