X323

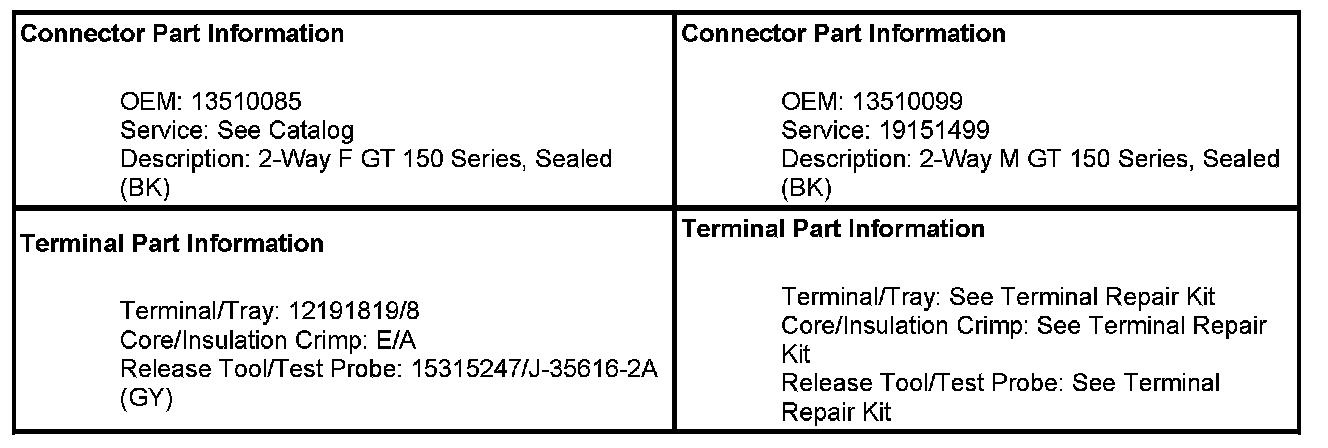

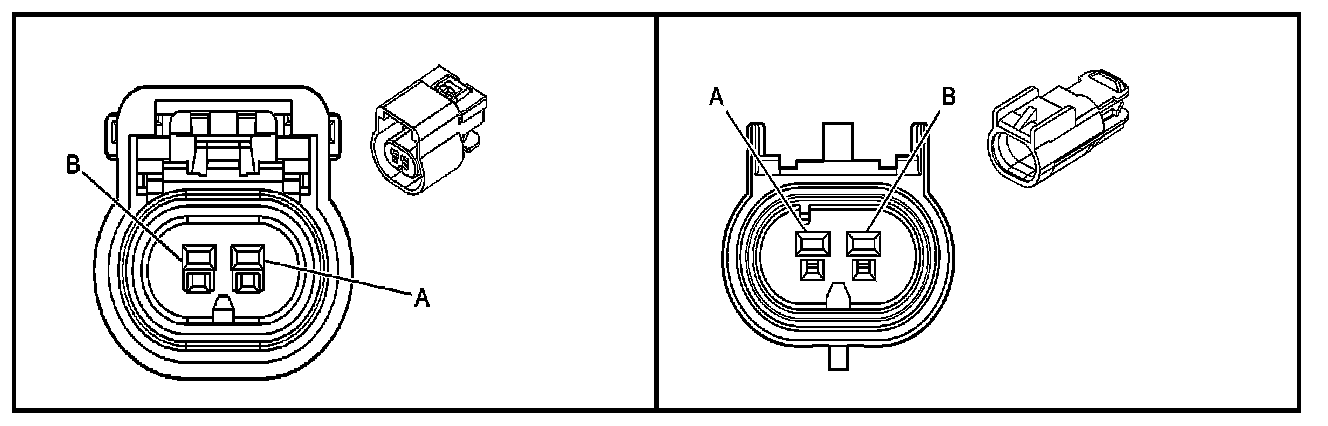

Inline Harness Connector End Views

X323 Driver Side Impact Sensor Jumper Harness to Driver Door Harness (ASF)

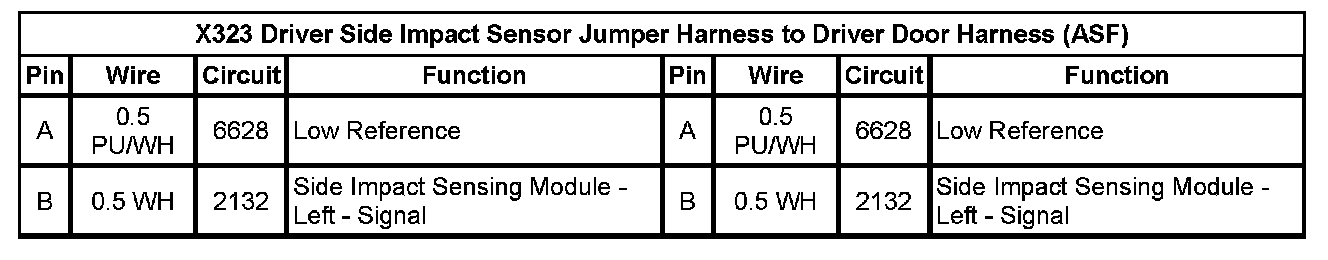

X323 Driver Side Impact Sensor Jumper Harness To Driver Door Harness (ASF) Pin A To B:
