X322

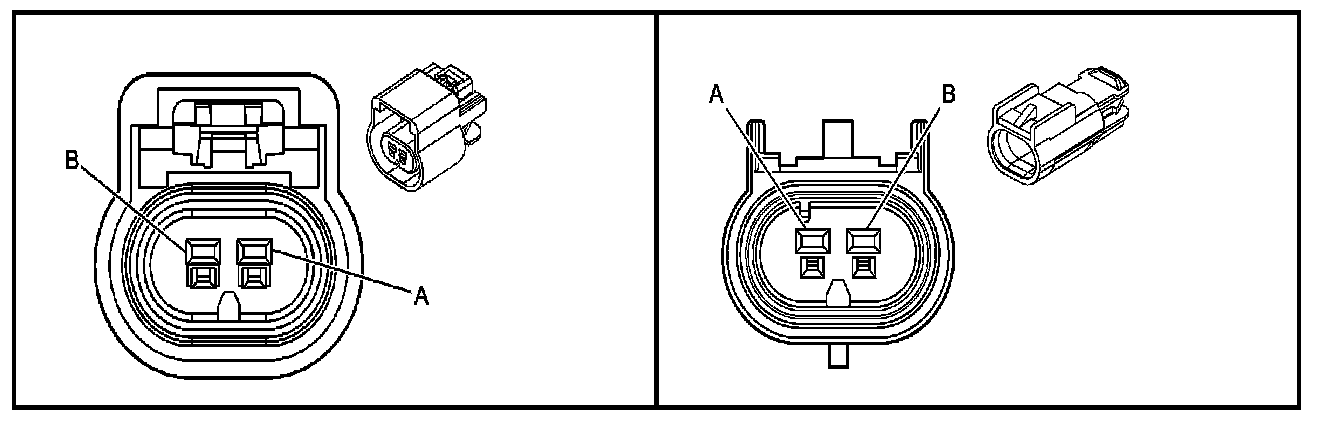

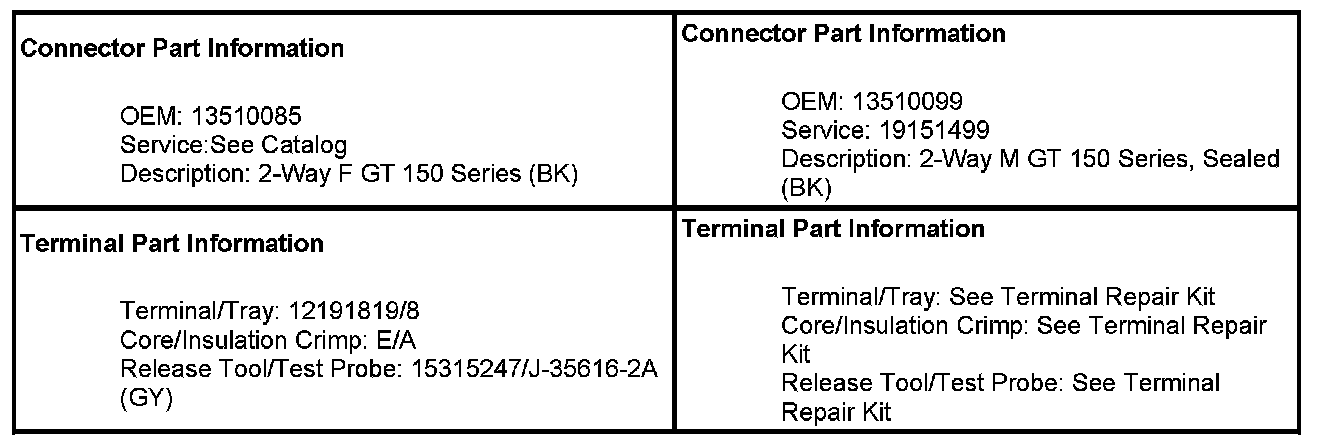

Inline Harness Connector End Views

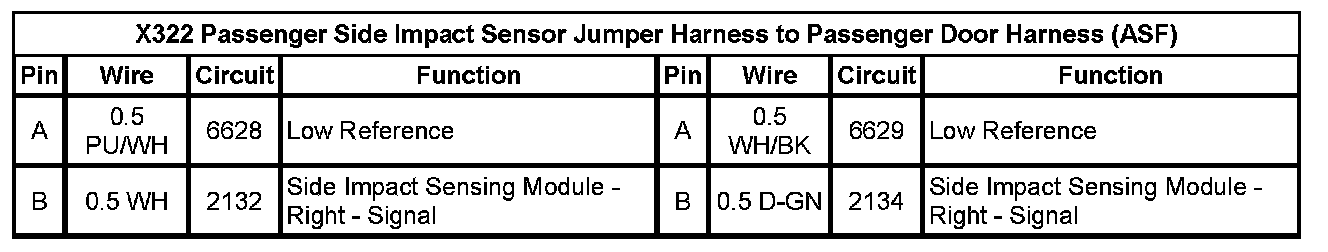

X322 Passenger Side Impact Sensor Jumper Harness to Passenger Door Harness (ASF)









X322 Passenger Side Impact Sensor JUmper Harness To Passenger Door Harness (ASF) Pin A To B:
