X306
X306

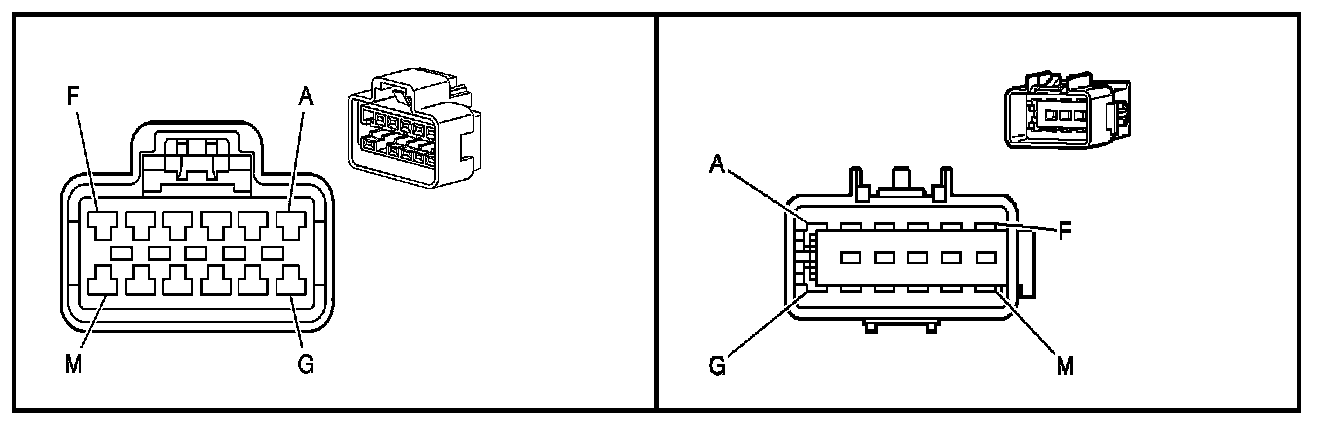

Inline Harness Connector End Views

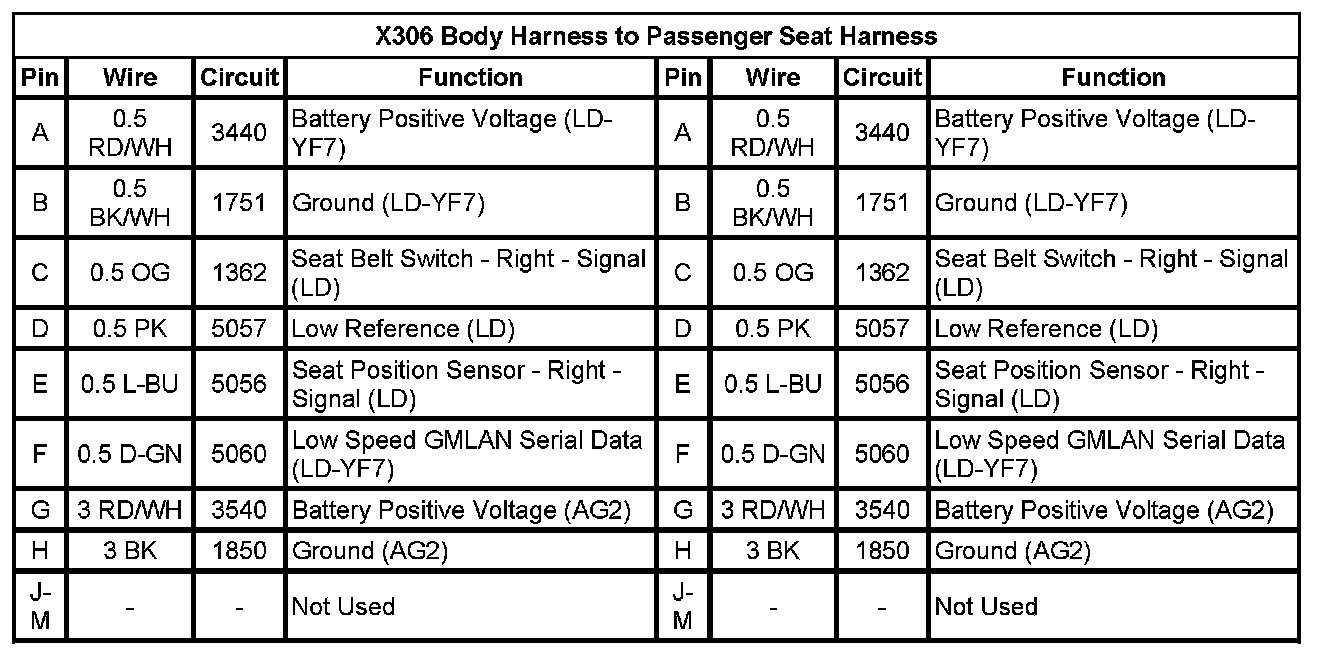

X306 Body Harness to Passenger Seat Harness

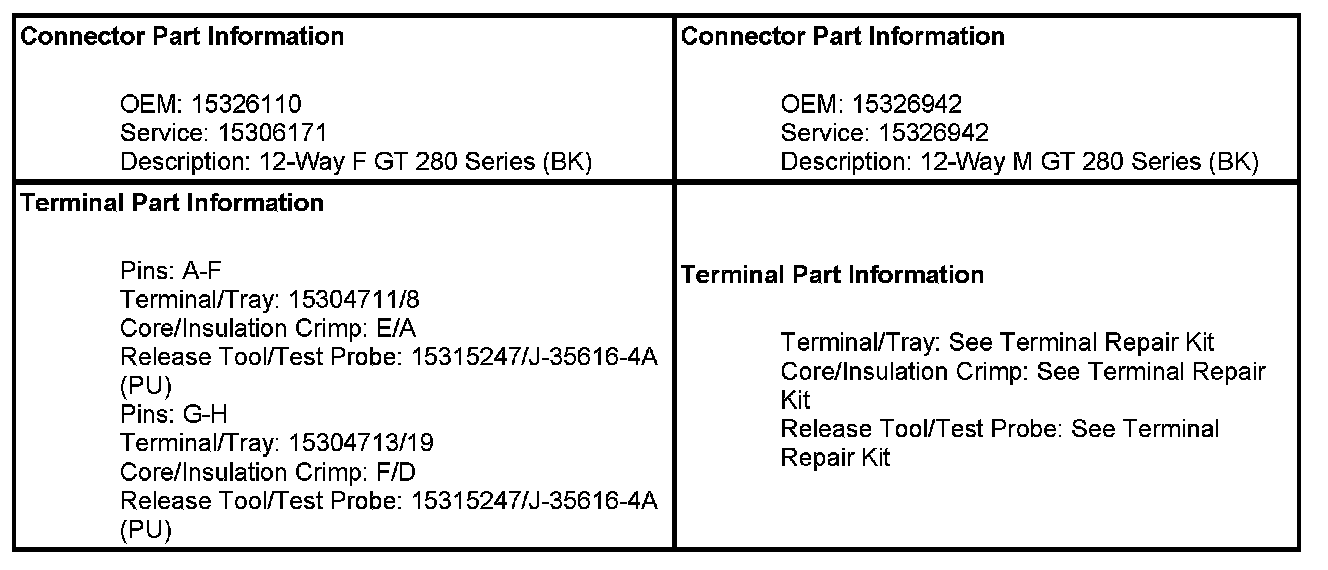

X306 Body Harness To Passenger Seat Harness Pin A To M:
