X305

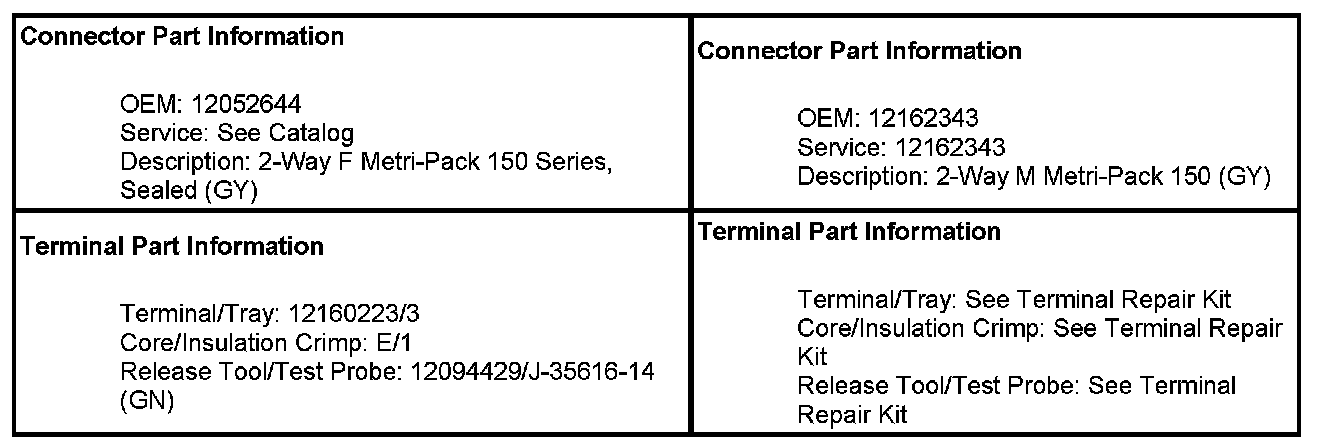

Inline Harness Connector End Views

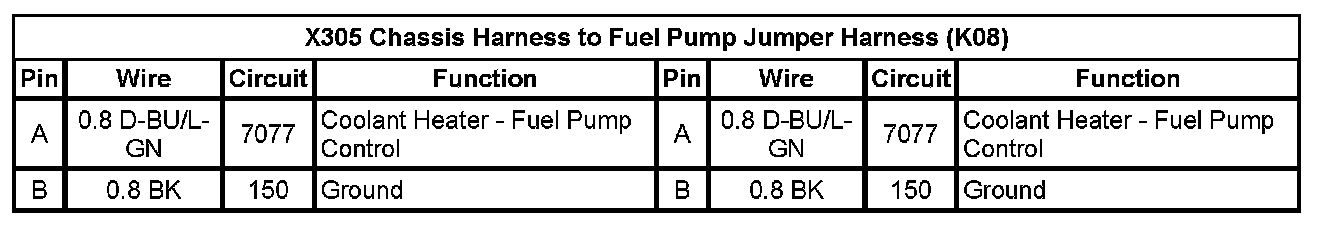

X305 Chassis Harness to Fuel Pump Jumper Harness (K08)









X305 Chassis Harness To Fuel Pump Jumper Harness (K08) Pin A To B:
