X222

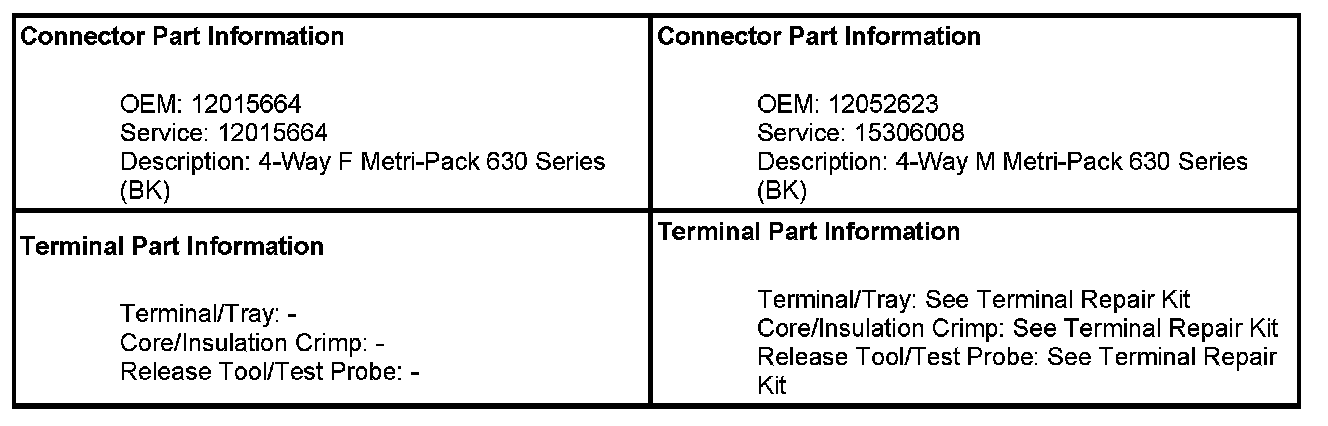

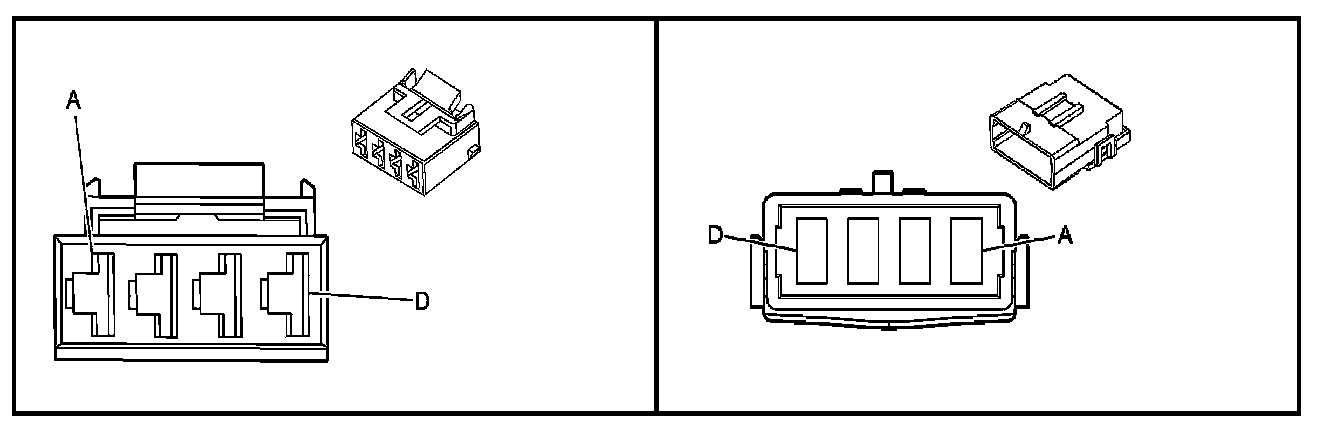

Inline Harness Connector End Views

X222 Upfitter Provision Harness to Instrument Panel Harness (YF2/YF7)

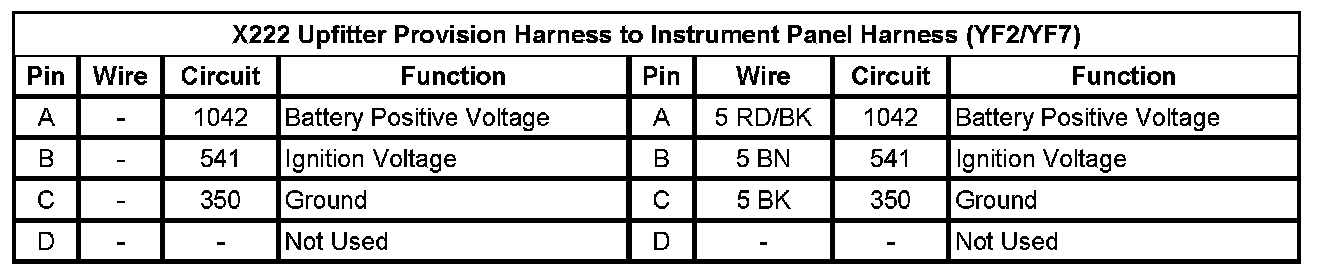

X222 Upfitter Provision Harness To Instrument Panel Harness (YF2/YF7) Pin A To D:
