X221

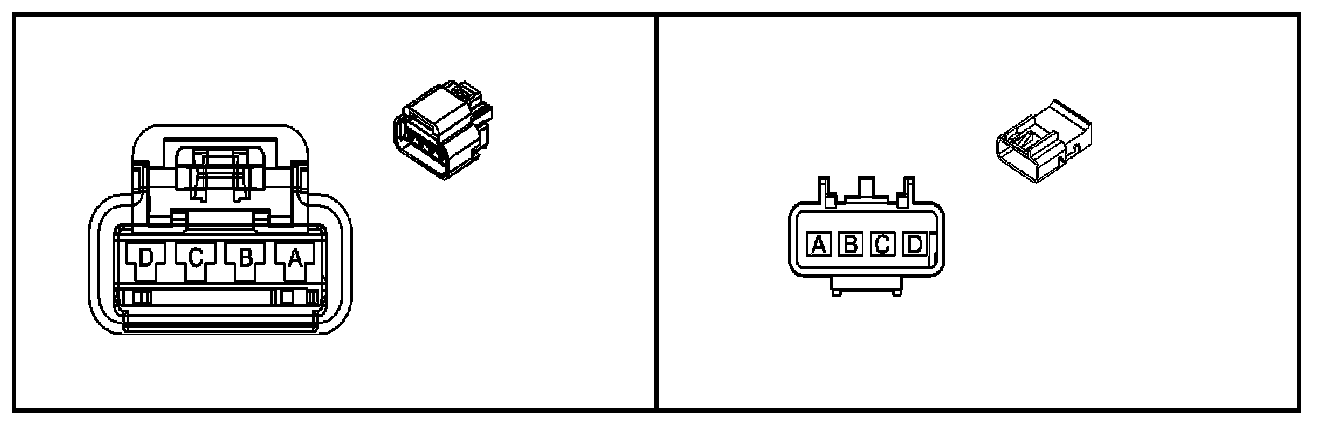

Inline Harness Connector End Views

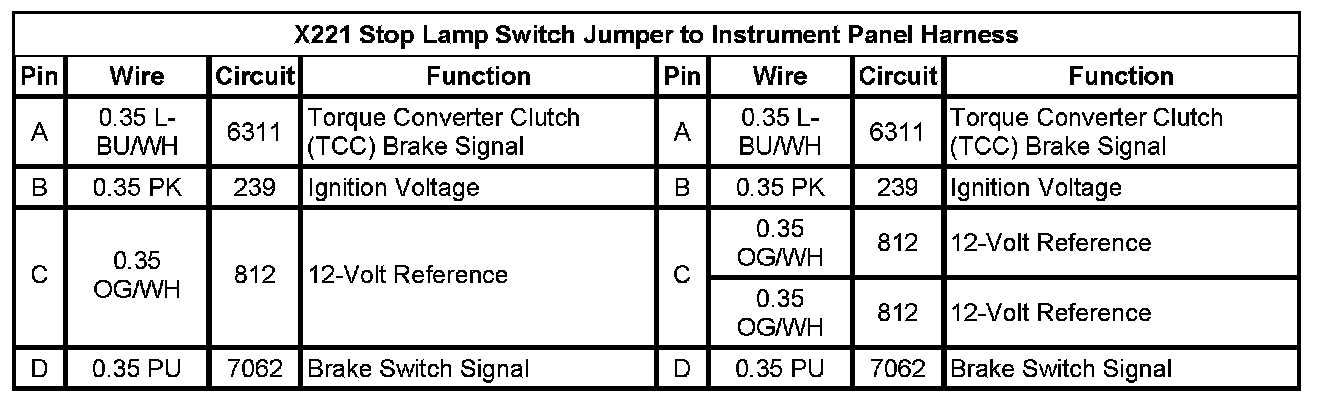

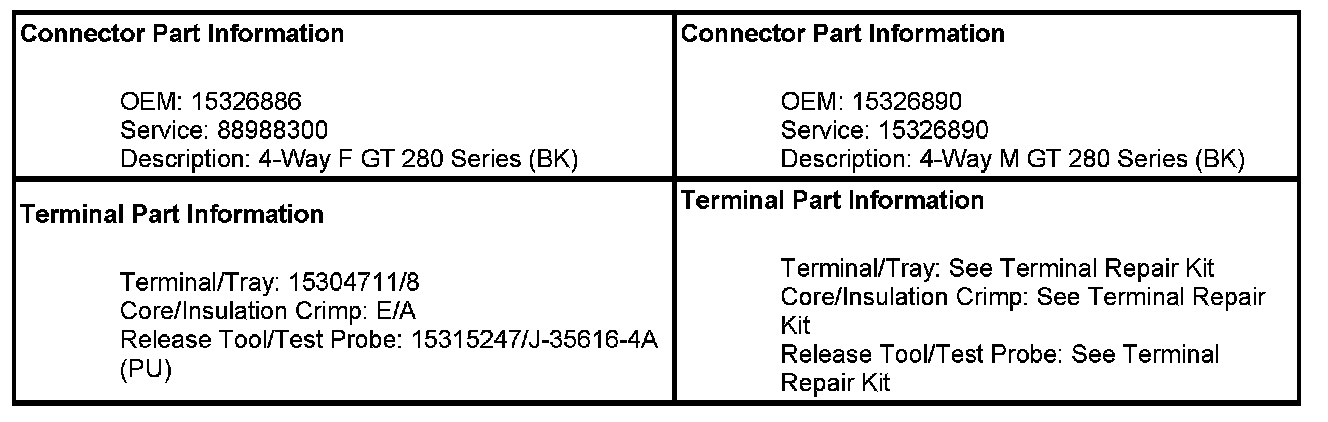

X221 Stop Lamp Switch Jumper to Instrument Panel Harness









X221 Stop Lamp Switch Jumper To Instrument Panel Harness Pin A To D:
