X205
X205

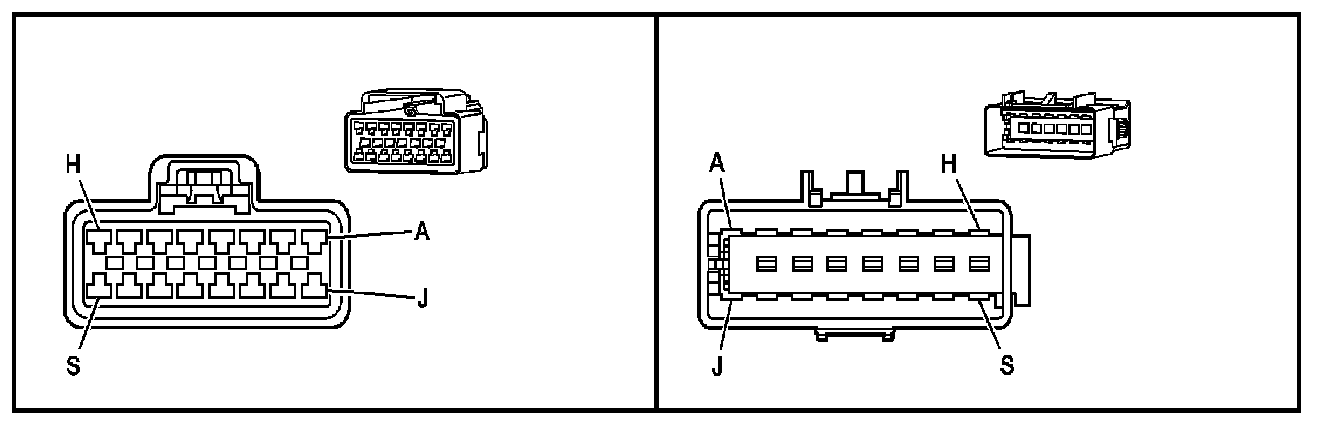

Inline Harness Connector End Views

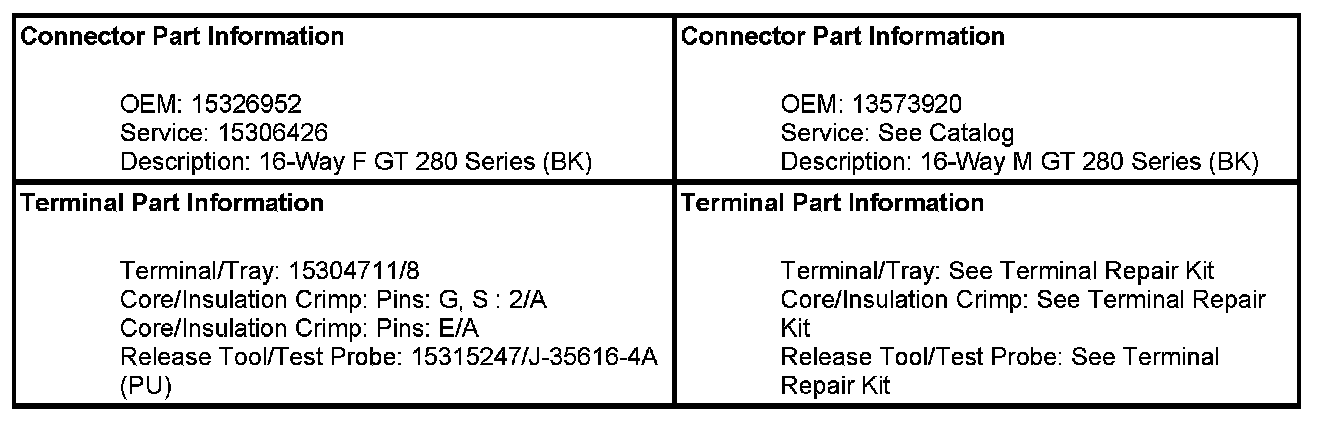

X205 Front Headliner Harness to Body Harness

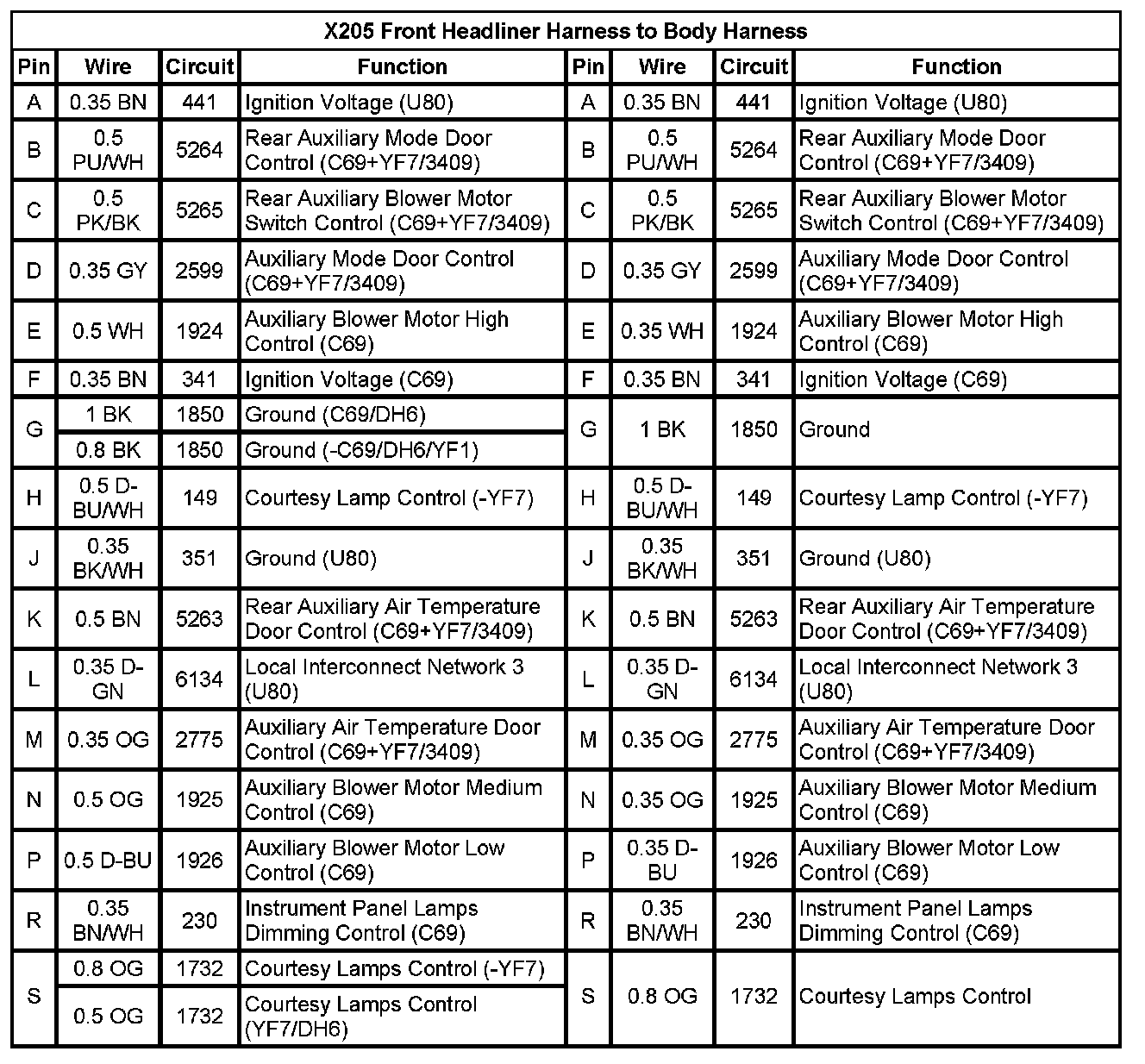

X205 Front Headliner Harness To Body Harness Pin A To S:
