X201

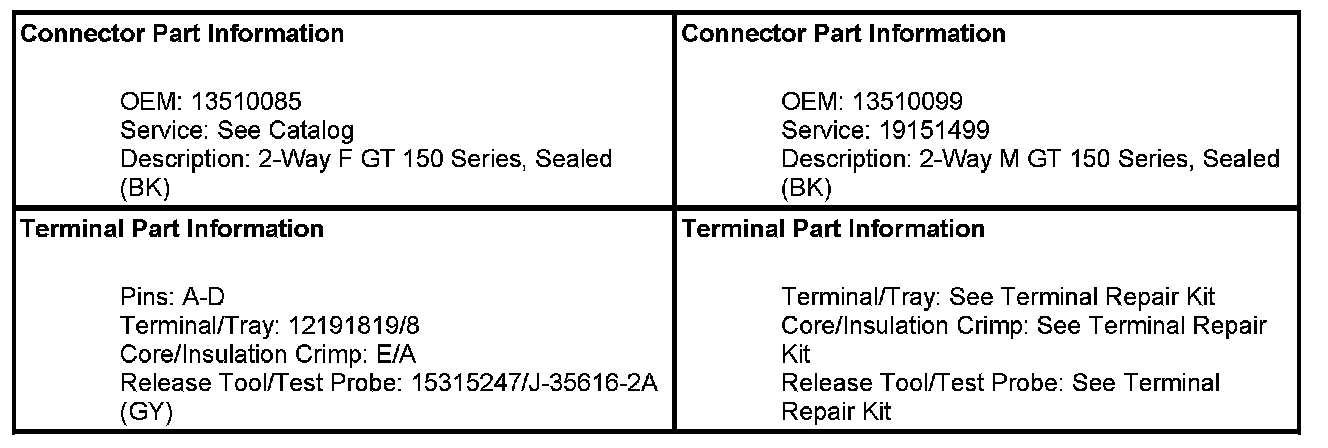

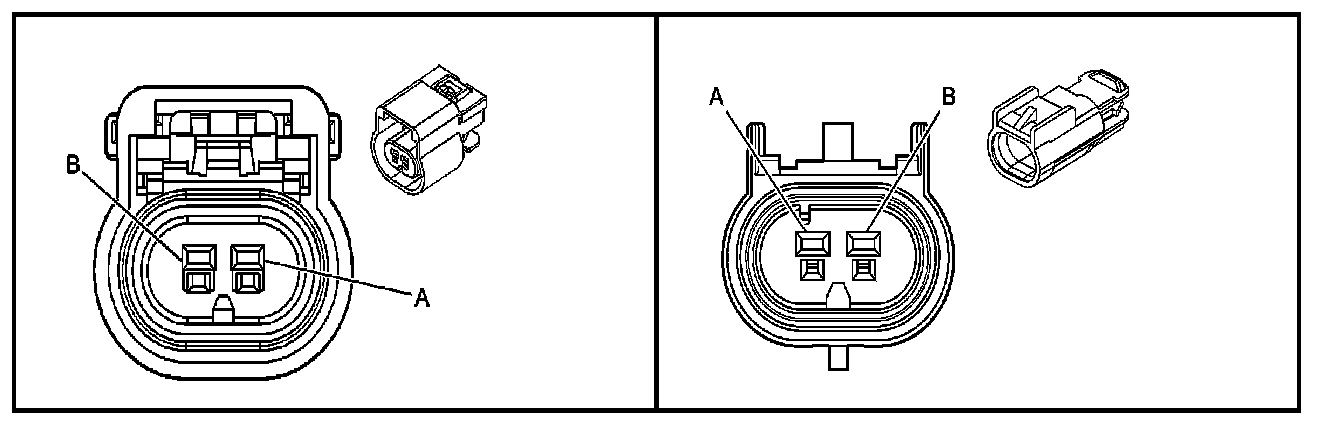

Inline Harness Connector End Views

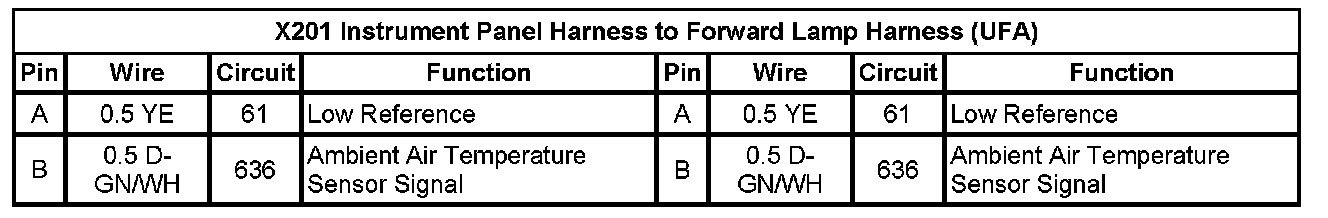

X201 Instrument Panel Harness to Forward Lamp Harness (UFA)









X201 Instrument Panel Harness Forward Lamp Harness (UFA) Pin A To B:
