X175



Inline Harness Connector End Views

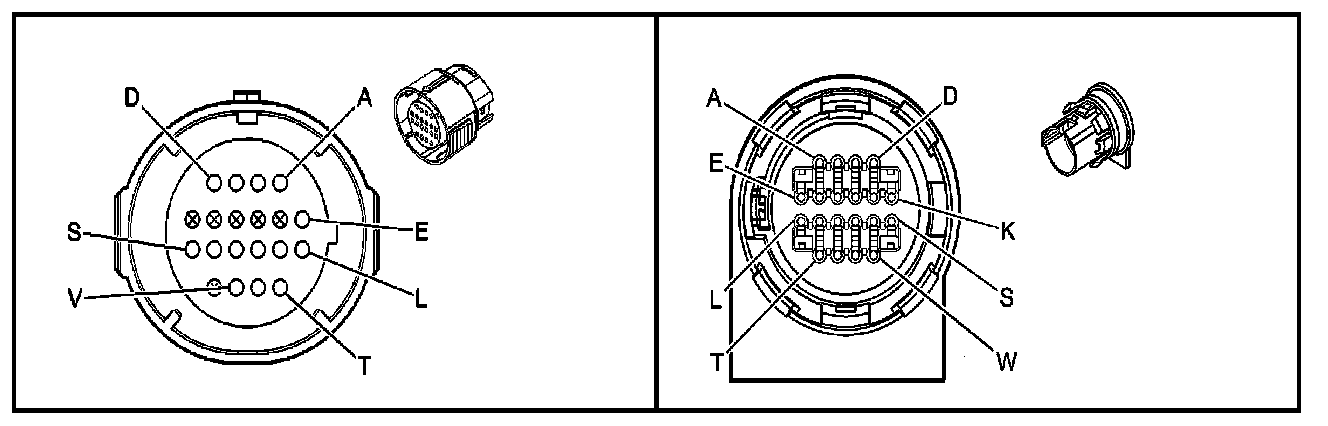

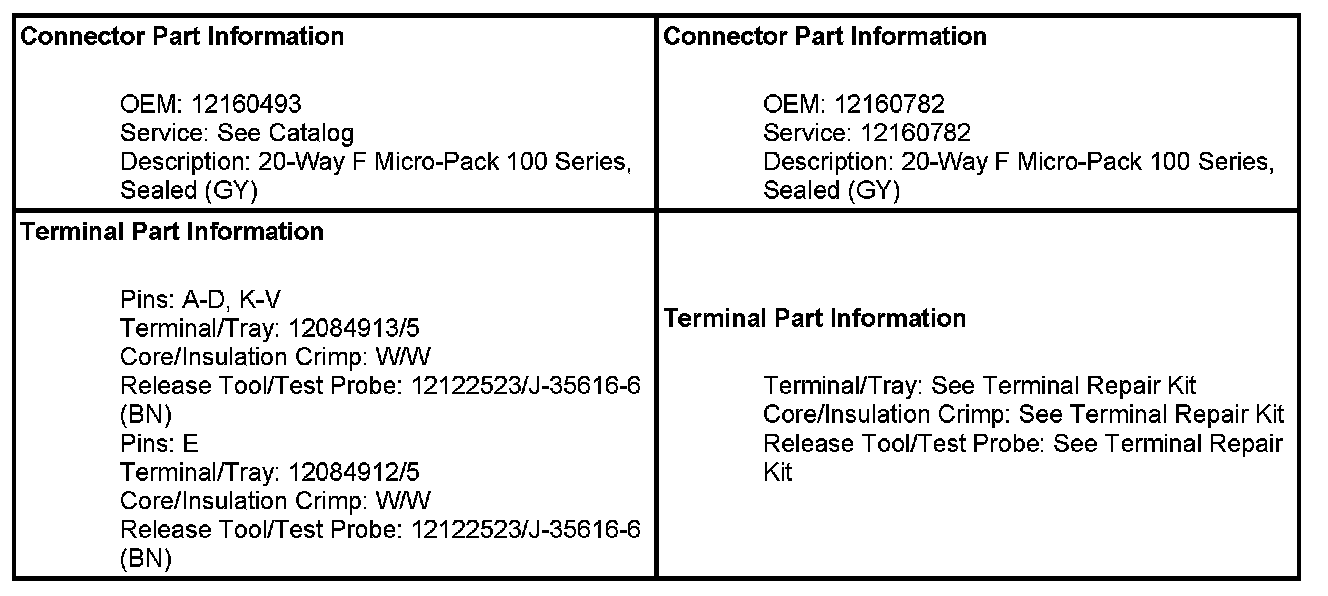

X175 Engine Harness to Transmission Harness (4L60-E)

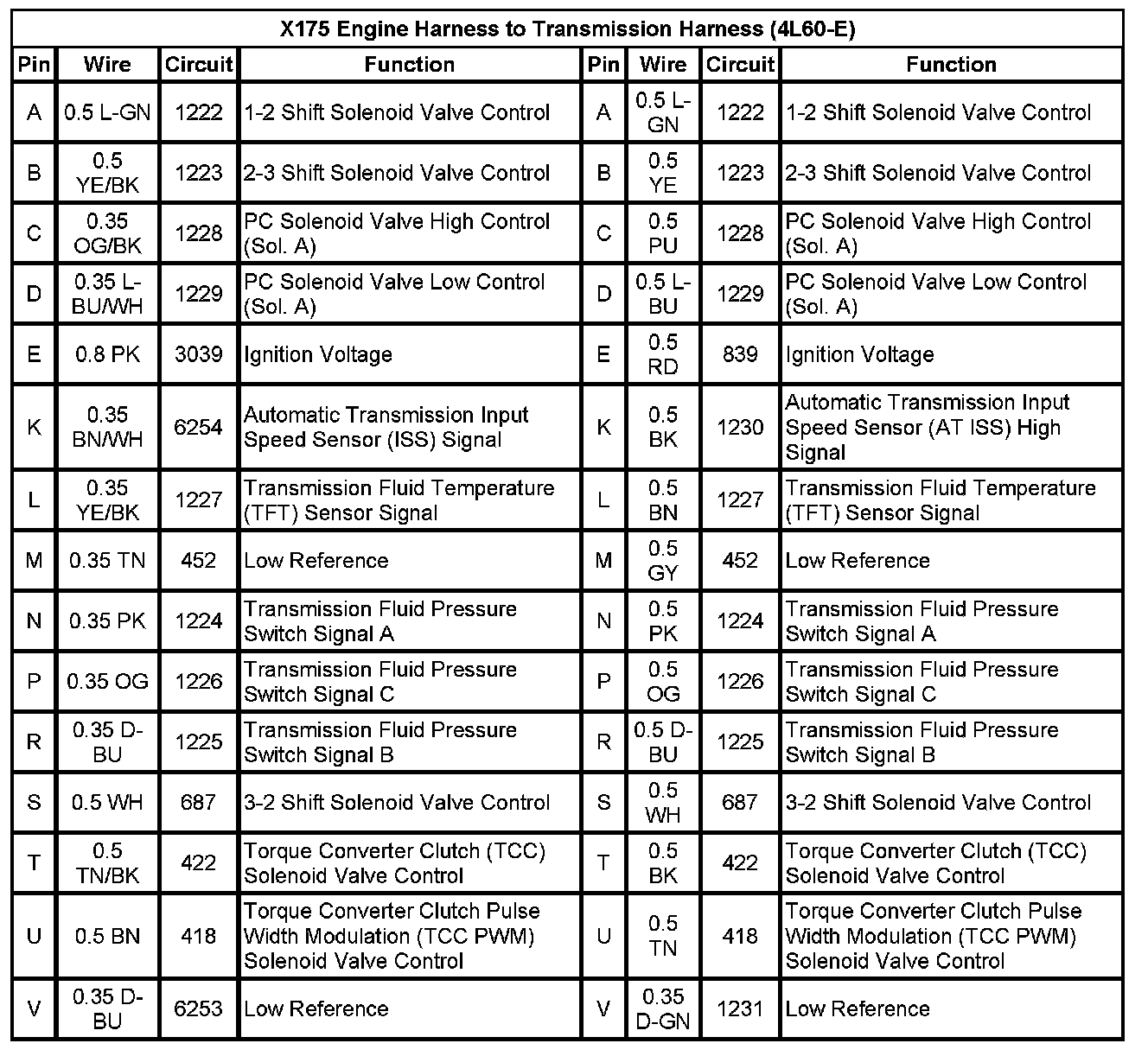

X175 Engine Harness To Transmission Harness (4L60-E) Pin A To V:

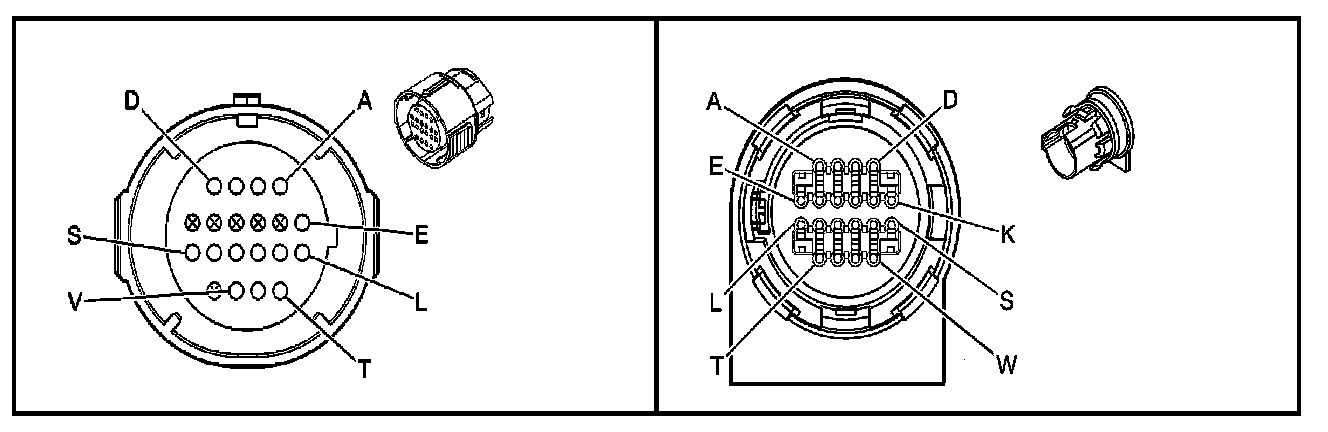

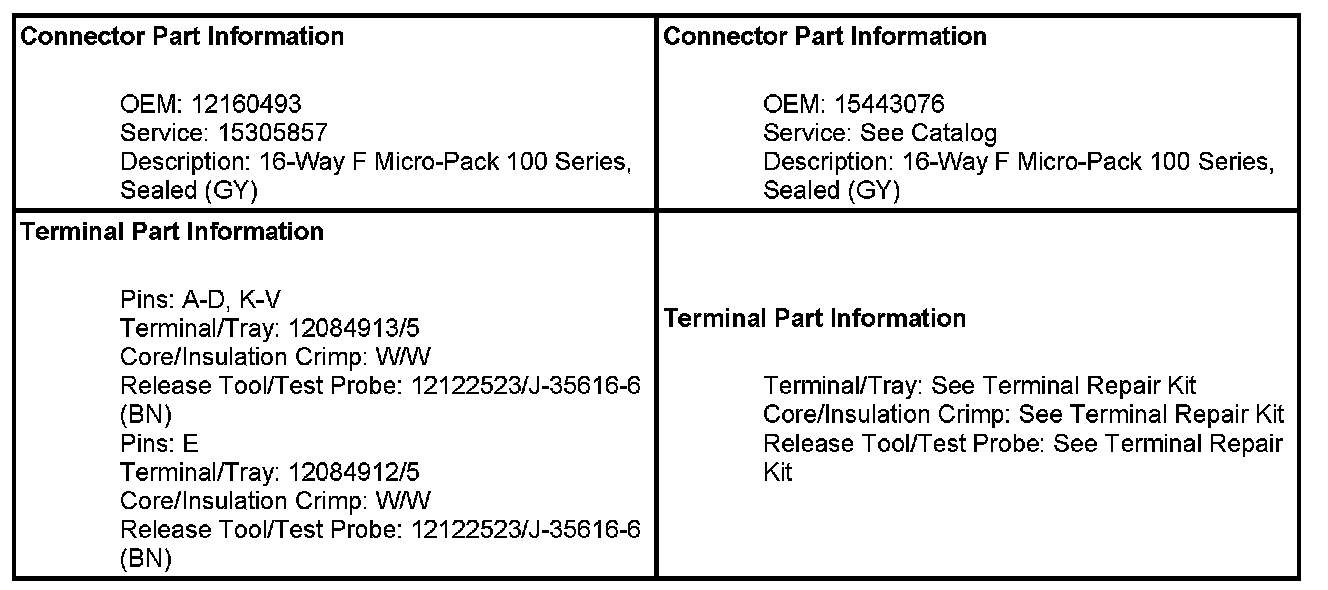

X175 Engine Harness to Transmission Harness (4L80-E)

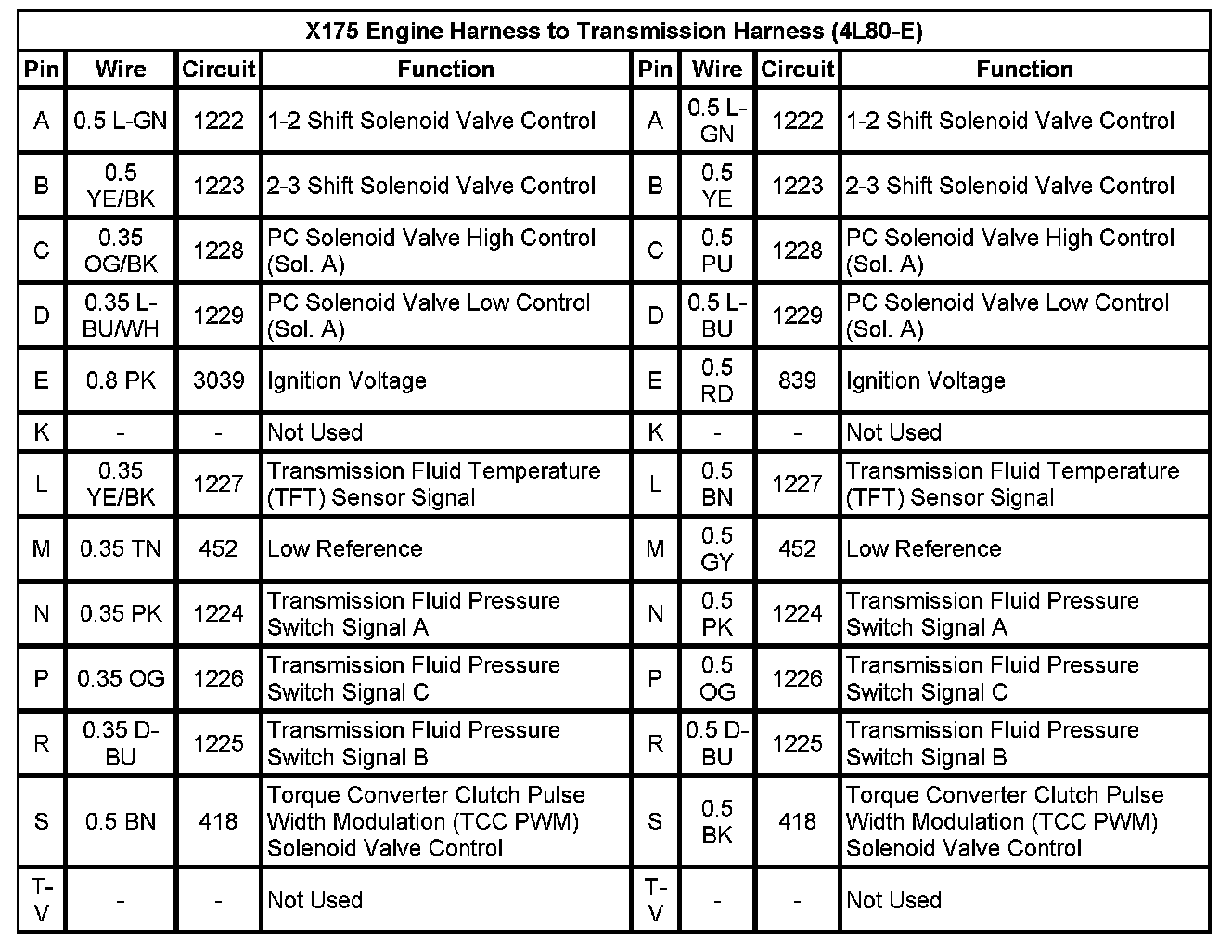

X175 Engine Harness To Transmission Harness (4L80-E) Pin A To V:
