X142

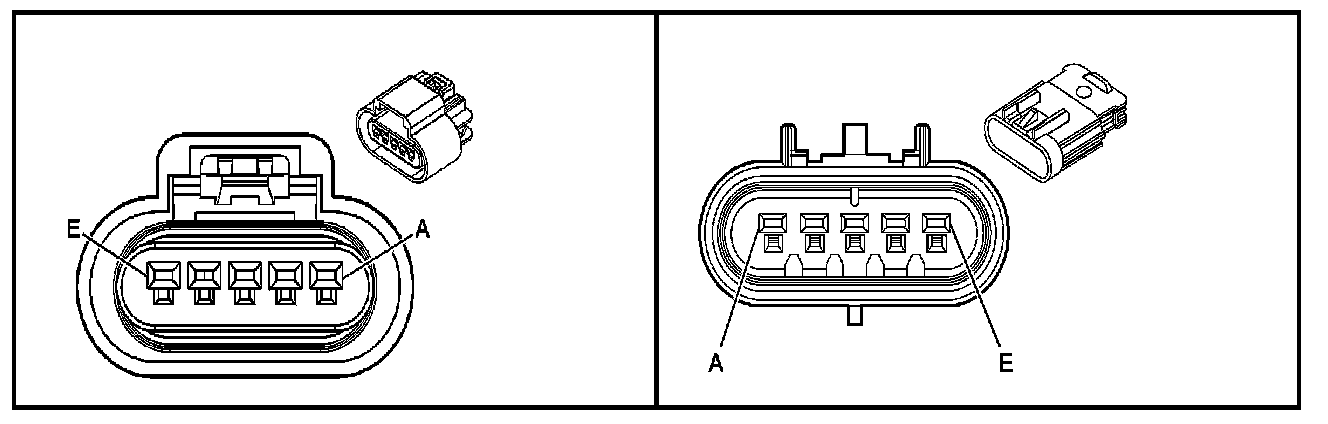

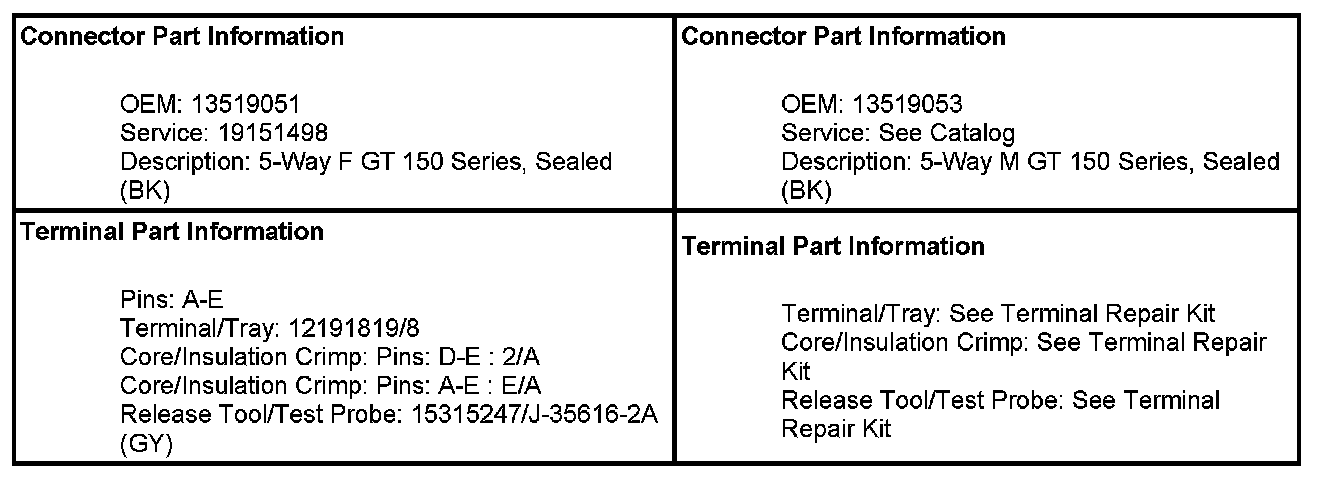

Inline Harness Connector End Views

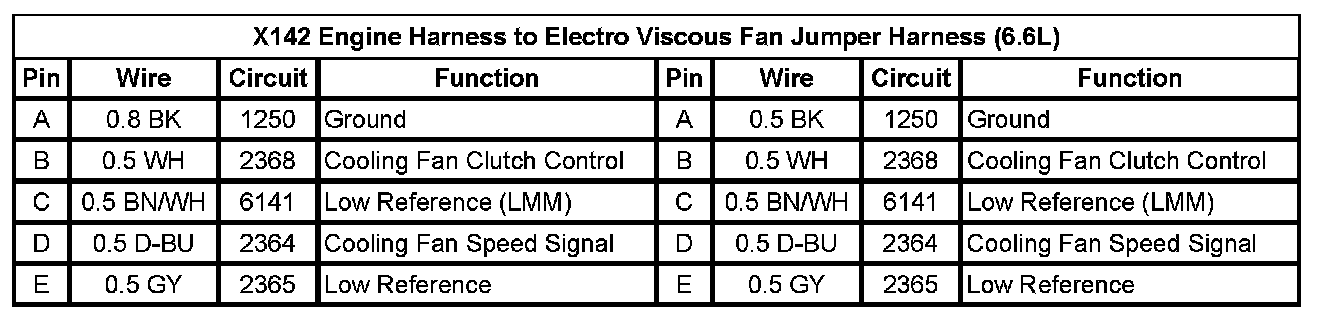

X142 Engine Harness to Electro Viscous Fan Jumper Harness (6.6L)









X142 Engine Harness To Electro Viscous Fan Jumper Harness (6.6L) Pin A To E:
