Home >> Chevy Truck >> 2008 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X100 - X199 >> X141

X141

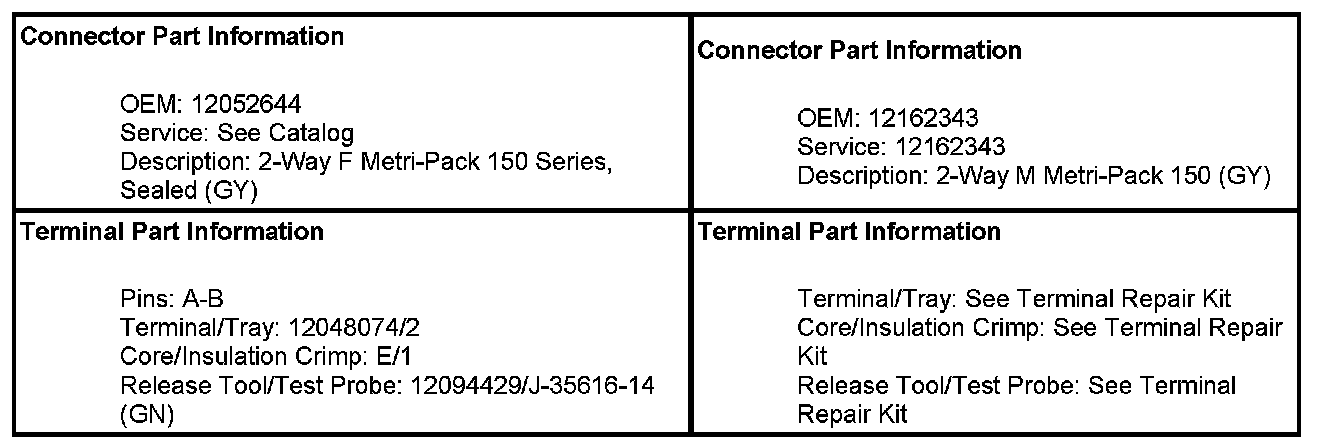

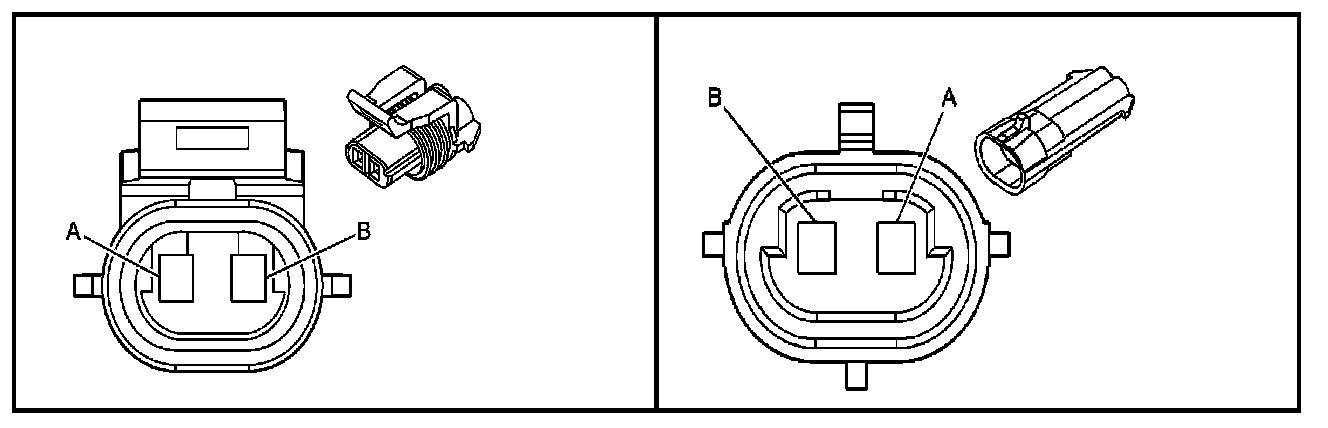

Inline Harness Connector End Views

X141 Instrument Panel Harness to Brake Fluid Alarm Switch Jumper Harness (UJ1)

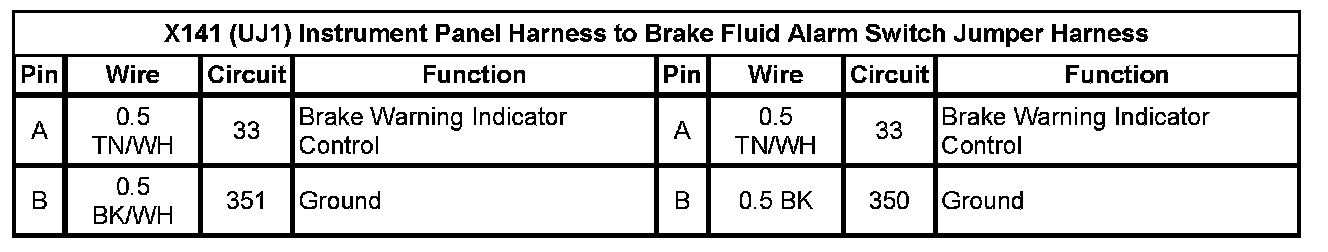

X141 (UJ1) Instrument Panel Harness To Brake Fluid Alarm Switch Jumper Harness Pin A To B:
