X112

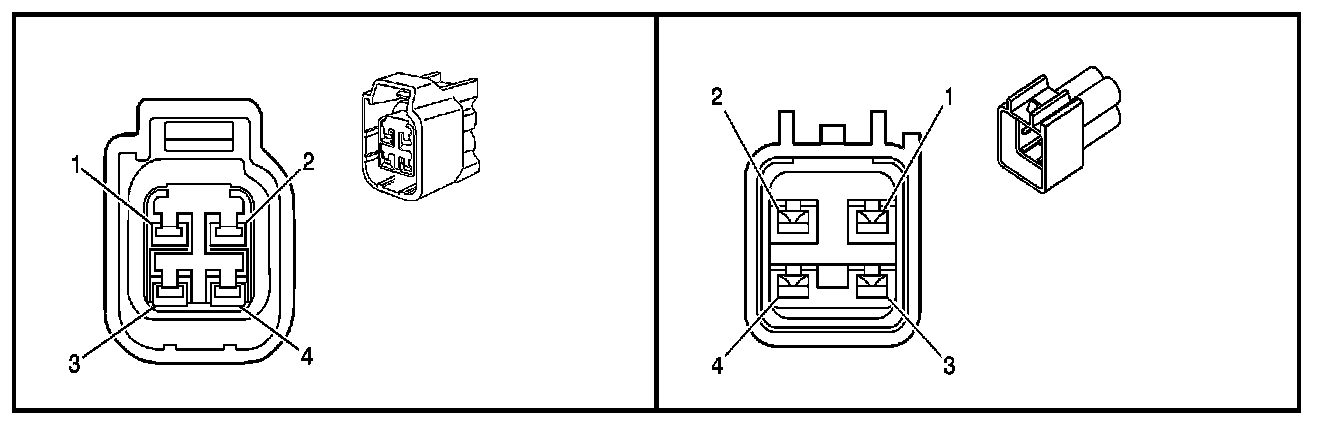

Inline Harness Connector End Views

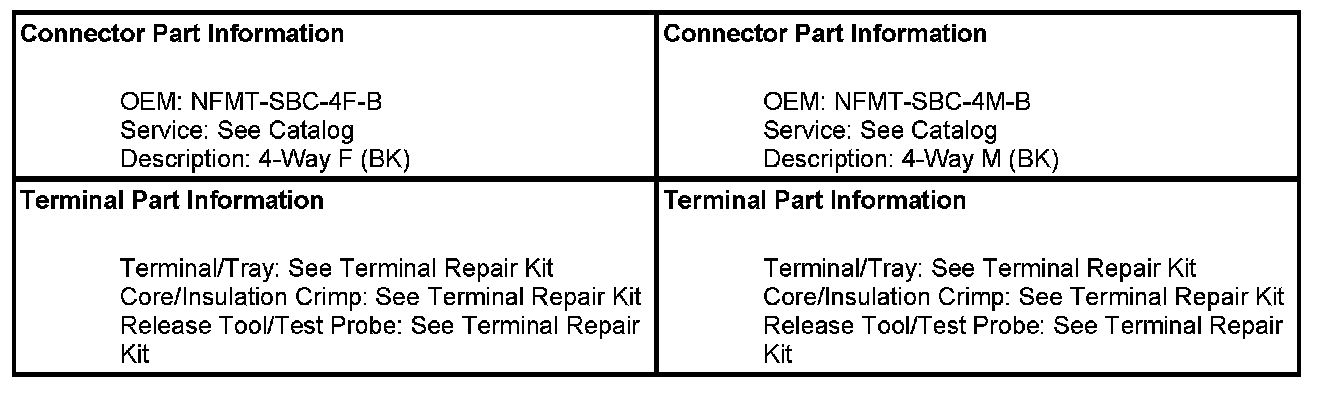

X112 Engine Harness to Fuel Rail Pressure Sensor Jumper Harness (6.6L)

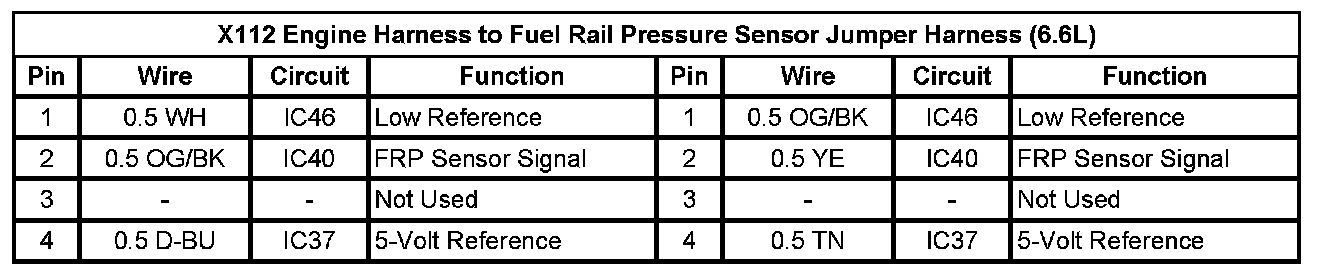

X112 Engine Harness To Fuel Rail Pressure Sensor Jumper Harness (6.6L) Pin 1 To 4:
