X111

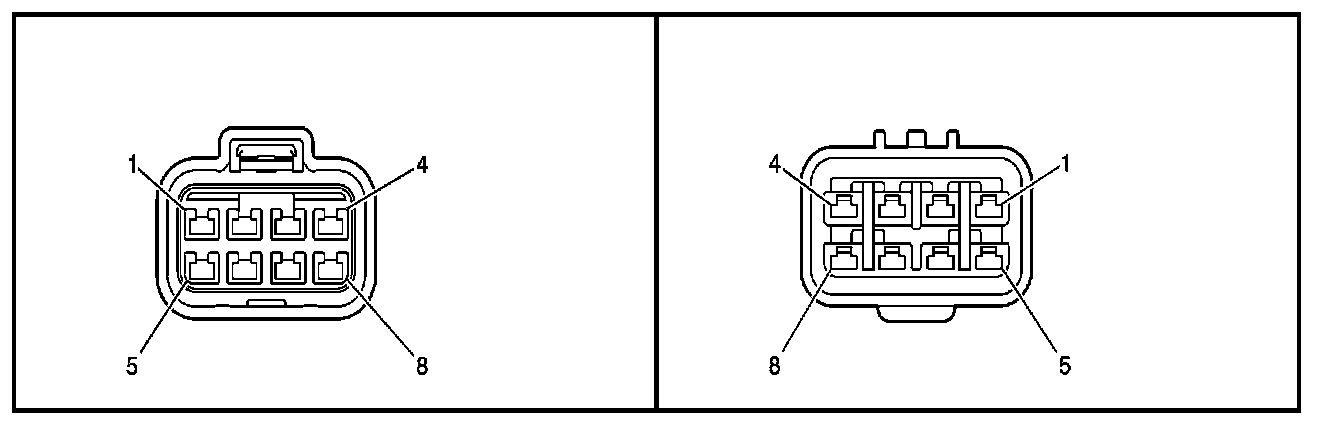

Inline Harness Connector End Views

X111 Engine Harness to Coolant Temp/Fuel Pressure Regulator Jumper Harness (6.6L)

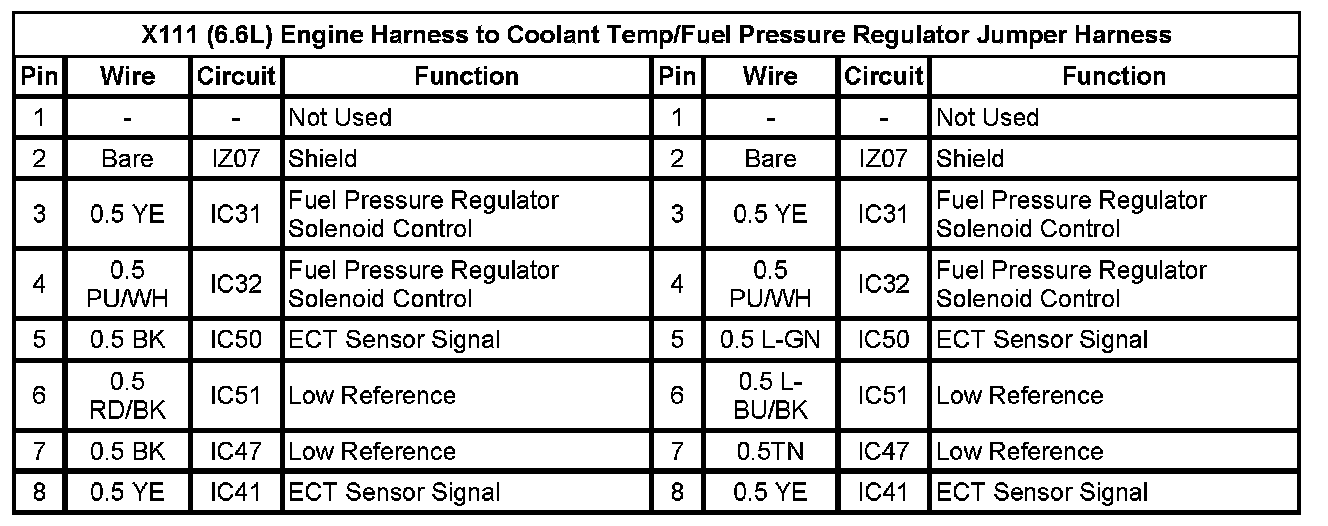

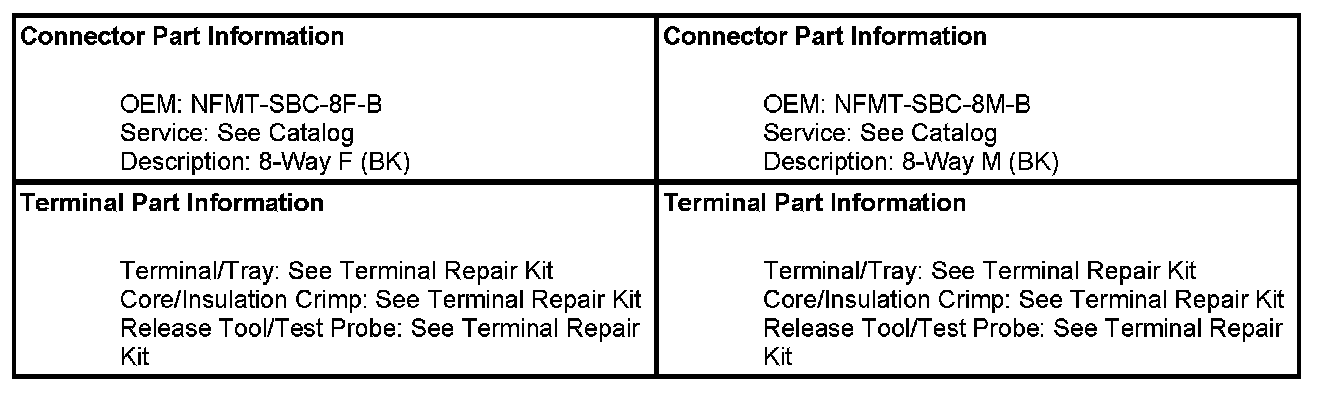

X111 (6.6L) Engine Harness To Coolant Temp/Fuel Pressure Regulator Jumper Harness Pin 1 To 8:
