X105
X105

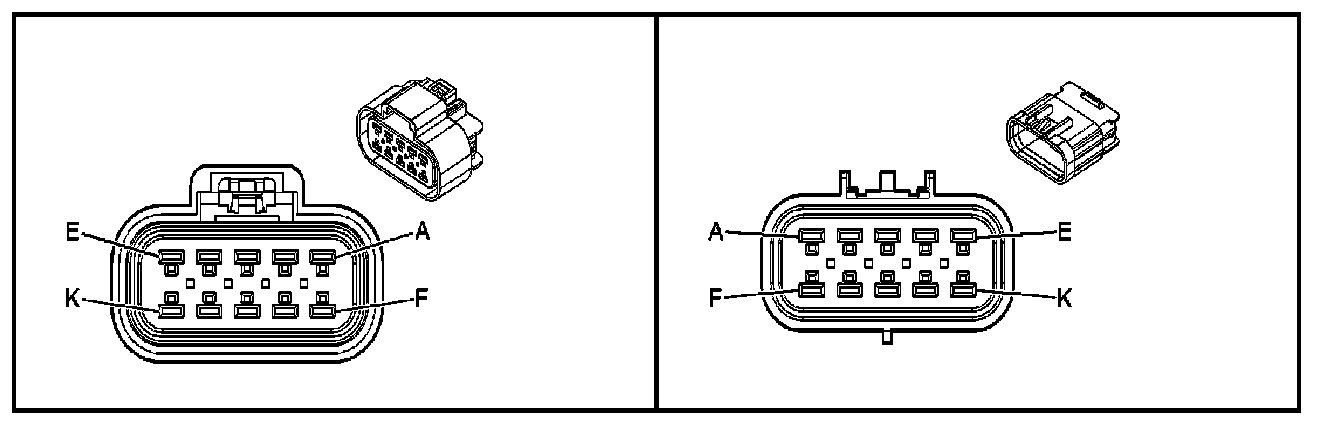

Inline Harness Connector End Views

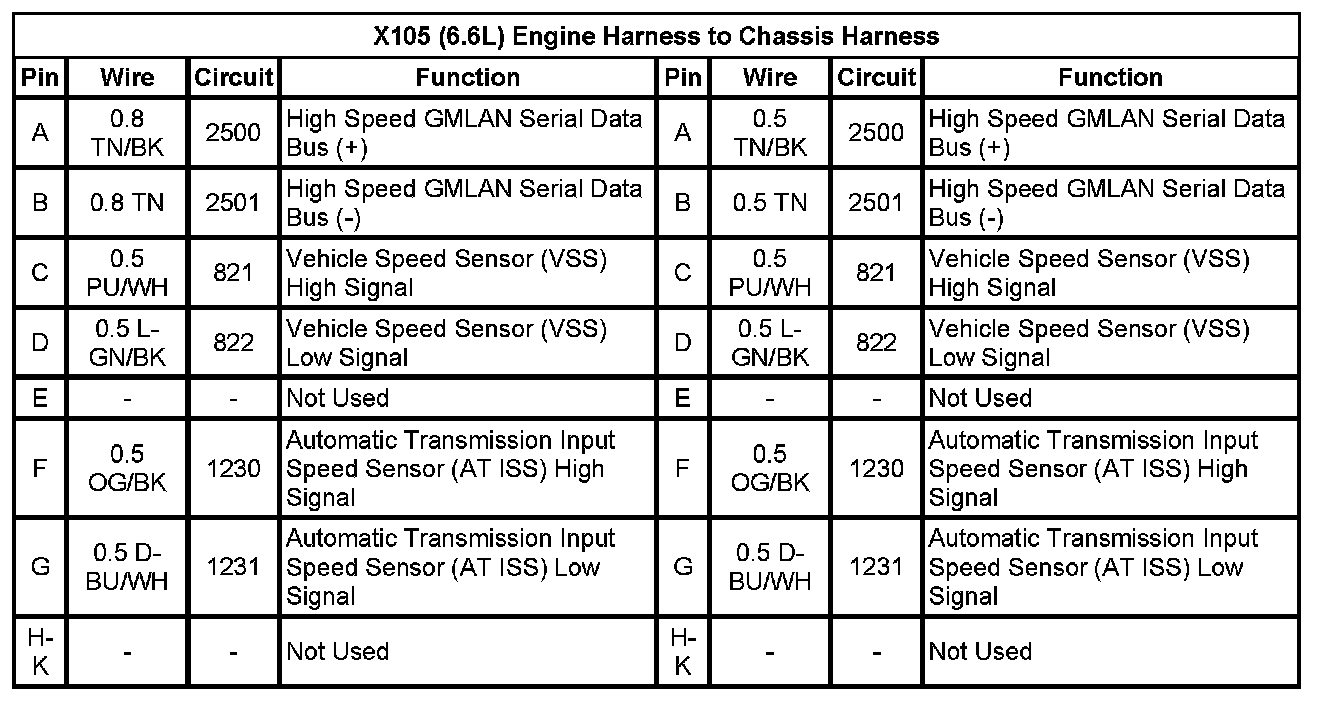

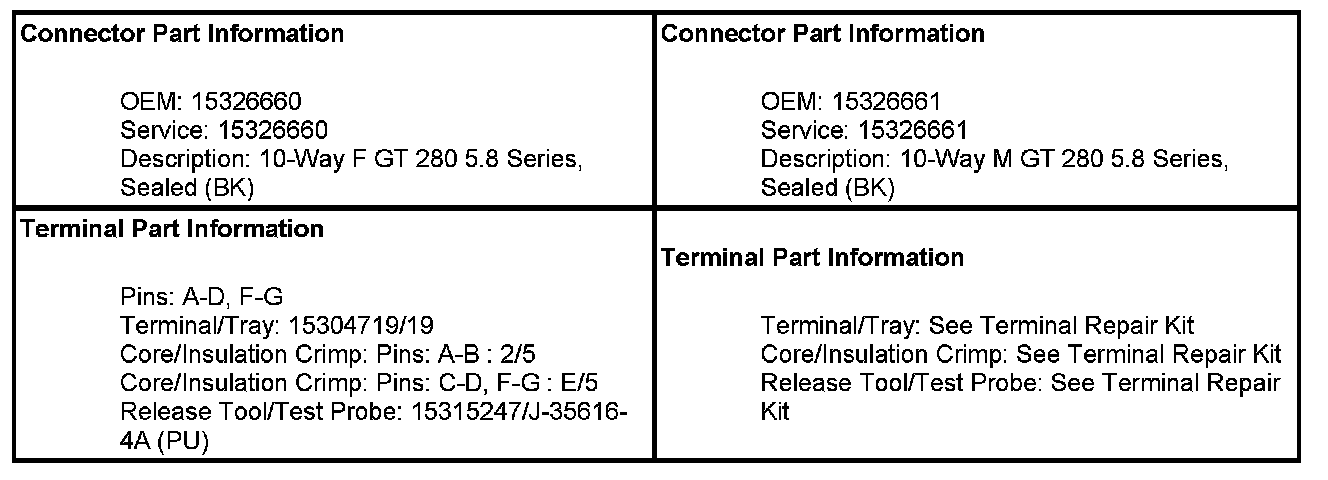

X105 (6.6L) Engine Harness to Chassis Harness
X105(6.6L) Engine Harness To Chassis Harness:
