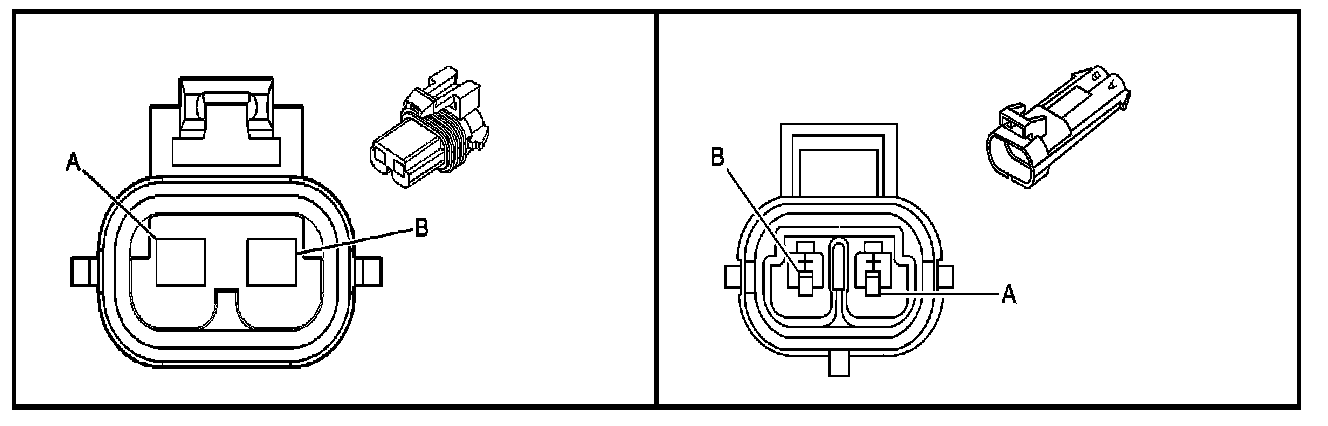

Inline Harness Connector End Views

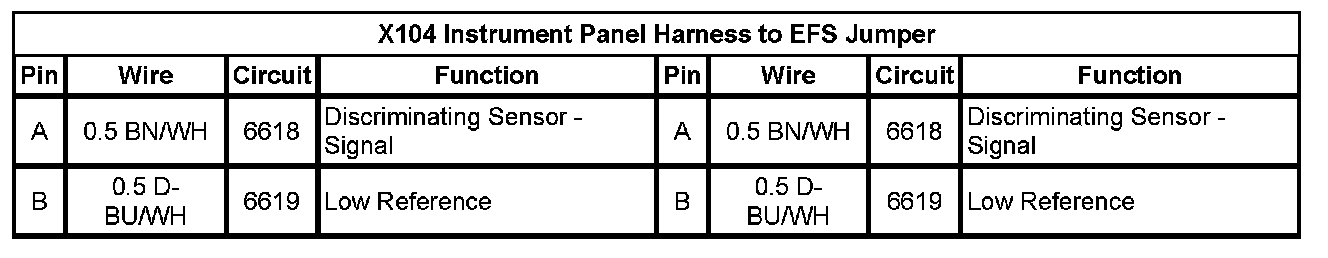

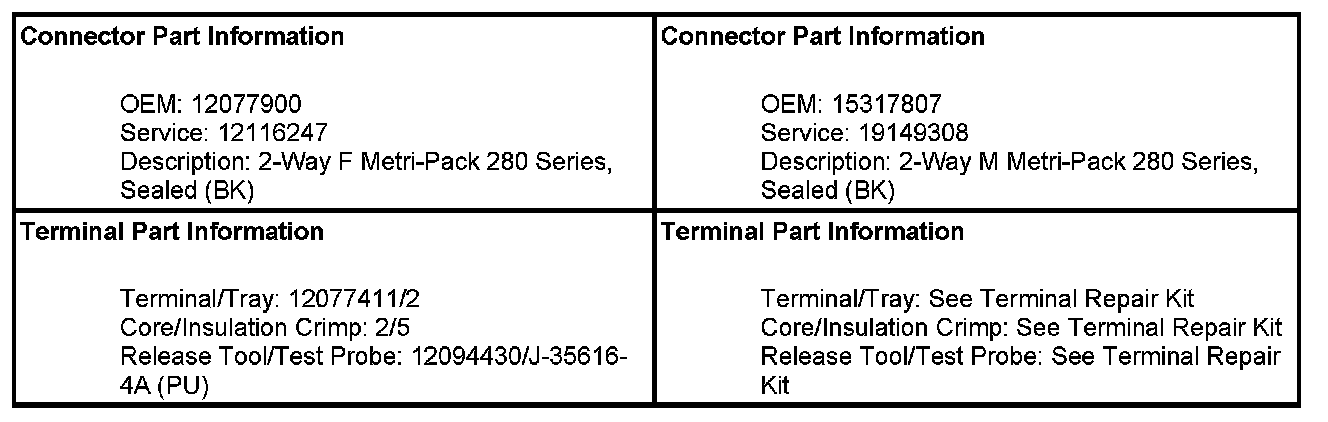

X104 Instrument Panel Harness to EFS Jumper
X104 Instrument Panel Harness To EFS Jumper Pin A To B:
