X101



Inline Harness Connector End Views

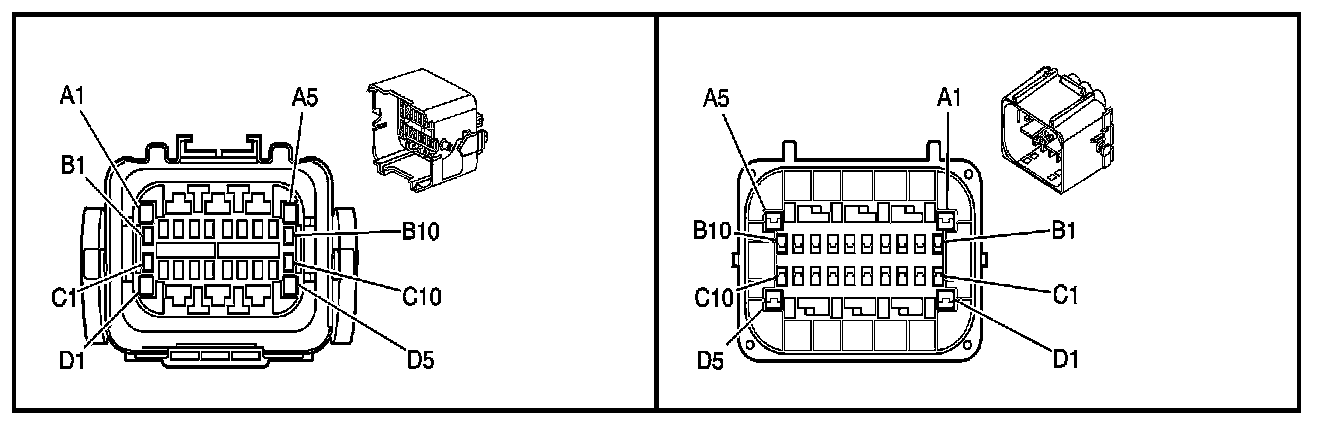

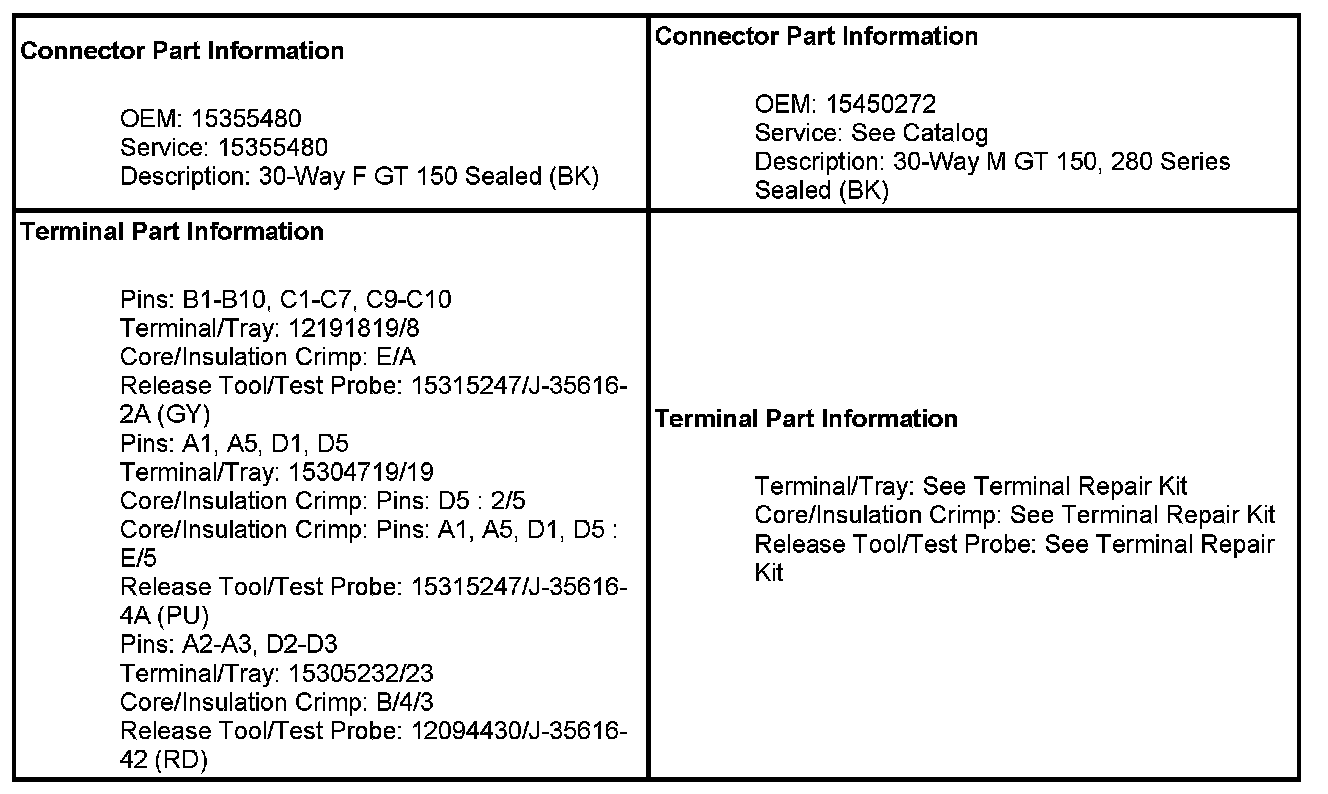

X101 Chassis Harness to Engine Harness (LMM)

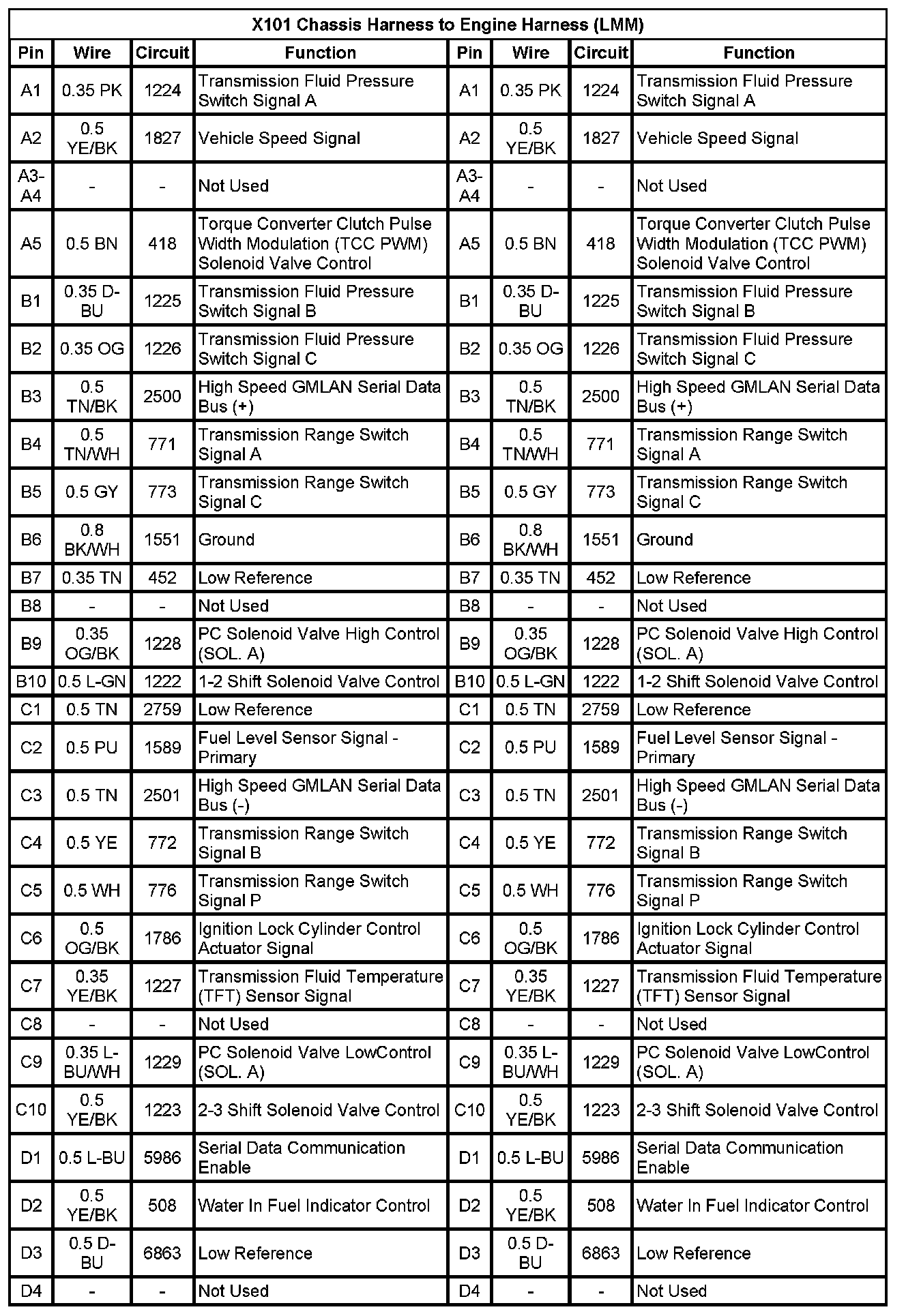

X101 Chassis Harness To Engine Harness (LMM) (Pin A1 To D4):

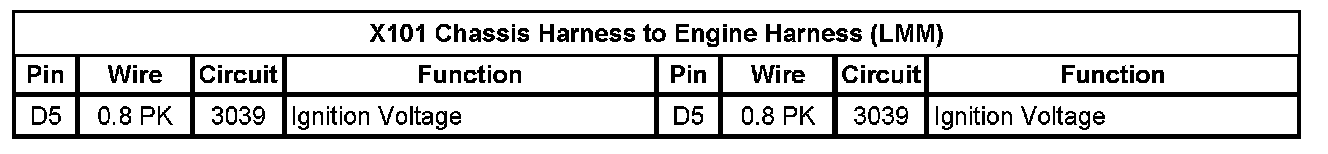

X101 Chassis Harness To Engine Harness (LMM) (Pin D5):
