Home >> Chevy Truck >> 2008 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Auxiliary Power Outlet >> Diagrams >> Connector Views

Connector Views

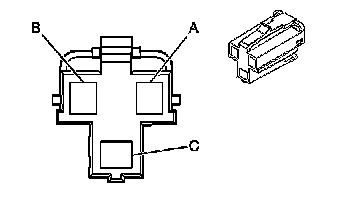

Component Connector End Views

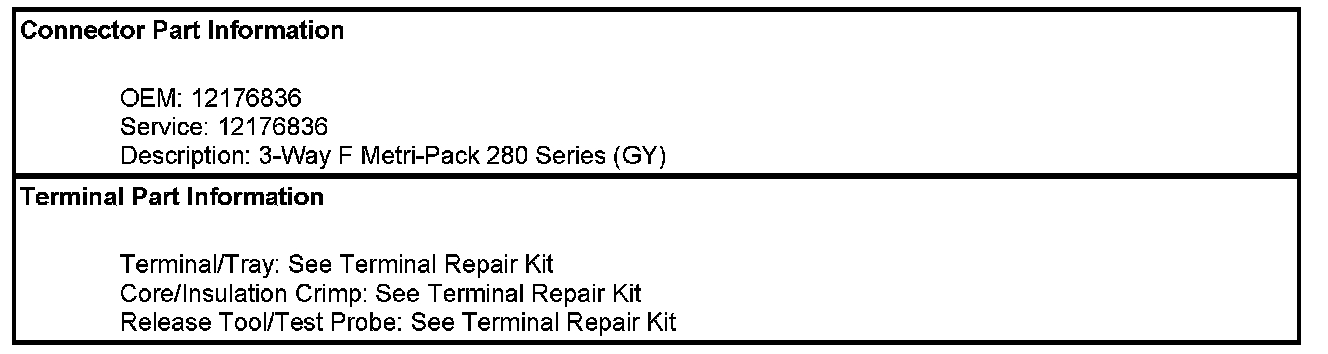

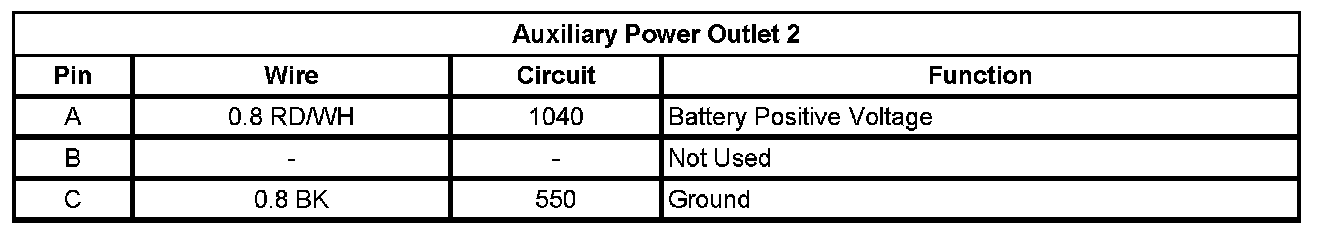

Auxiliary Power Outlet 2

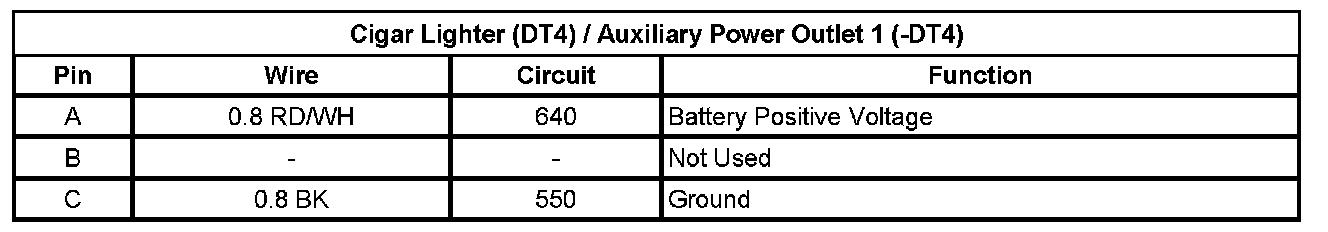

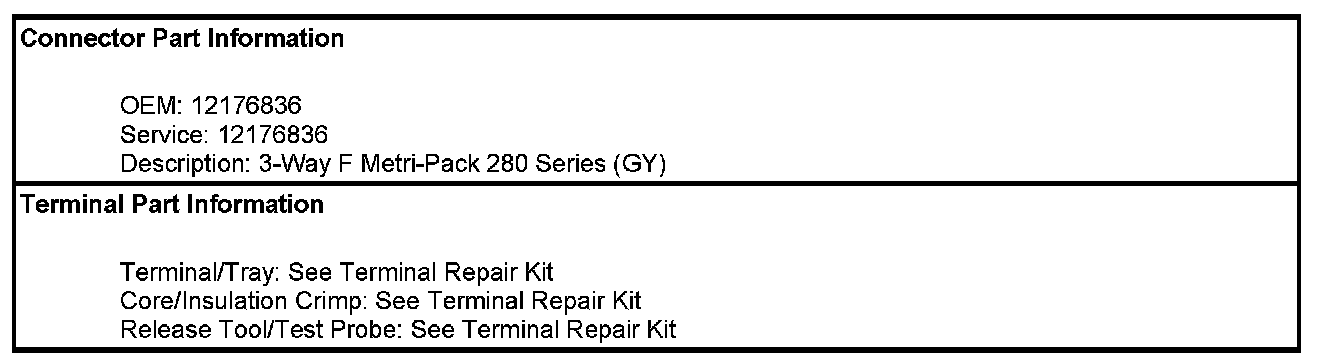

Cigar Lighter (DT4) / Auxiliary Power Outlet 1 (-DT4)
