Auxiliary Generator Bracket Replacement

Auxiliary Generator Bracket Replacement

Removal Procedure

Caution: Refer to Battery Disconnect Caution.

1. Remove the fan shroud.
2. Disconnect the auxiliary generator electrical connector.
3. Remove the drive belt.

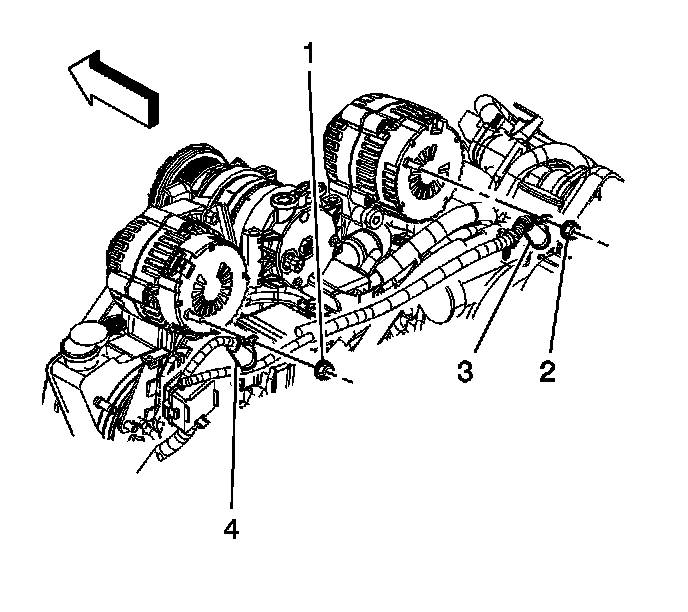

4. Remove the positive battery cable from the auxiliary generator, perform the following:

1. Slide the boot (4) down to access the terminal stud.
2. Remove the positive cable nut (1).
3. Remove the positive cable.




5. Remove the auxiliary generator bolts (3).
6. Remove the auxiliary generator (4).

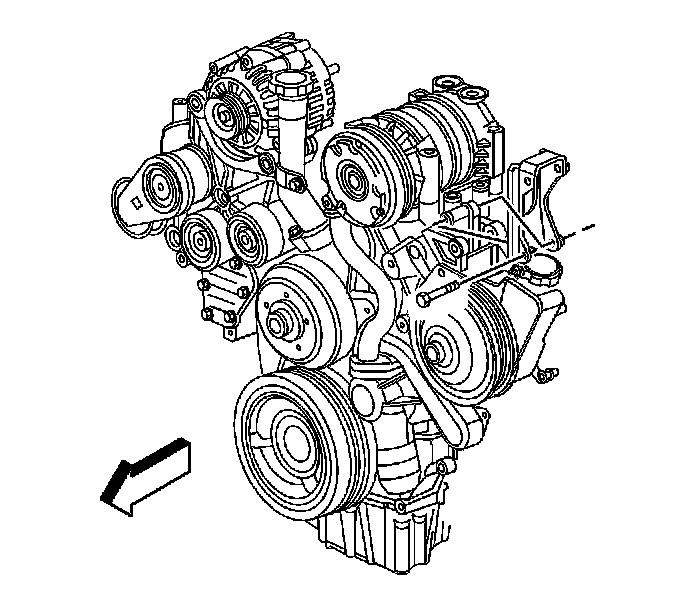

7. Remove the auxiliary generator bracket bolts.
8. Remove the auxiliary generator bracket.

Installation Procedure




1. Install the auxiliary generator bracket.

Notice: Refer to Fastener Notice.

2. Install the auxiliary generator bracket bolts.

Tighten the bolt to 50 N.m (37 lb ft).




3. Install the auxiliary generator (4).
4. Install the auxiliary generator bolts (3).

Tighten the bolt to 50 N.m (37 lb ft).




5. Install the positive cable to the auxiliary generator, perform the following:

1. Install the positive cable.
2. Install the positive cable nut (1).

Tighten the nut to 9 N.m (80 lb in).

3. Slide the boot (4) up to cover the terminal stud.

6. Install the drive belt.
7. Connect the auxiliary generator electrical connector (3).
8. Install the radiator fan shroud.
