Home >> Chevy Truck >> 2008 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 4L80-E/4L85-E Automatic Transmission >> Output Shaft Selective Thrust Washer Specifications

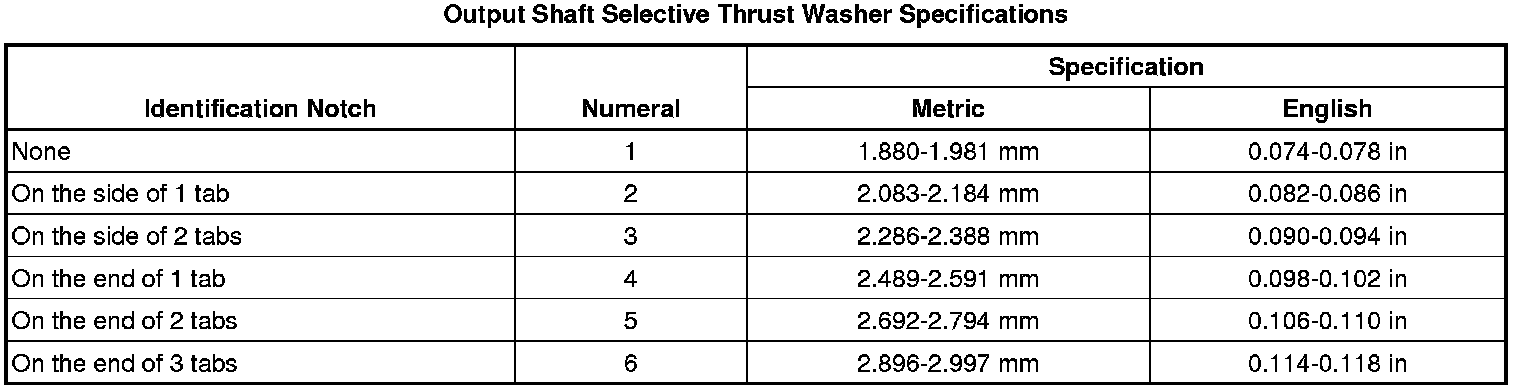

Output Shaft Selective Thrust Washer Specifications



Output Shaft Selective Thrust Washer Specifications
