Home >> Chevy Truck >> 2008 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - A/T >> Transmission Temperature Sensor/Switch >> Specifications >> 4L80-E/4L85-E - Automatic Transmission

4L80-E/4L85-E - Automatic Transmission

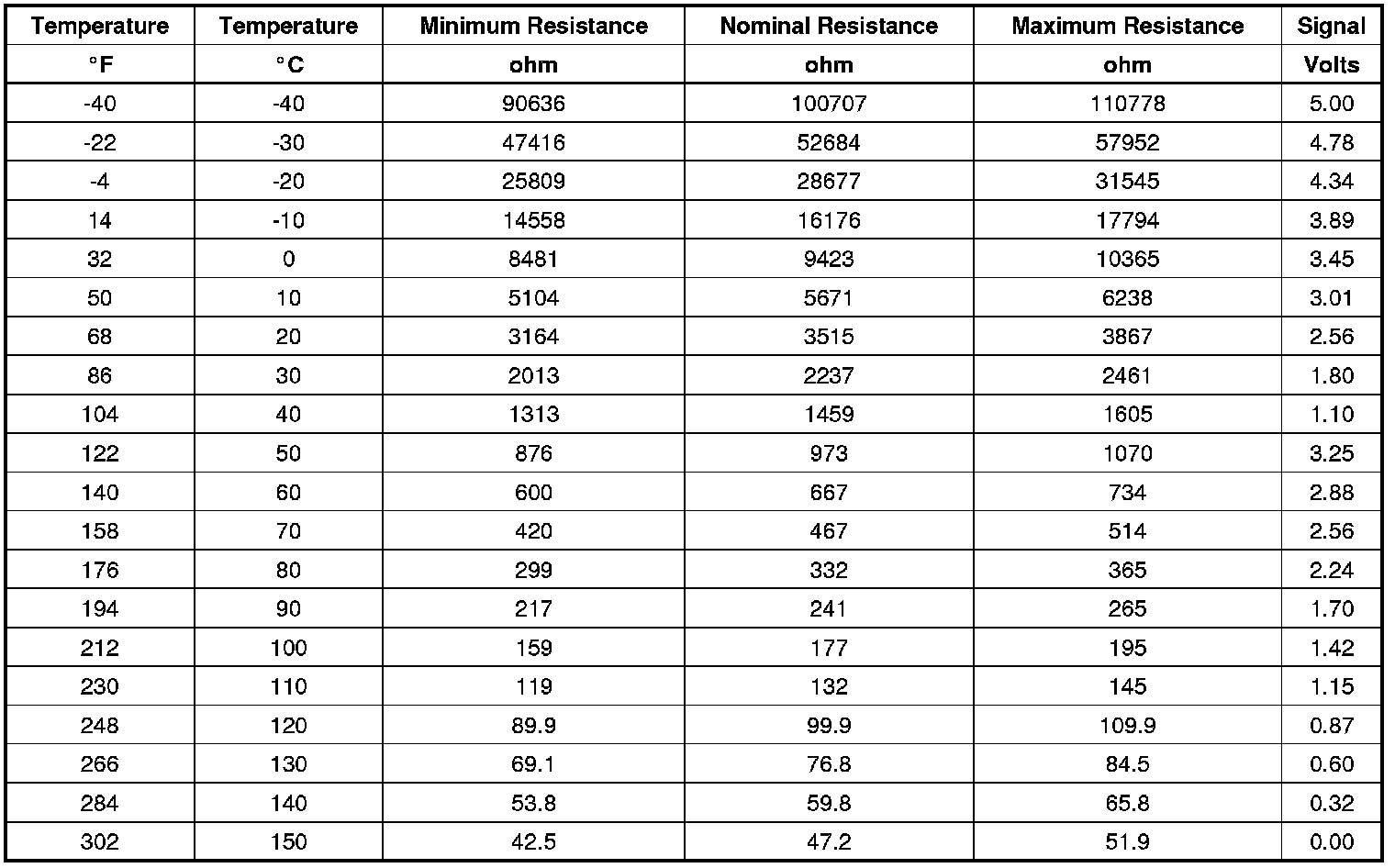

Transmission Fluid Temperature Sensor Specifications
