Transmission Speed Sensor: Diagrams



Component Connector End Views

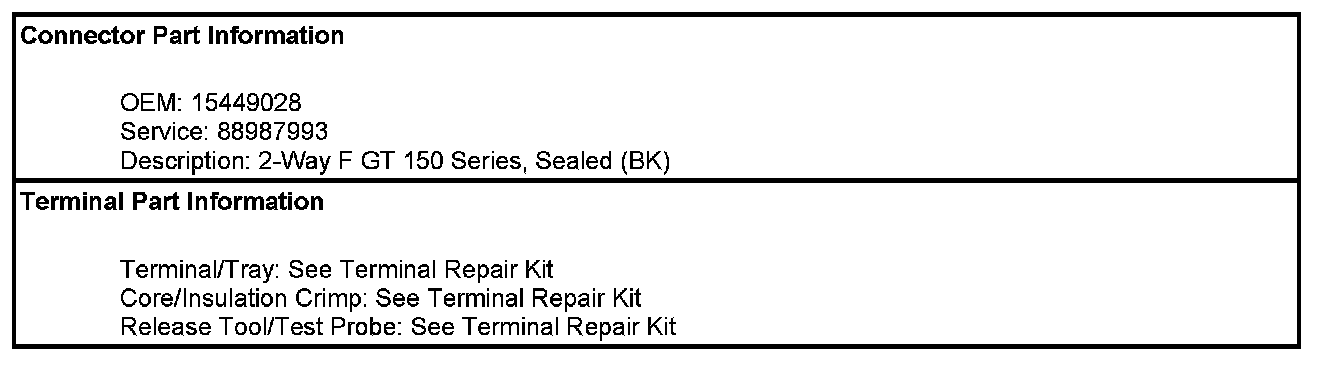

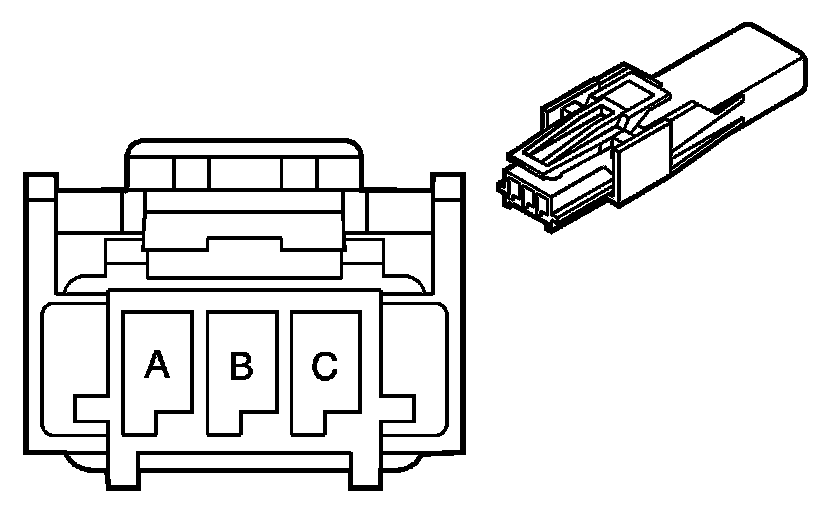

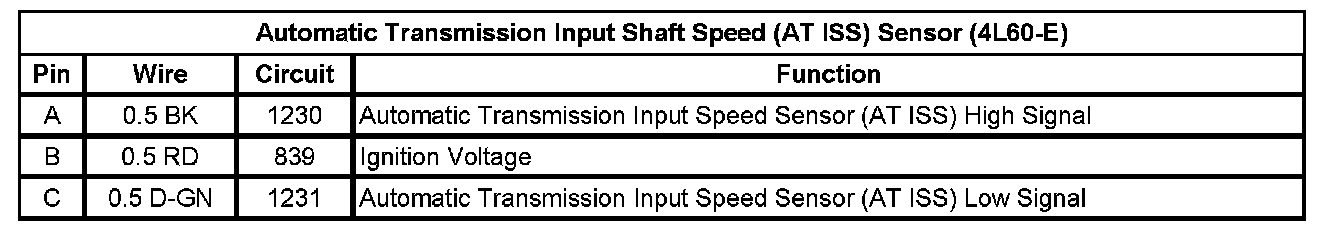

Automatic Transmission Input Shaft Speed (AT ISS) Sensor (4L60-E)

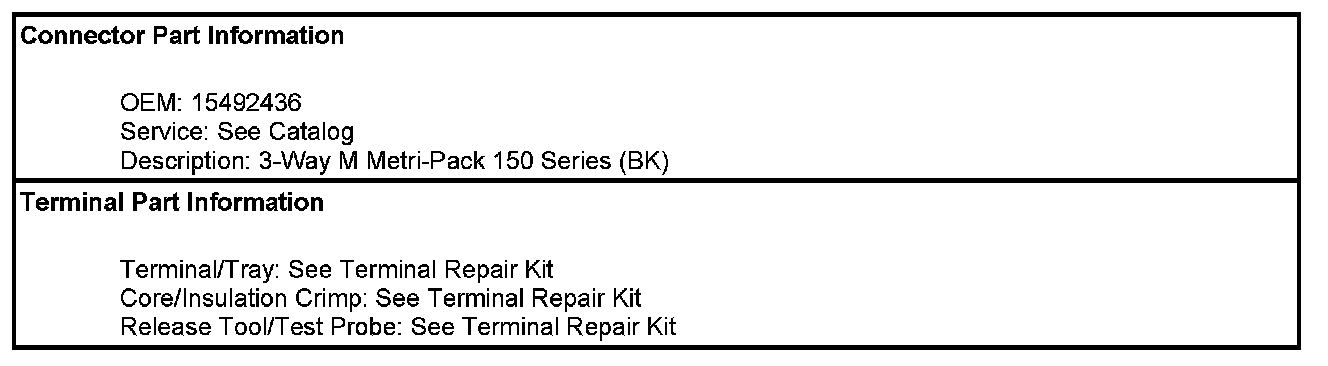

Automatic Transmission Input Shaft Speed (AT ISS) Sensor (4L80-E)
