Steering Angle Sensor: Diagrams

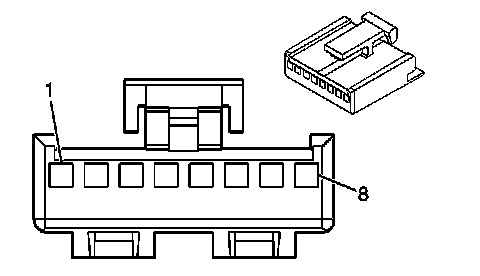

Component Connector End Views - Continued

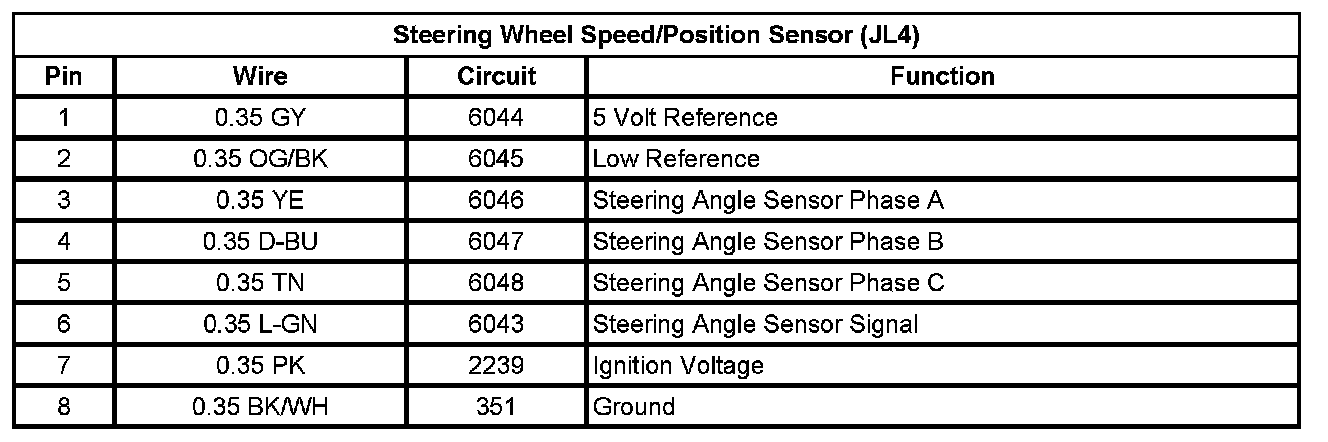

Steering Wheel Speed/Position Sensor (JL4)

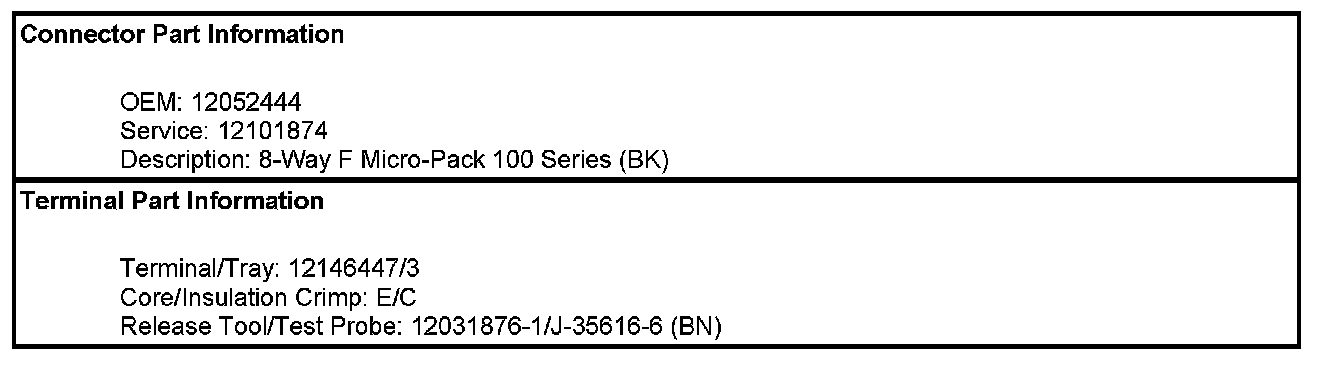

Steering Wheel Speed/Position Sensor:
