Oil Pressure Sensor: Locations

Powertrain Component Views

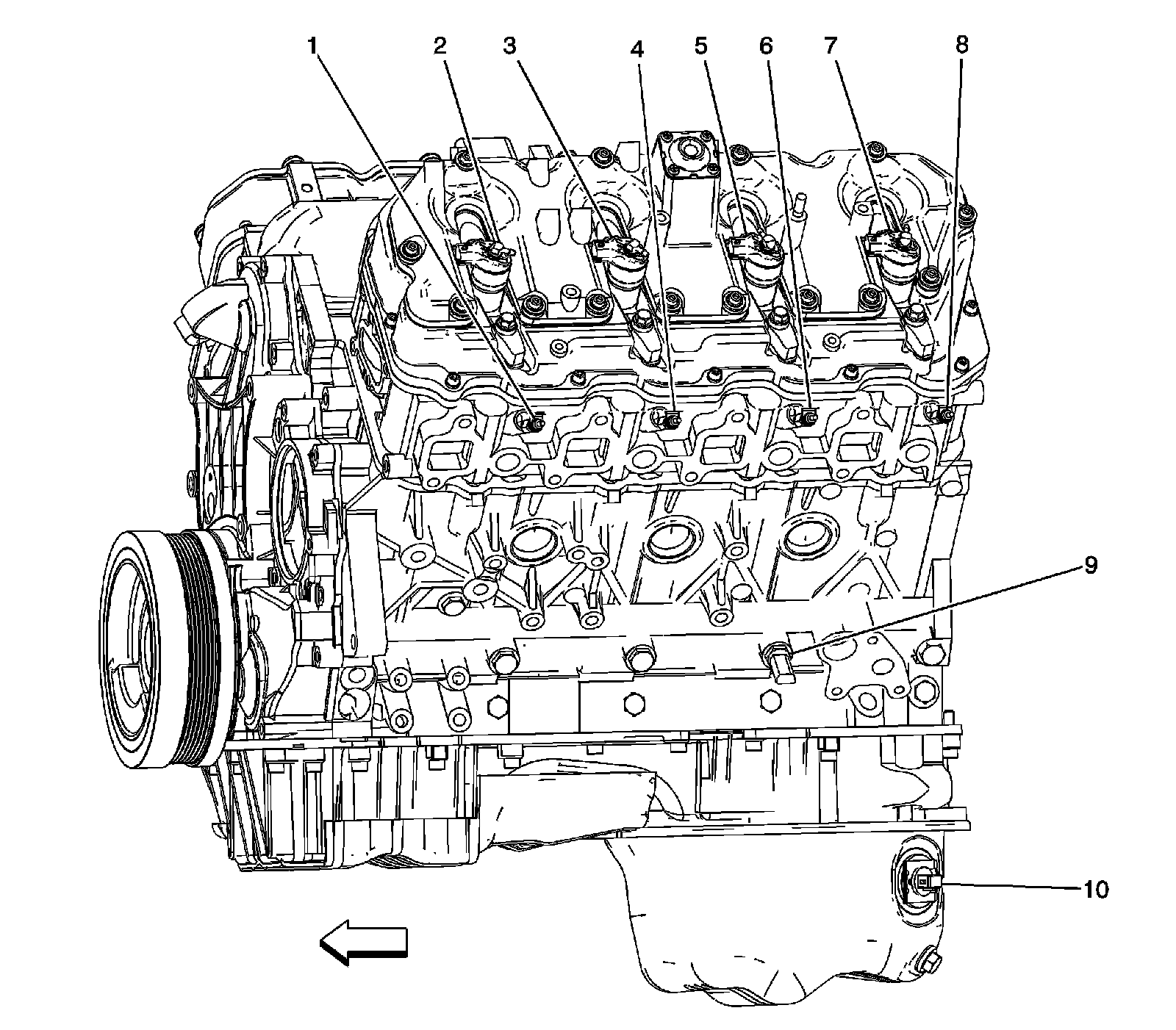

Left Side of the Engine (LBZ and LLY)




1 - Glow Plug 2
2 - Fuel Injector 2
3 - Fuel Injector 4
4 - Glow Plug 4
5 - Fuel Injector 6
6 - Glow Plug 6
7 - Fuel Injector 8
8 - Glow Plug 8
9 - Engine Oil Pressure (EOP) Sensor
10 - Engine Oil Level Switch

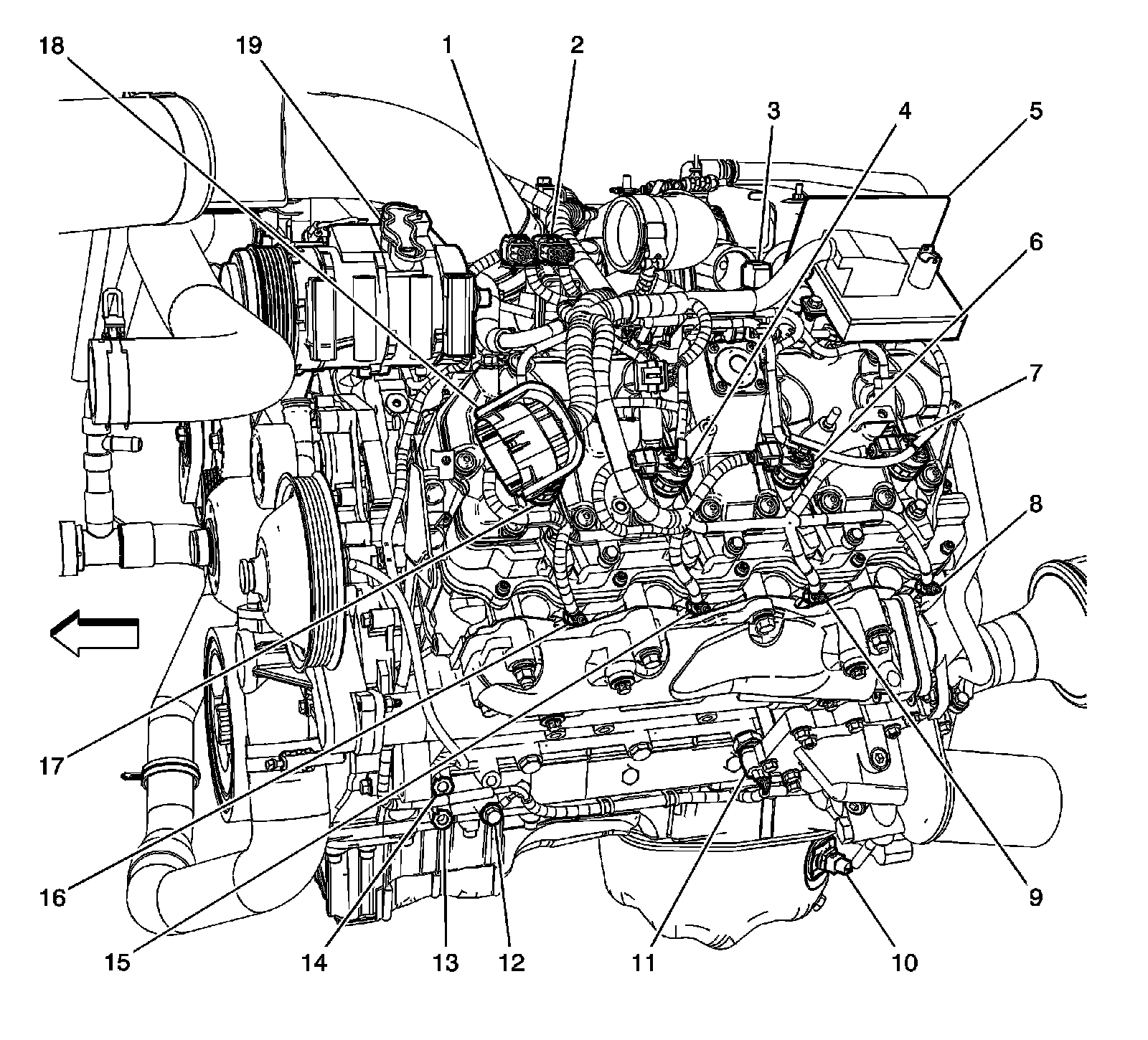

Left Side of the Engine (LMM)




1 - X110
2 - X111
3 - Intake Air Temperature (IAT) Sensor 2
4 - Fuel Injector 4
5 - Glow Plug Control Module (GPCM)
6 - Fuel Injector 6
7 - Fuel Injector 8
8 - Glow Plug 8
9 - Glow Plug 6
10 - Engine Oil Level Switch
11 - Engine Oil Pressure (EOP) Sensor
12 - G107
13 - G102
14 - G103
15 - Glow Plug 4
16 - Glow Plug 2
17 - Fuel Injector 2
18 - X101
19 - A/C Compressor
