Parking Brake Warning Switch: Service and Repair

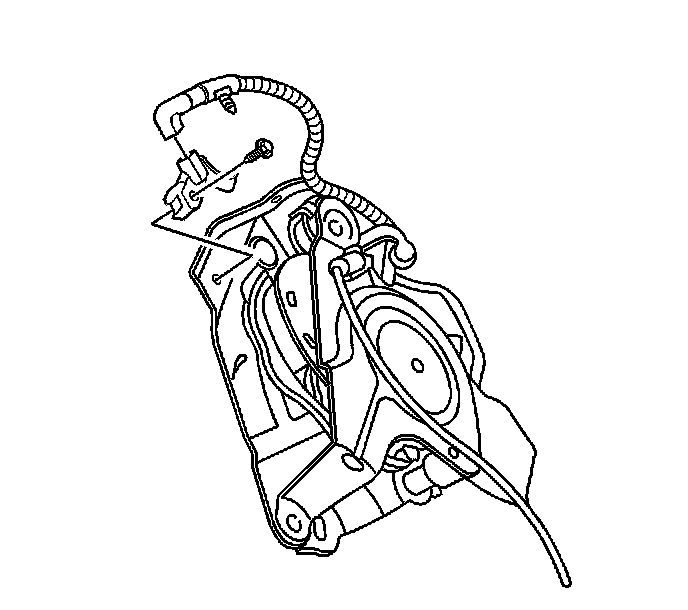

Parking Brake Indicator Switch Replacement

Removal Procedure

1. Remove the left trim panel. Refer to Body Hinge Pillar Trim Panel Replacement .




2. Remove the electrical connector.
3. Remove the screw from the switch.
4. Remove the indicator switch from the vehicle.



Installation Procedure





1. Connect the indicator switch to the vehicle.

Notice: Refer to Fastener Notice .

2. Install the screw to the switch.

Tighten the indicator switch retaining screw to 4 N.m (35 lb in).

3. Install the electrical connector.
4. Install the left trim panel. Refer to Body Hinge Pillar Trim Panel Replacement .
