Wheel Speed Sensor: Diagrams

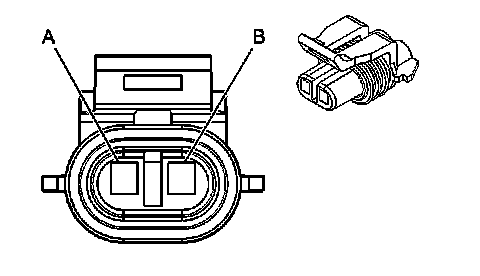

Component Connector End Views - Continued

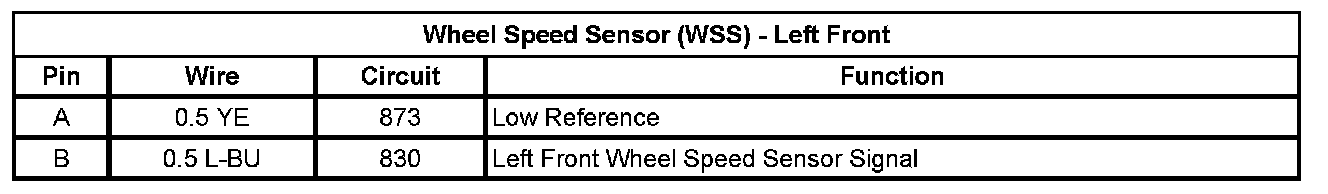

Wheel Speed Sensor (WSS) - Left Front

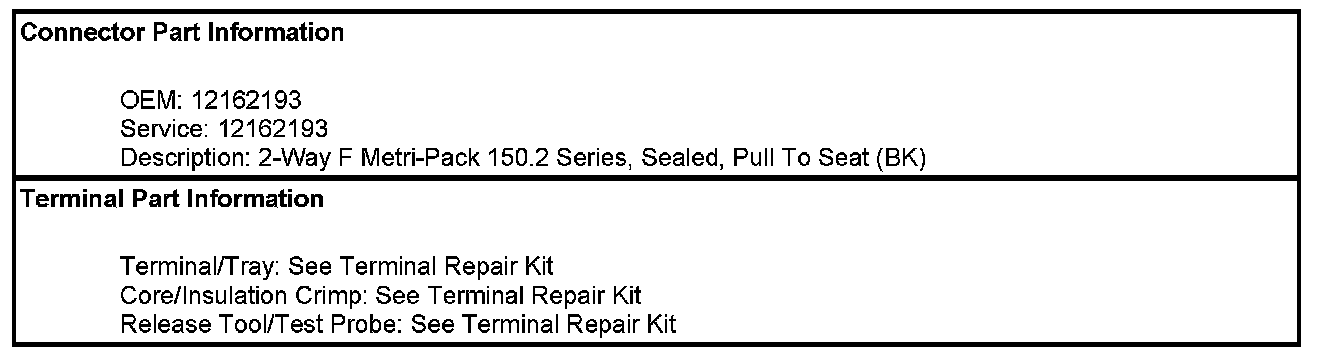

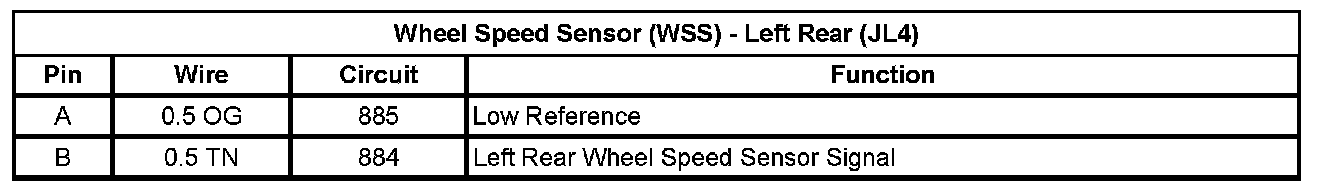

Wheel Speed Sensor (WSS) - Left Rear (JL4)

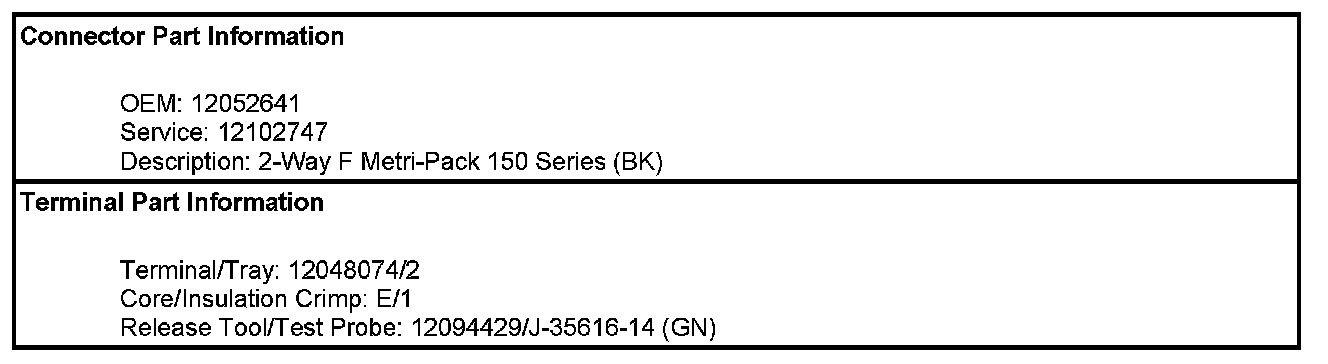

Wheel Speed Sensor (WSS) - Right Front

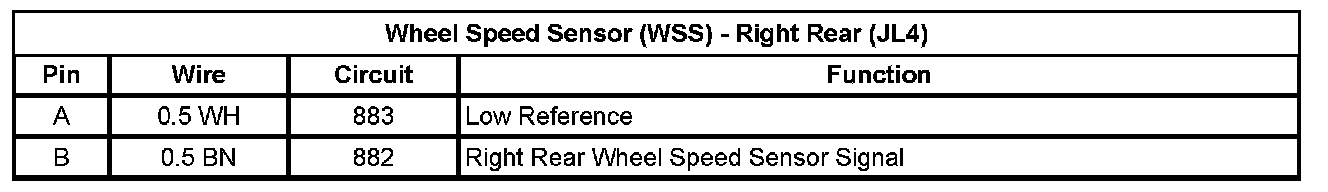

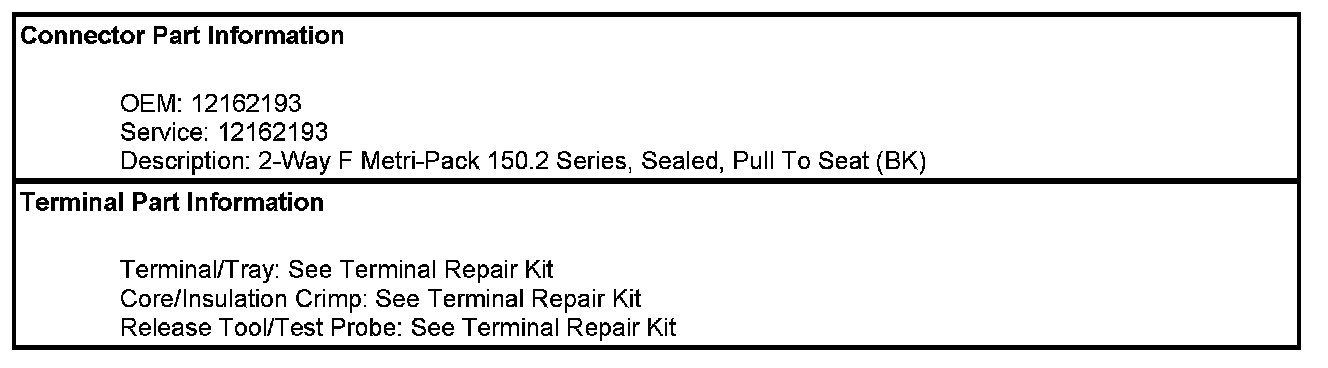

Wheel Speed Sensor (WSS) - Right Rear (JL4)
