Blower Motor Relay: Diagrams

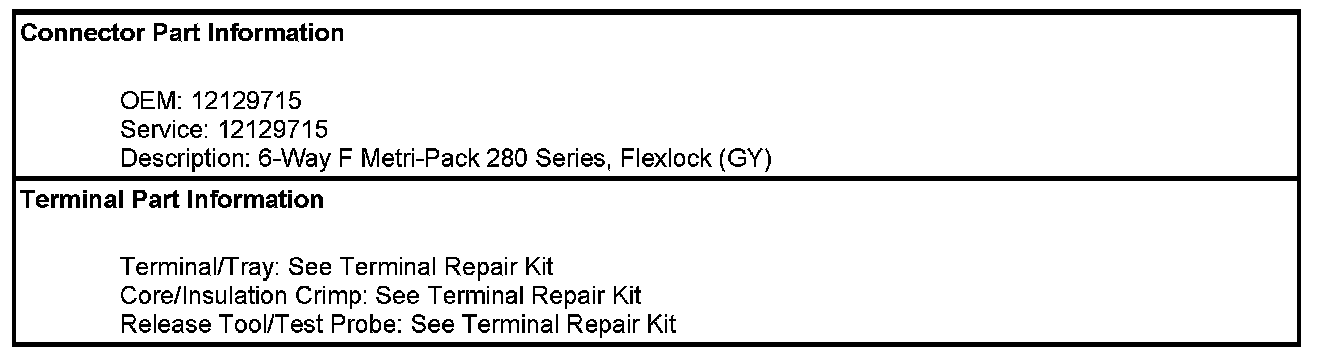

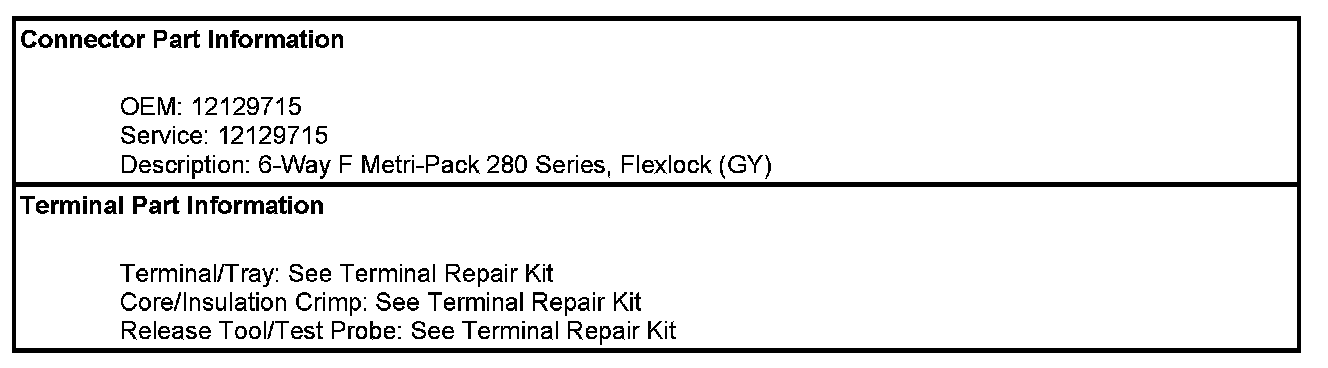

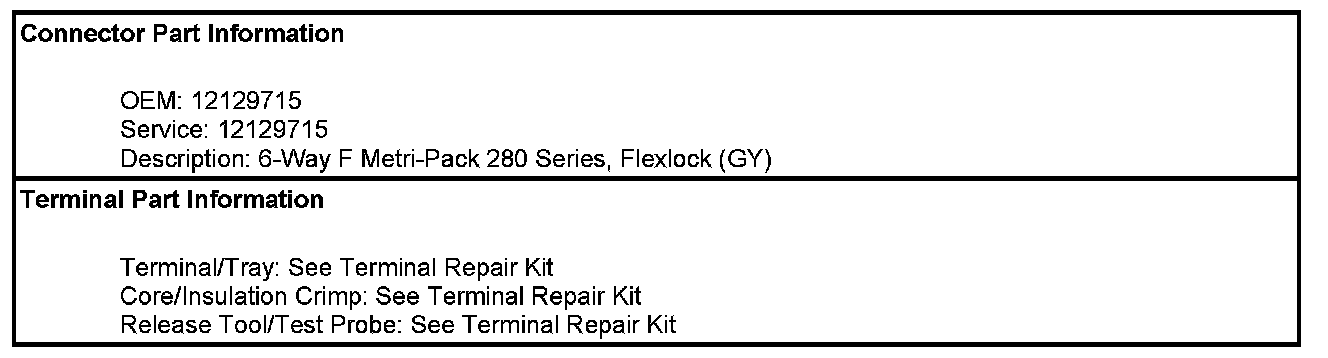

Component Connector End Views

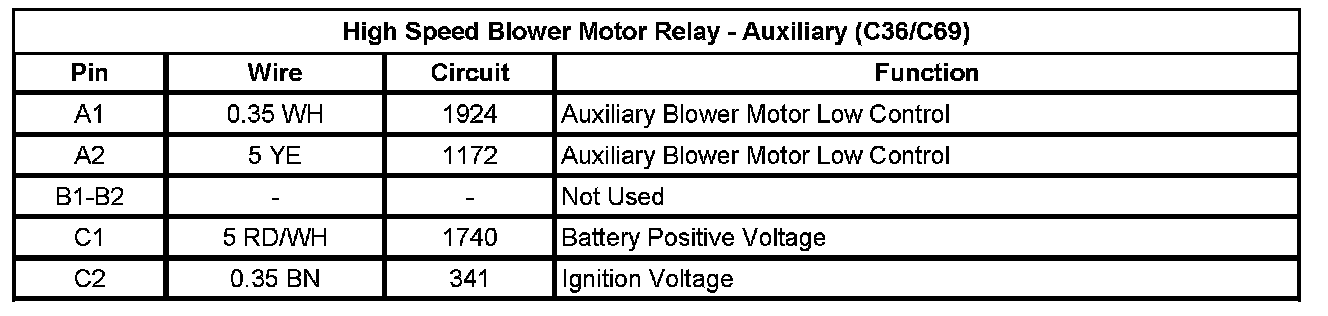

High Speed Blower Motor Relay - Auxiliary (C36/C69)

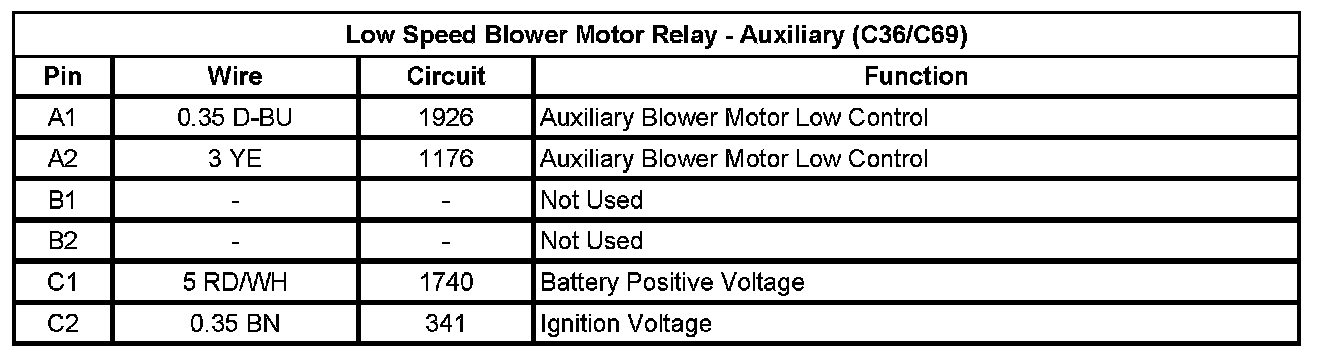

Low Speed Blower Motor Relay - Auxiliary (C36/C69)

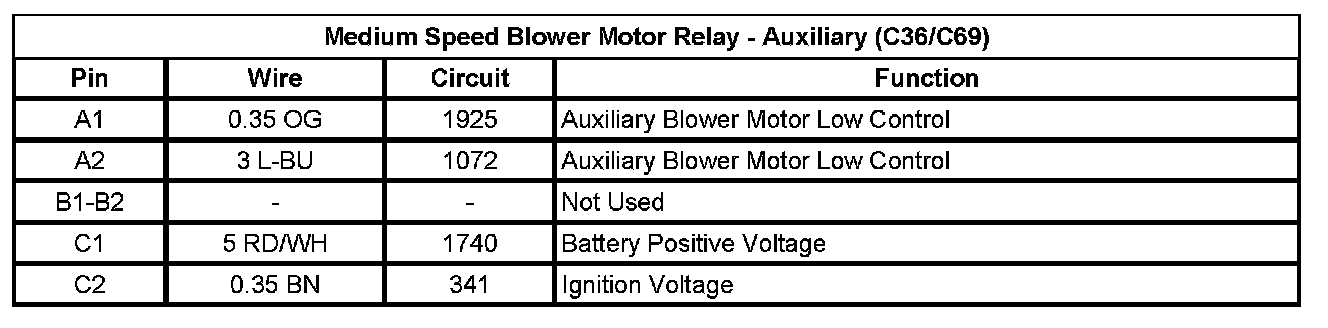

Medium Speed Blower Motor Relay - Auxiliary (C36/C69)
