4L60-E/4L65-E/4L70-E Automatic Transmission

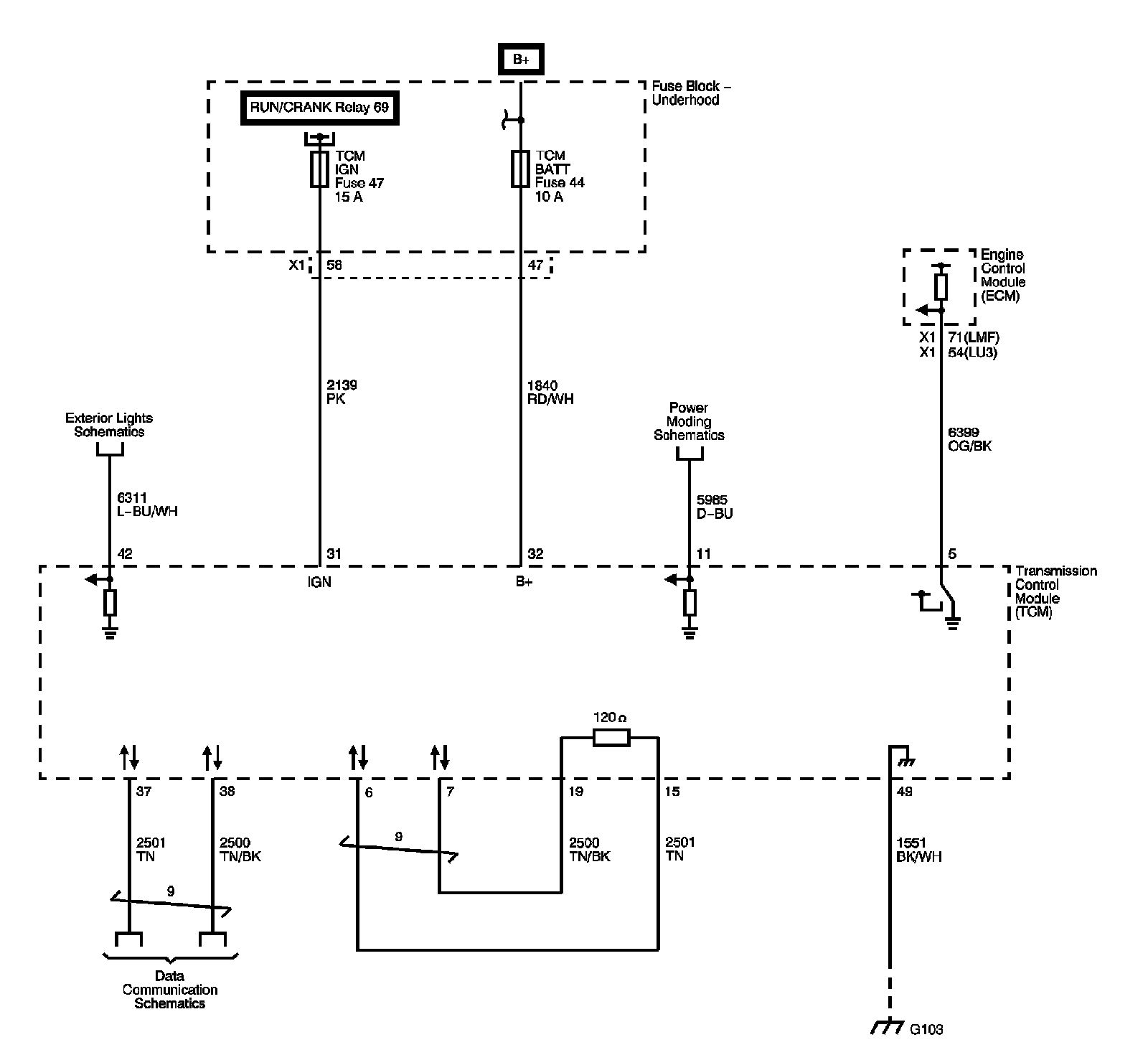

Module Power, Ground and Serial Data

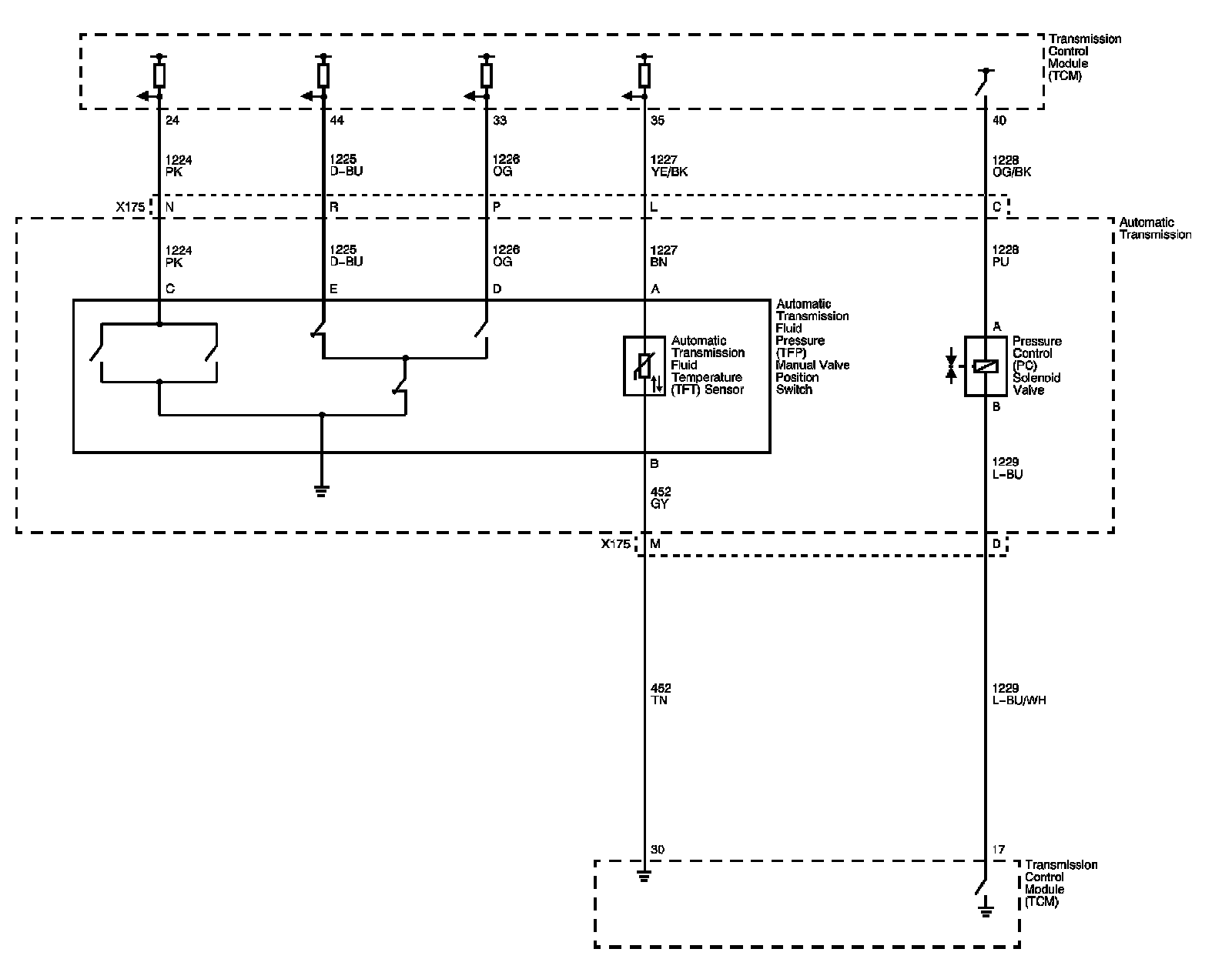

Pressure and Temperature Controls

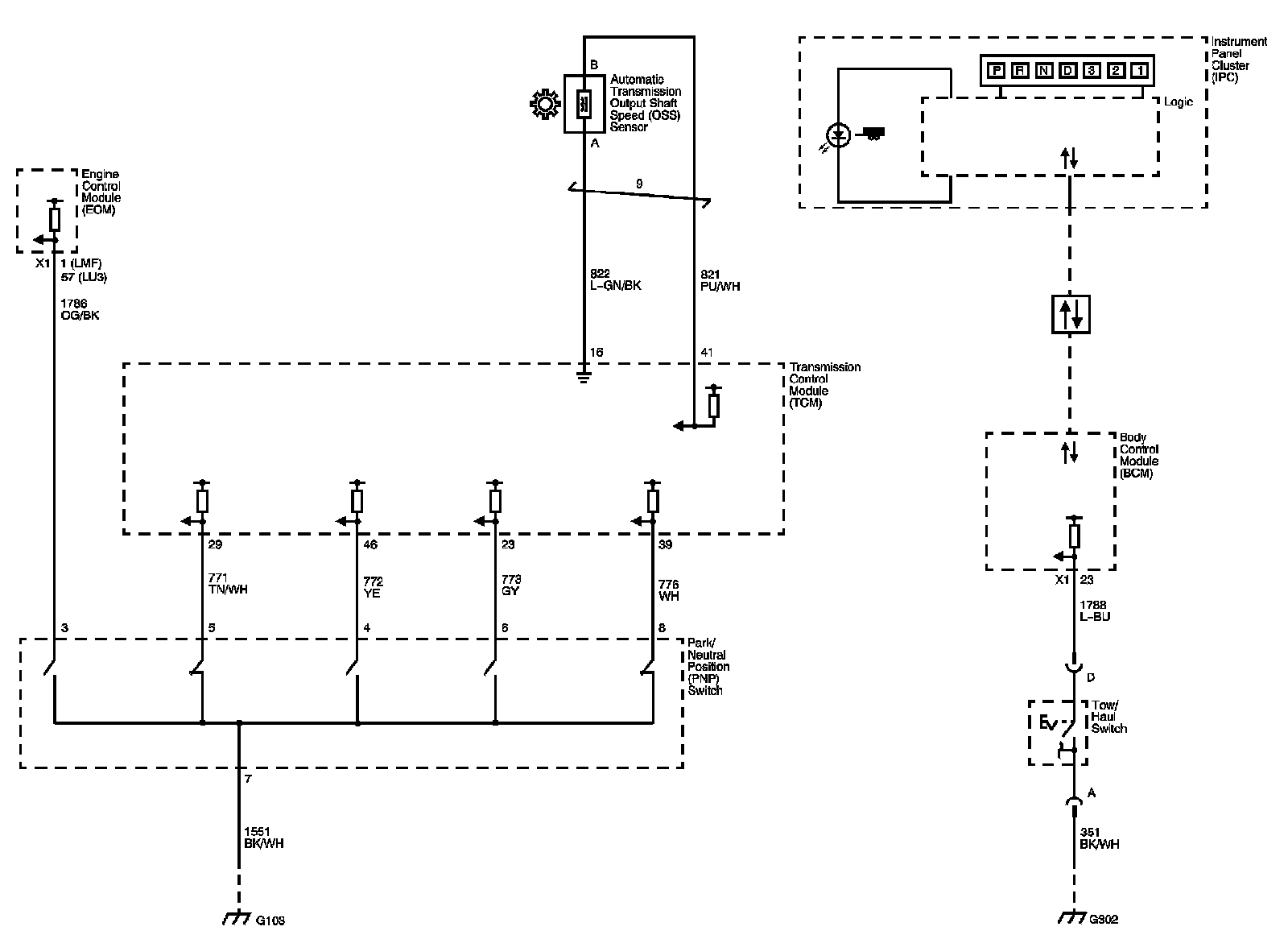

PNP Signals, VSS Signal and Tow Haul Signal

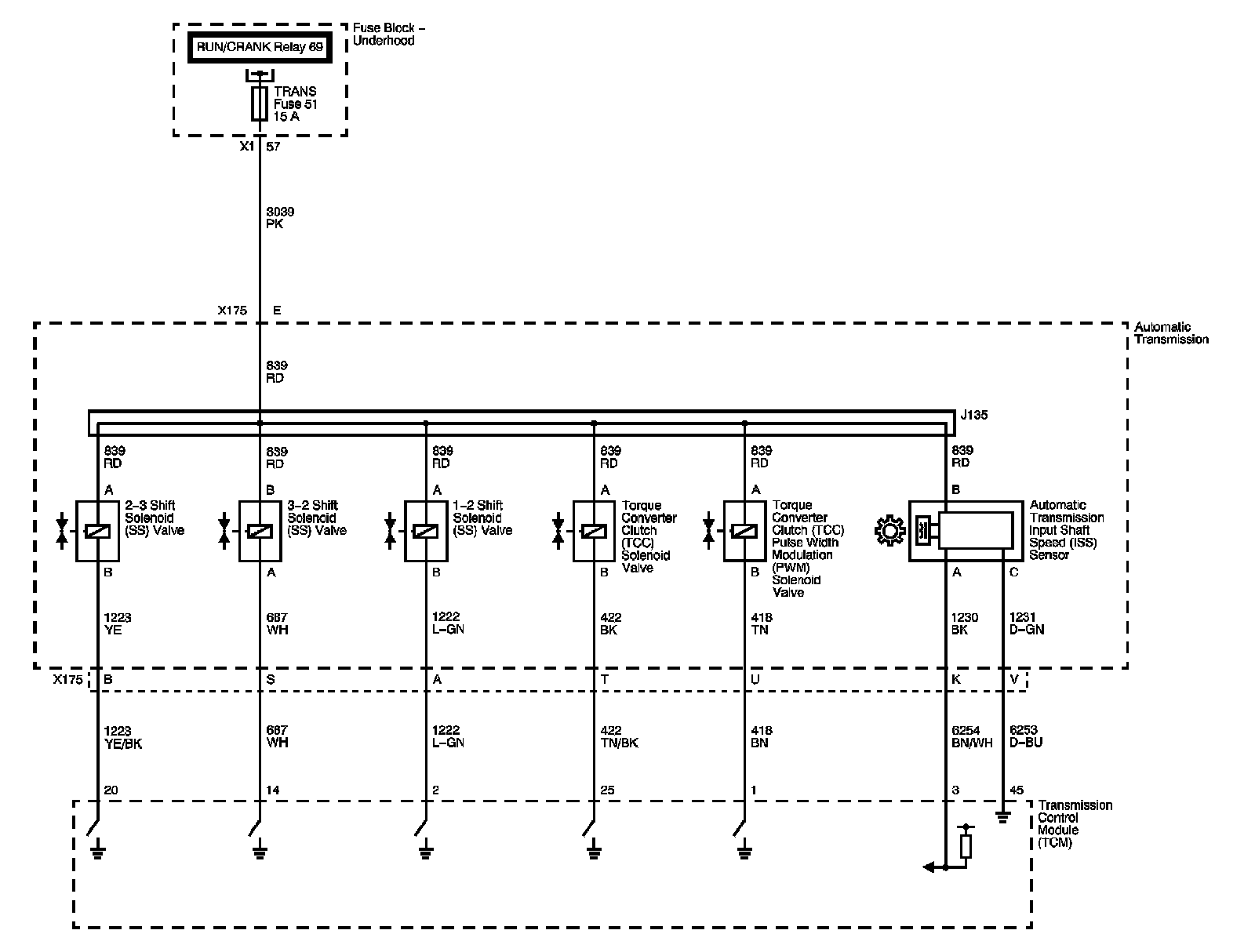

Shift Controls
Module Power, Ground and Serial Data
Pressure and Temperature Controls
PNP Signals, VSS Signal and Tow Haul Signal
Shift Controls
