Connector Views
Component Connector End Views

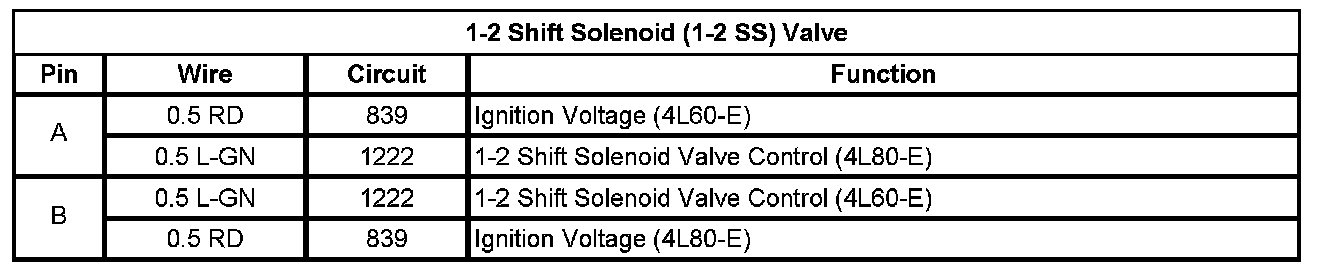

1-2 Shift Solenoid (1-2 SS) Valve
2-3 Shift Solenoid (2-3 SS) Valve (4L60-E)

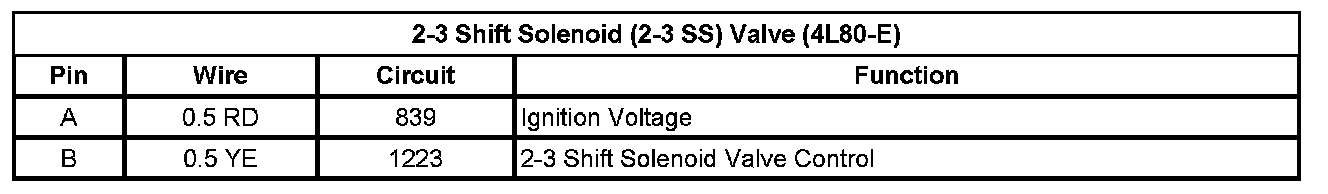

2-3 Shift Solenoid (2-3 SS) Valve (4L80-E)

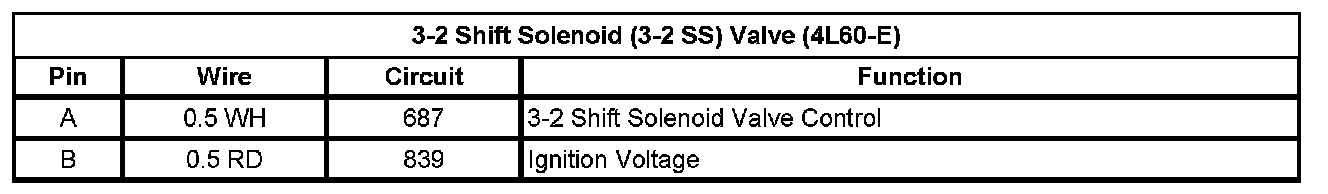

3-2 Shift Solenoid (3-2 SS) Valve (4L60-E)
A/T Shift Lock Control Solenoid
A/T Shift Lock Control Solenoid:
