Exhaust Pressure Differential Sensor Pipe Replacement

Exhaust Pressure Differential Sensor Pipe Replacement

Removal Procedure




1. Raise and support the vehicle. Refer to Vehicle Lifting.

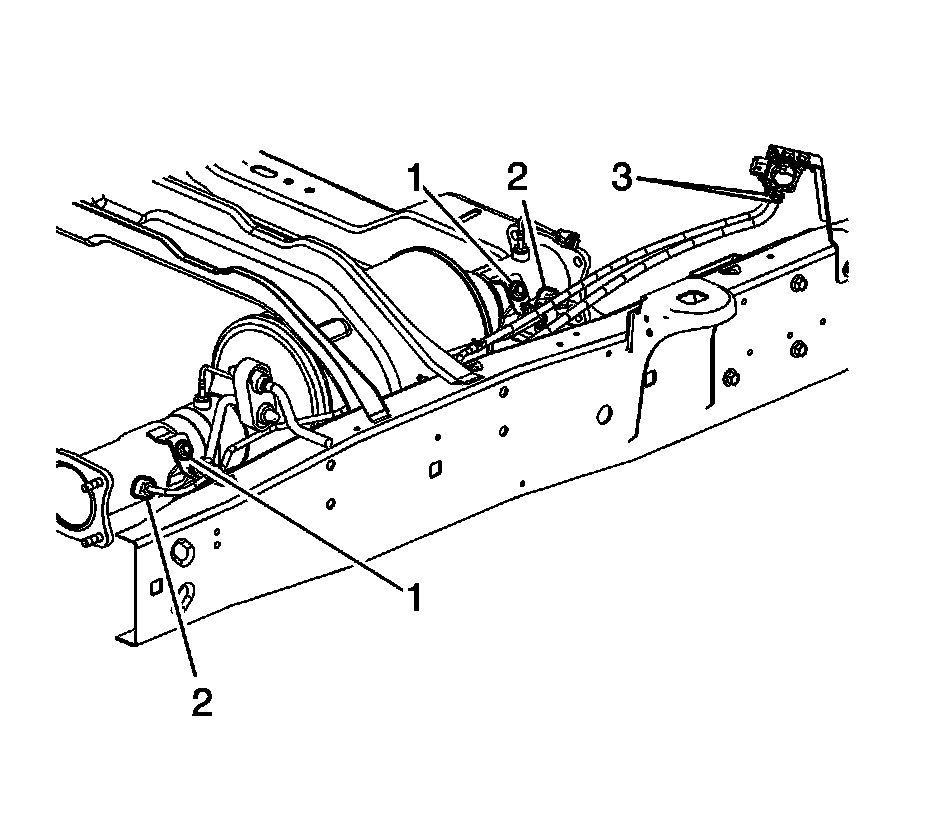

2. Reposition the exhaust differential pressure sensor pipe assembly hose clamps (3).
3. Remove the exhaust differential pressure sensor pipe assembly hoses from the sensor.
4. Remove the exhaust differential pressure sensor pipe assembly fittings (2).
5. Remove the exhaust differential pressure sensor bracket bolts (1).




6. Remove the exhaust differential pressure sensor pipe assembly.

Installation Procedure

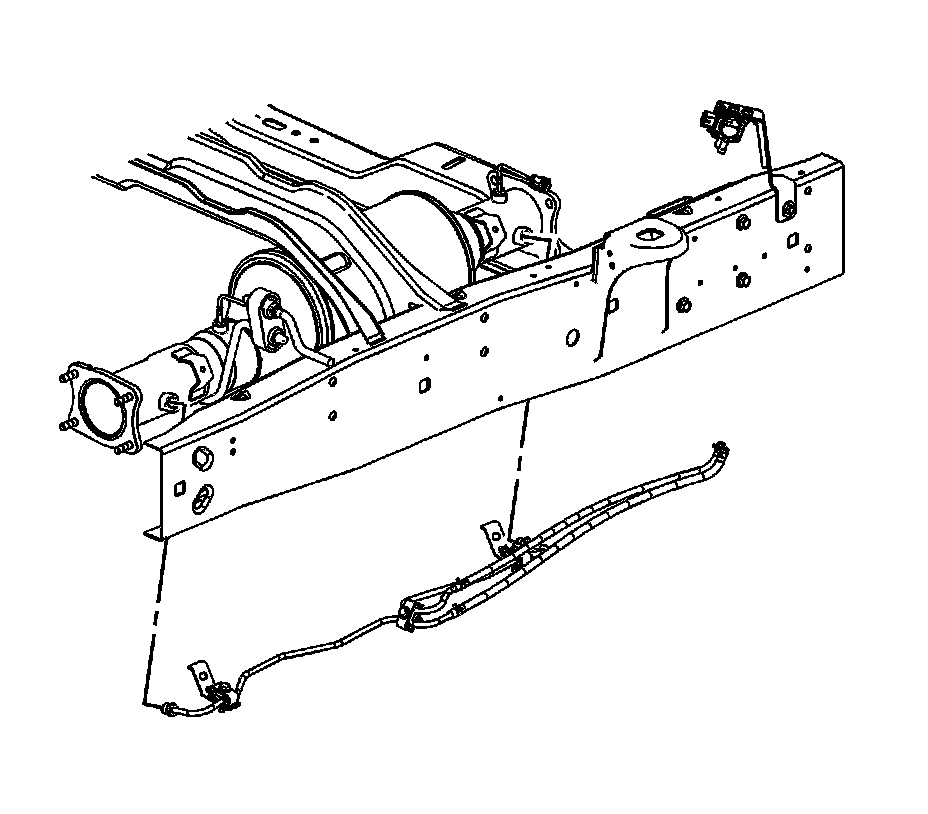

1. Position and install the exhaust differential pressure sensor pipe assembly.




2. Loosely install the exhaust differential pressure sensor bracket bolts (1).

Notice: Refer to Fastener Notice.

3. Install the exhaust differential pressure sensor pipe assembly fittings (2).

1. Tighten the exhaust differential pressure sensor pipe fittings to 45 N.m (33 lb ft).
2. Tighten the exhaust differential pressure sensor bracket bolts to 9 N.m (80 lb in).

4. Install the exhaust differential pressure sensor pipe assembly hoses to the sensor.
5. Position the exhaust differential pressure sensor pipe assembly hose clamps (3).
6. Lower the vehicle. Refer to Vehicle Lifting.
