EGR Temperature Sensor
>>
Service and Repair
>>

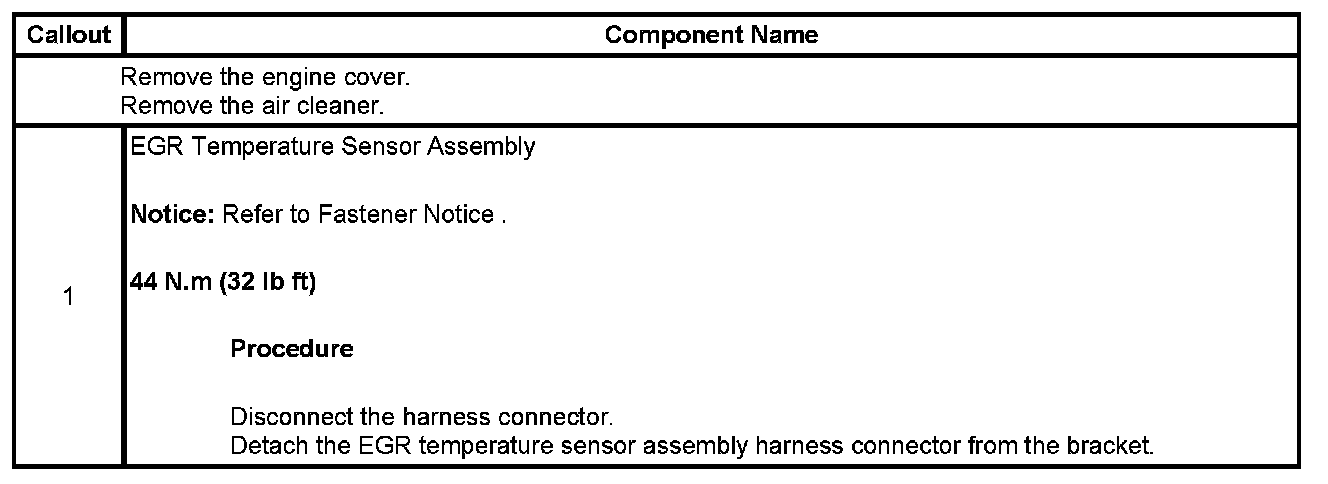

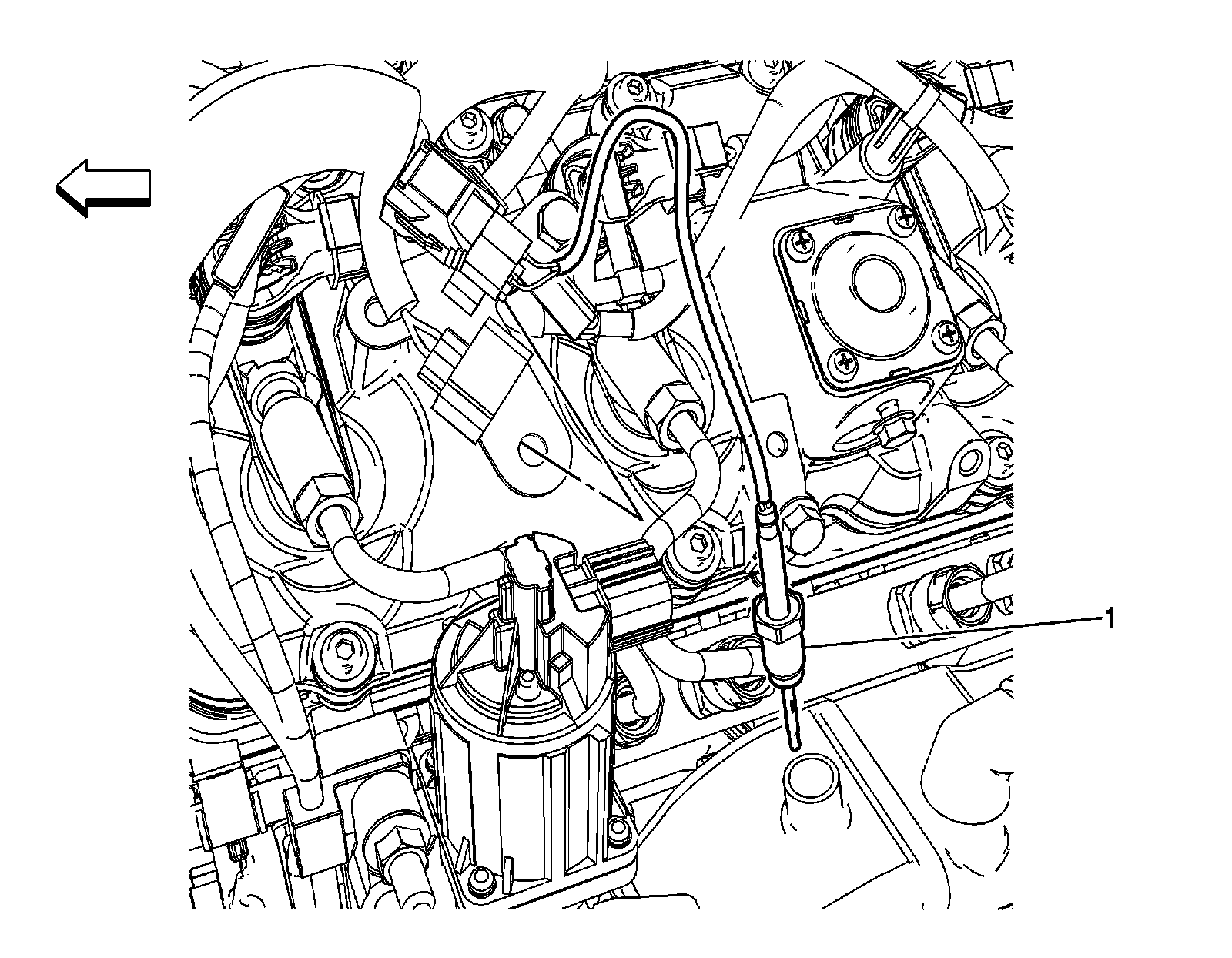

Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 1
Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 1
Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 1
