Air Temperature Sensor ( Ambient / Intake ): Diagrams



Component Connector End Views - Continued

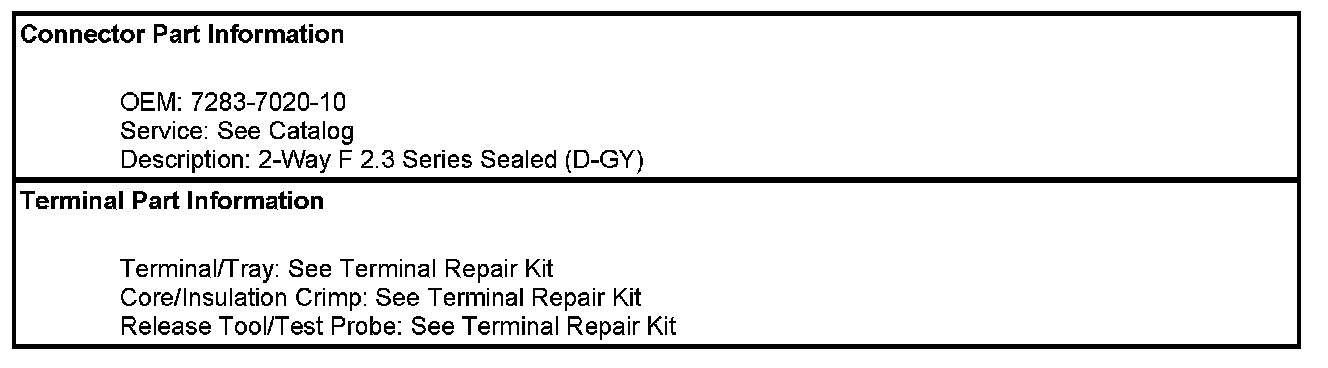

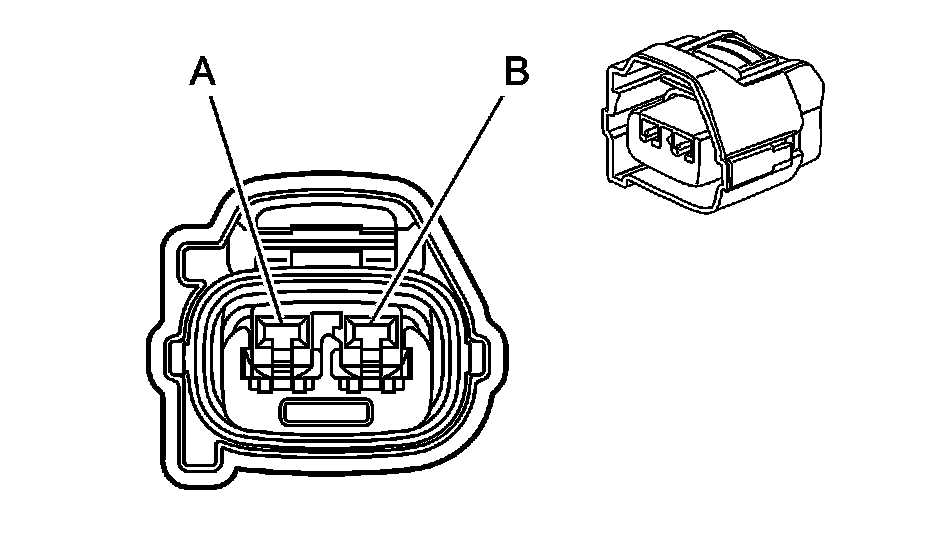

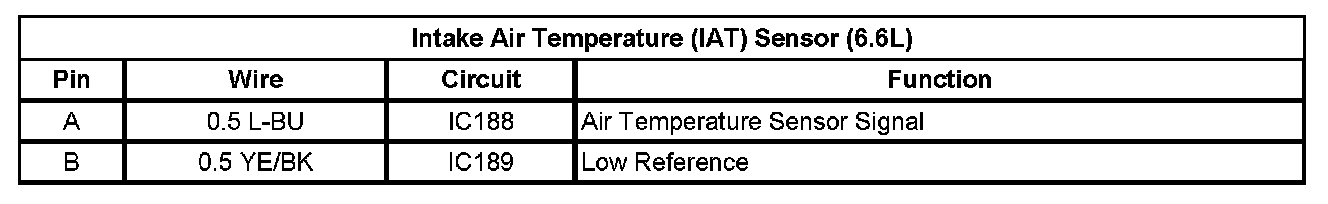

Intake Air Temperature (IAT) Sensor (6.6L)














Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (6.6L)
