Turn Signal Lamp: Diagrams

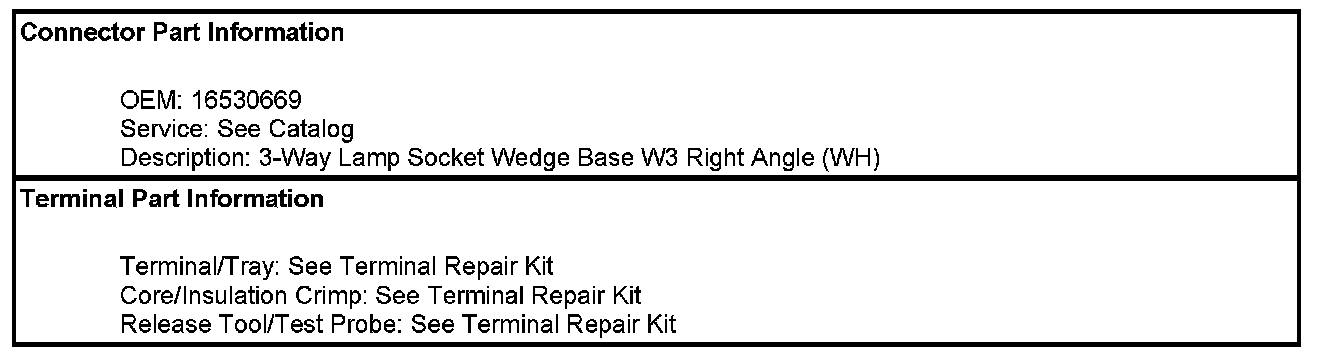

Component Connector End Views - Continued

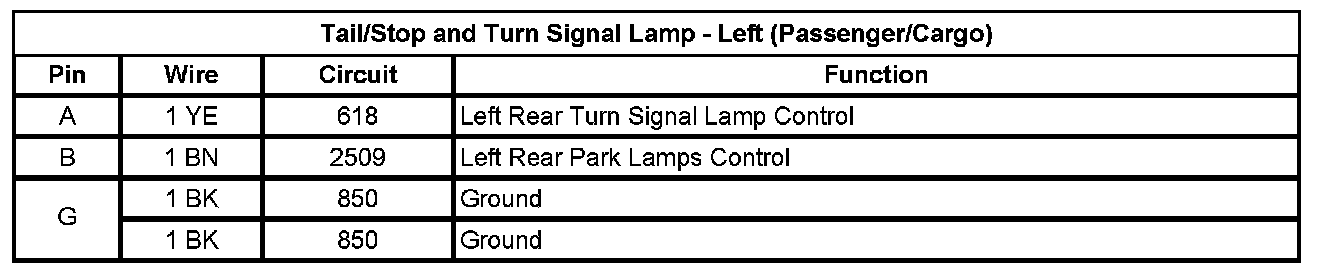

Tail/Stop and Turn Signal Lamp - Left (Passenger/Cargo)

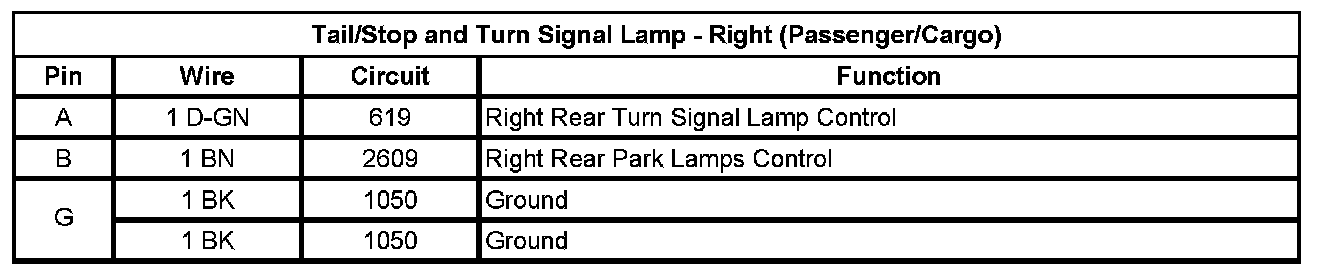

Tail/Stop and Turn Signal Lamp - Right (Passenger/Cargo)

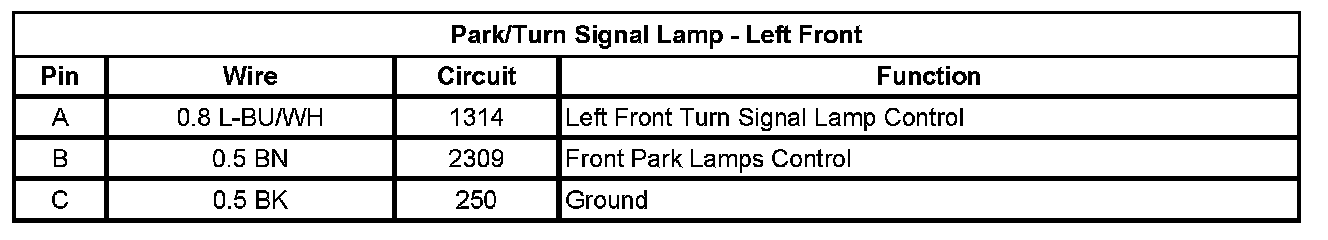

Park/Turn Signal Lamp - Left Front
Park/Turn Signal Lamp - Right Front
