Diagnosis By Symptom - HVAC System - Manual
>>
Vacuum Control System Diagnostic
Vacuum Control System Diagnostic
Vacuum Control System Diagnostic

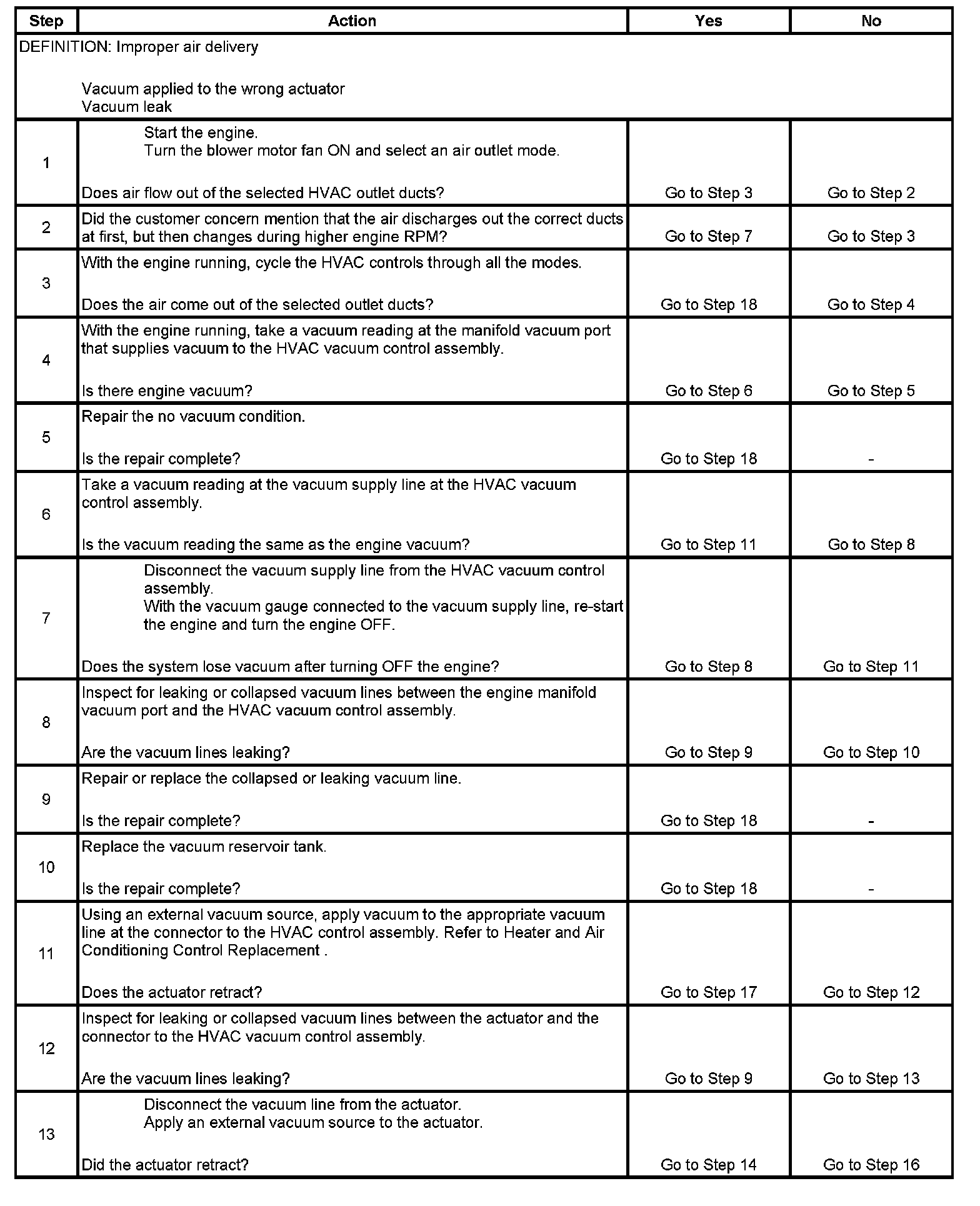

Step 1 - Step 13:

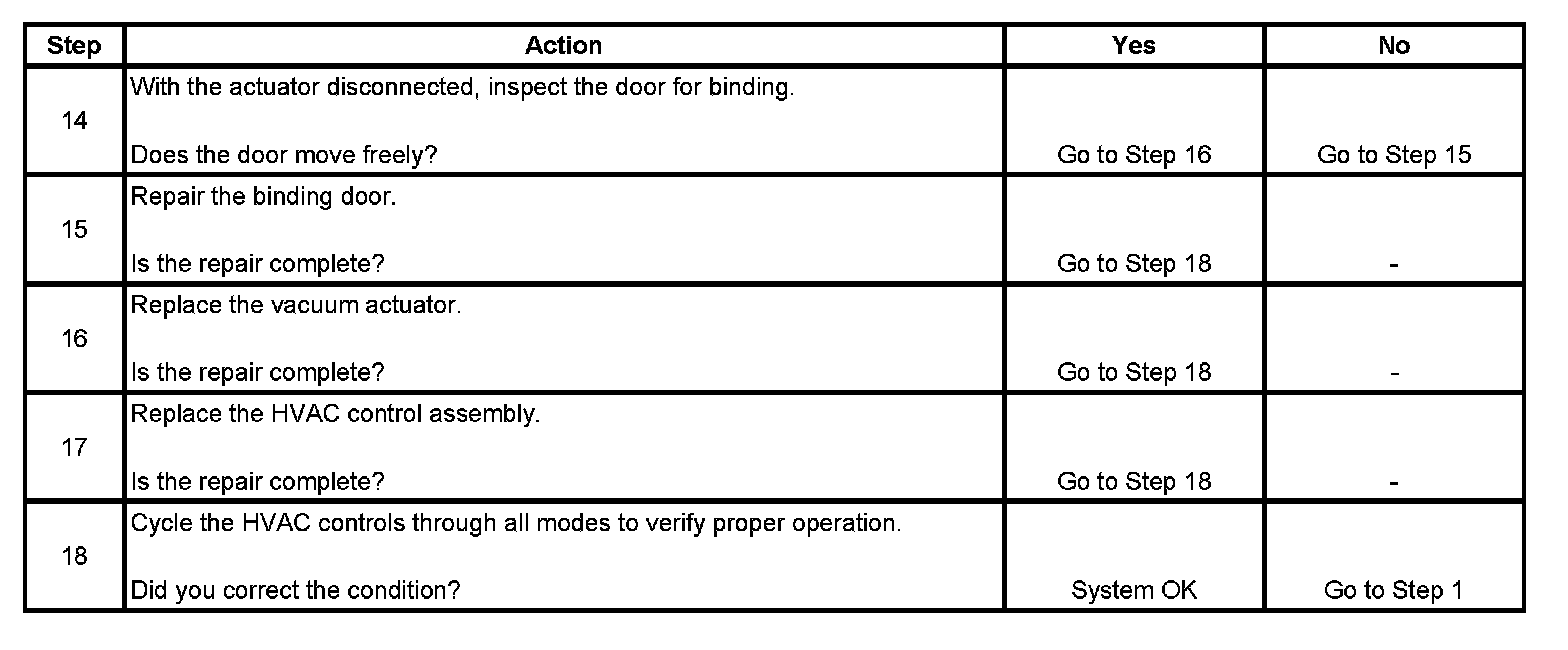

Step 14 - Step 18:
