Air Cleaner Outlet Duct Replacement

Air Cleaner Outlet Duct Replacement

Removal Procedure

1. Remove the air cleaner assembly.

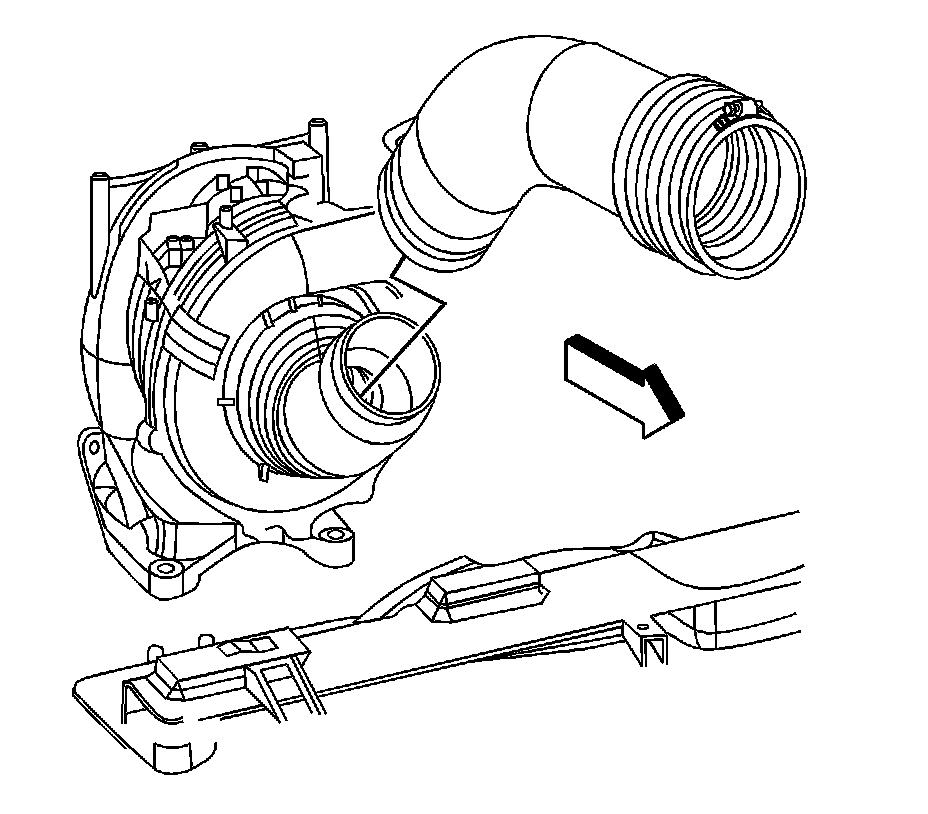

2. Loosen the air intake duct to turbo clamp.
3. Remove the intake air duct.

Installation Procedure




1. Install the intake air duct.

Notice: Refer to Fastener Notice.

2. Tighten the intake air duct to turbo clamp.

Tighten the intake air duct to turbo clamp to 8 N.m (71 lb in).

3. Install the air cleaner assembly.
