39. Engine Front Cover Removal

Engine Front Cover Removal

Tools Required

J 37228 Seal Cutter





1. Remove the crankshaft position sensor bolt.
2. Remove the crankshaft position sensor.

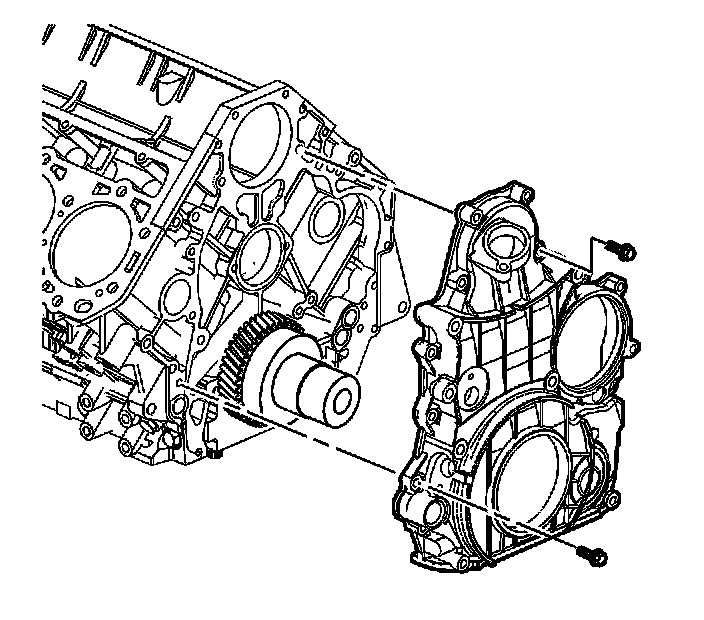

3. Remove the engine front cover bolts.
4. Separate the engine front cover from the cylinder block using J 37228 .
5. Remove the engine front cover.
