26. Intake Manifold Crossover Removal
26. Intake Manifold Crossover Removal

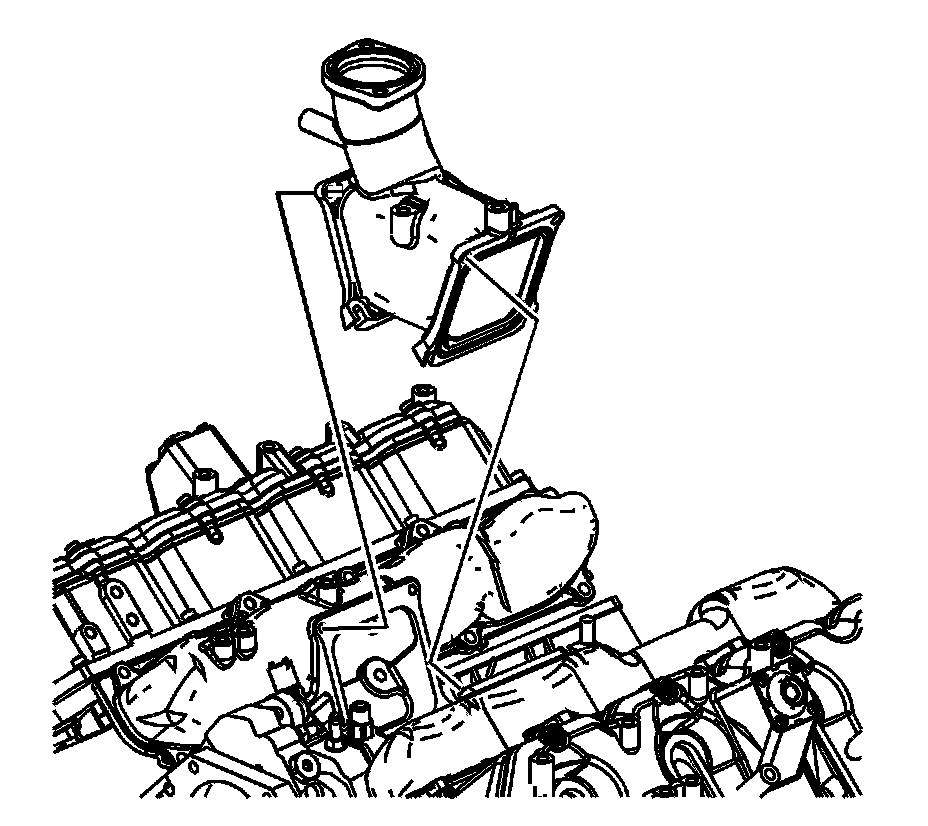

Intake Manifold
Crossover Removal
1.
Remove the
intake manifold
crossover bolts and nuts.
2.
Remove the
intake manifold
crossover.
