123. Exhaust Outlet Installation

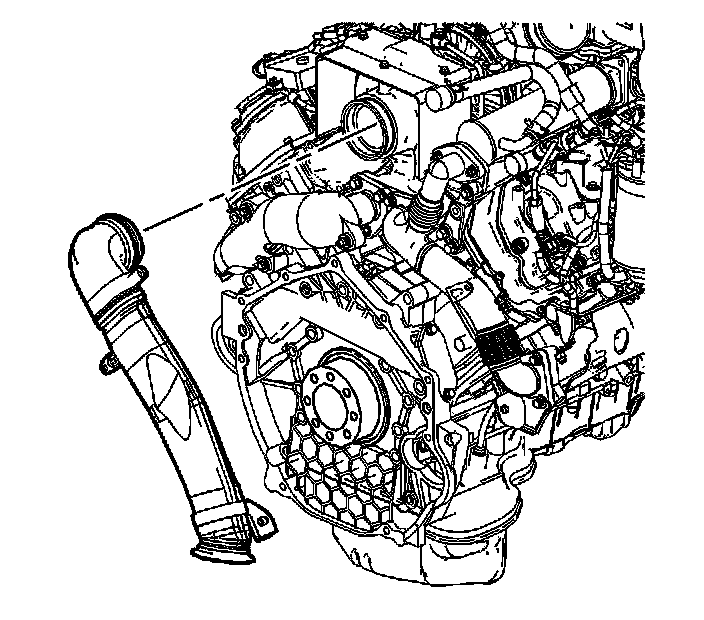

Exhaust Outlet Installation





1. Install the exhaust outlet.

Notice: Refer to Fastener Notice .

2. Install the exhaust outlet clamp.

Tighten the exhaust outlet clamp to 15 N.m (11 lb ft).





3. Install the exhaust outlet to right exhaust pipe bracket bolt.

Tighten the exhaust outlet to right exhaust pipe bracket bolt to 34 N.m (25 lb ft).

4. Install the exhaust outlet heat shield.
5. Install the exhaust outlet heat shield bolts.

Tighten the exhaust outlet heat shield bolts to 10 N.m (89 lb in).
