116. Cooling Fan Pulley Installation

Cooling Fan Pulley Installation





1. Lubricate the camshaft position sensor O-ring with engine oil.
2. Install the camshaft position sensor.

Notice: Refer to Fastener Notice .

3. Install the camshaft position sensor retaining bolt.

Tighten the camshaft position sensor retaining bolt to 10 N.m (89 lb in).

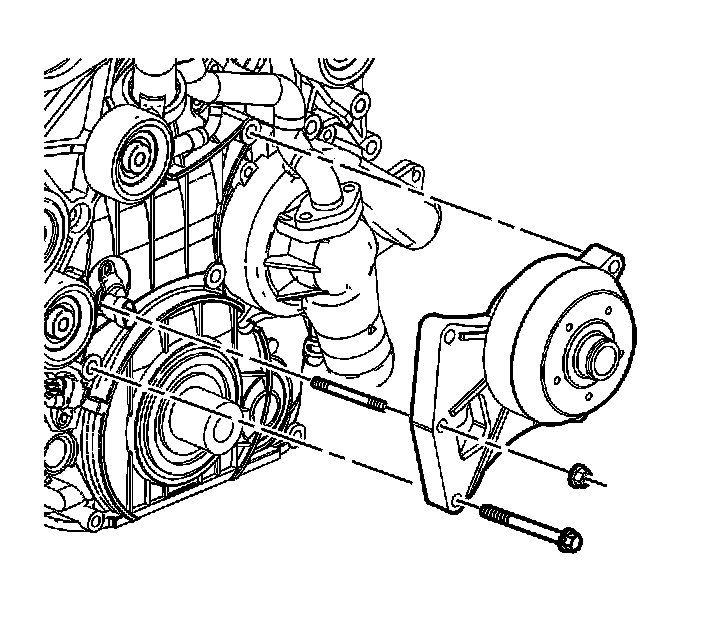

4. Install the cooling fan pulley.
5. Install the cooling fan pulley bolts and nuts.

Tighten the cooling fan pulley bolts and nuts to 41 N.m (30 lb ft).





6. Connect the camshaft position sensor connector.
