115. Power Steering Pump Mounting Bracket Installation

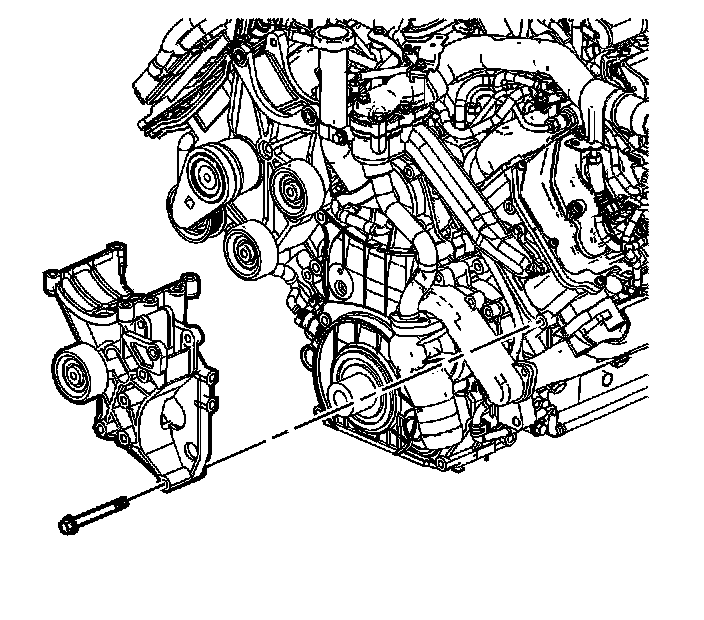

Power Steering Pump Mounting Bracket Installation





1. Install the power steering pump mounting bracket.

Notice: Refer to Fastener Notice .

2. Install the power steering pump mounting bracket bolts.

Tighten the power steering pump mounting bracket bolts to 46 N.m (34 lb ft).
