Trailer Connector
Trailer Connector

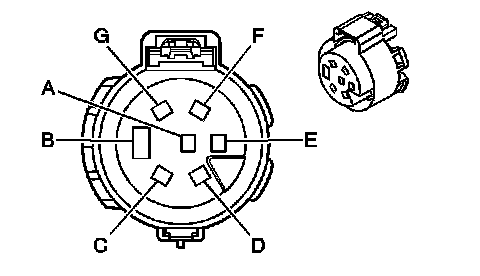

Component Connector End Views - Continued

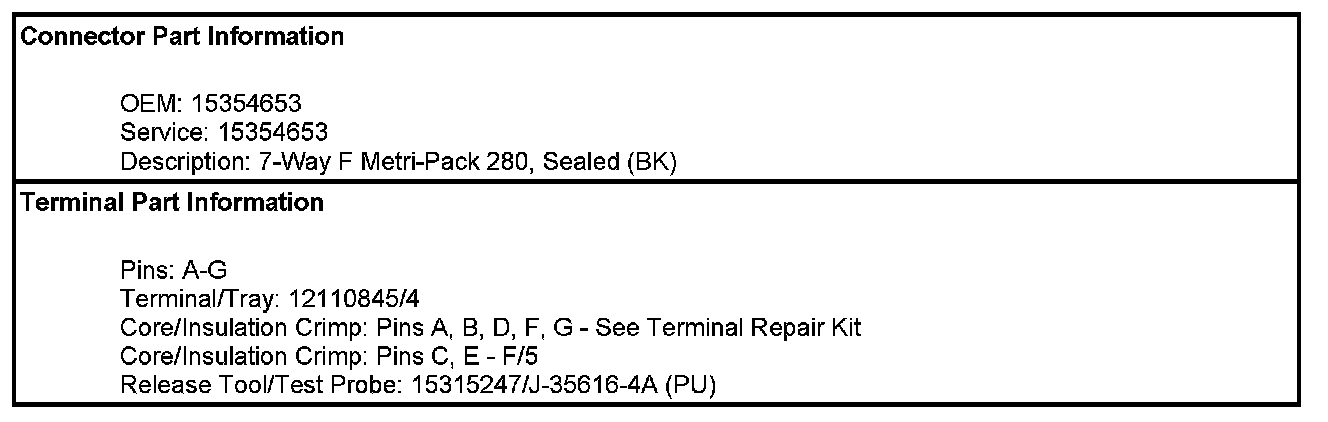

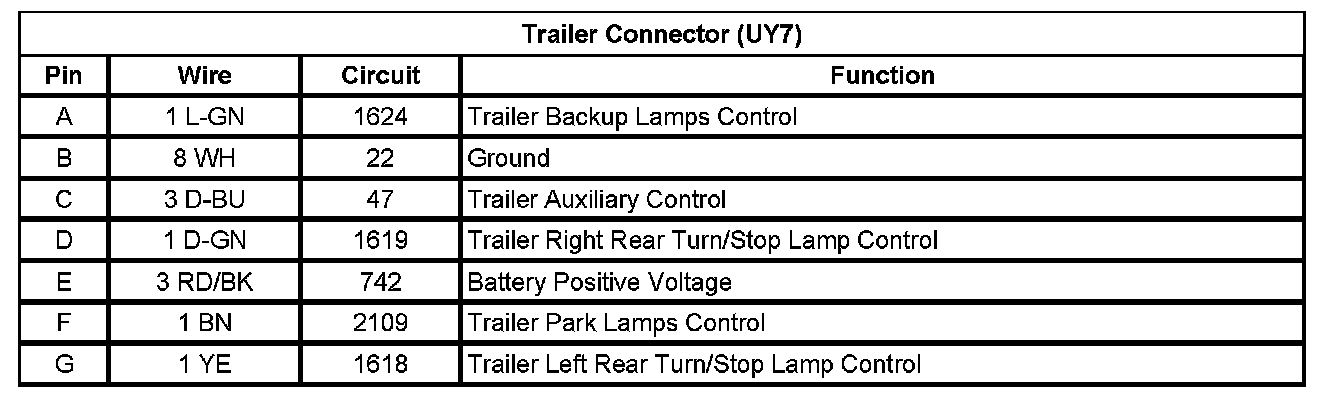

Trailer Connector
(UY7)
