Map Light

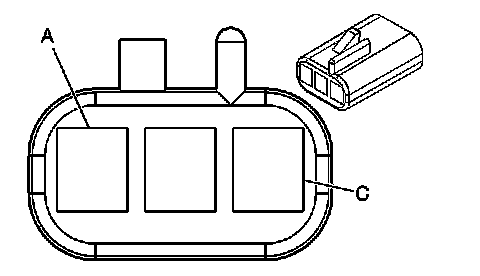

Component Connector End Views

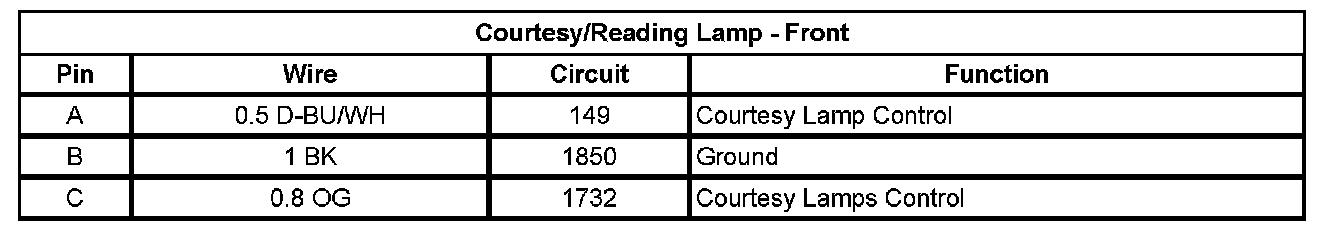

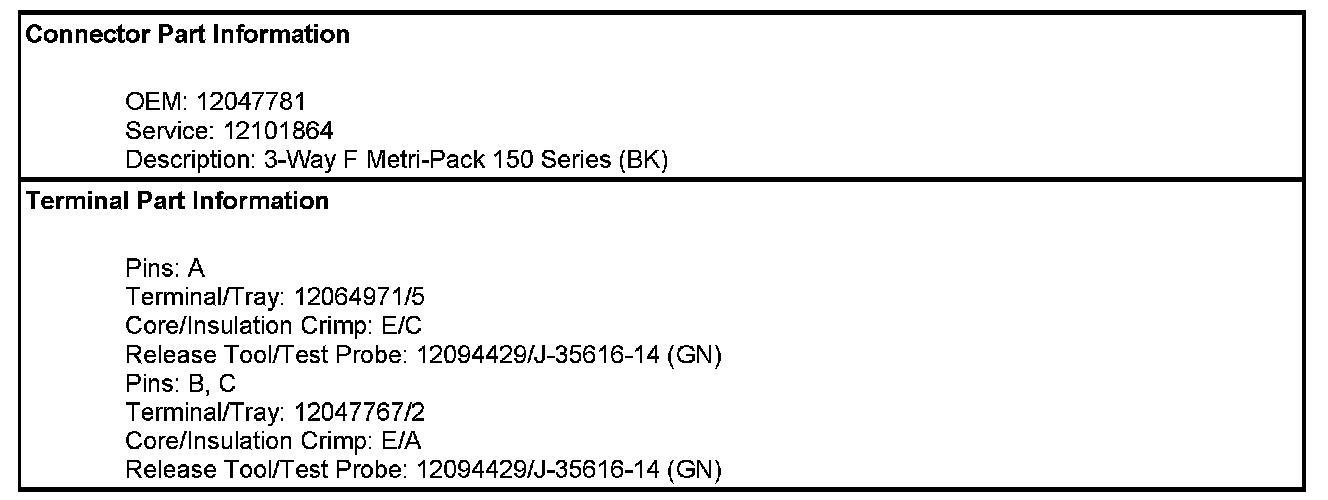

Courtesy/Reading Lamp - Front

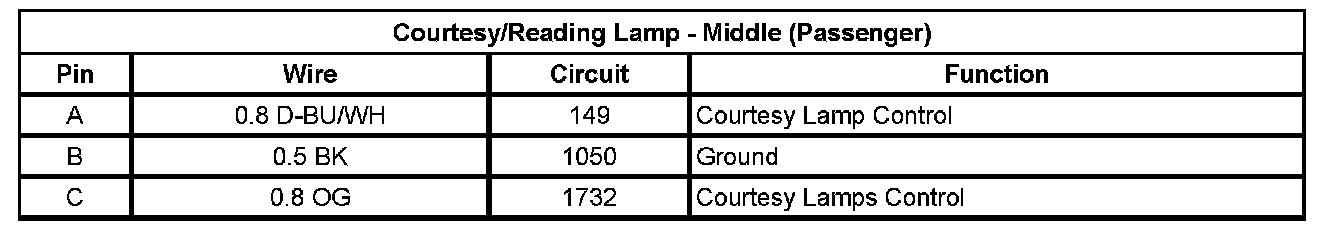

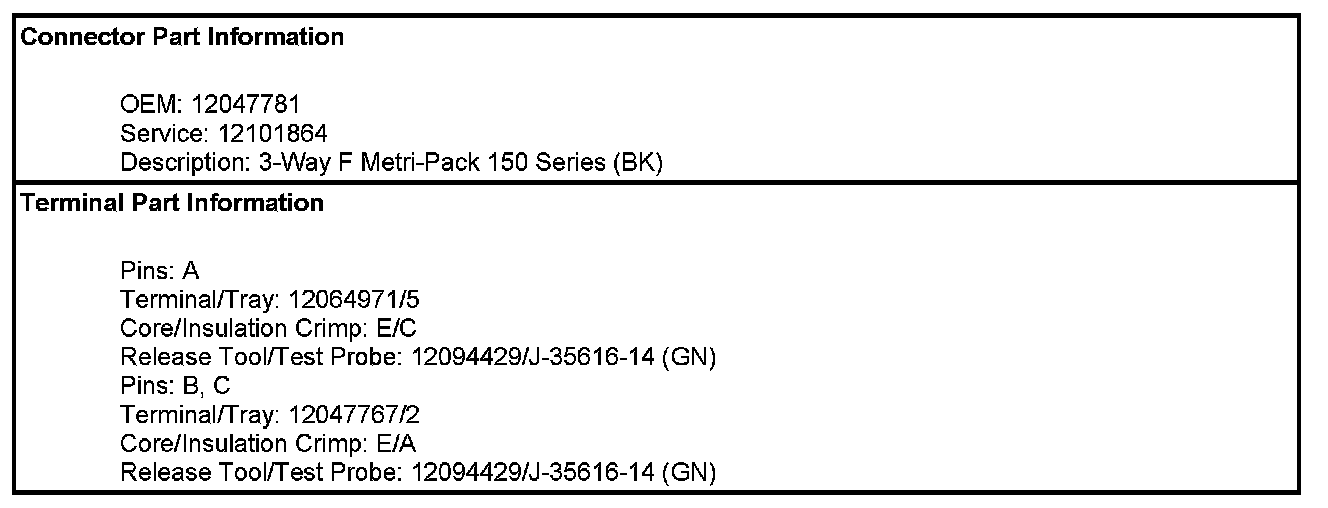

Courtesy/Reading Lamp - Middle (Passenger)

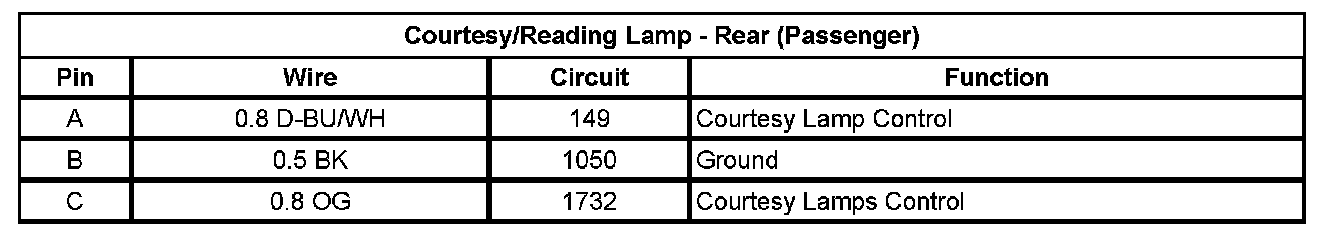

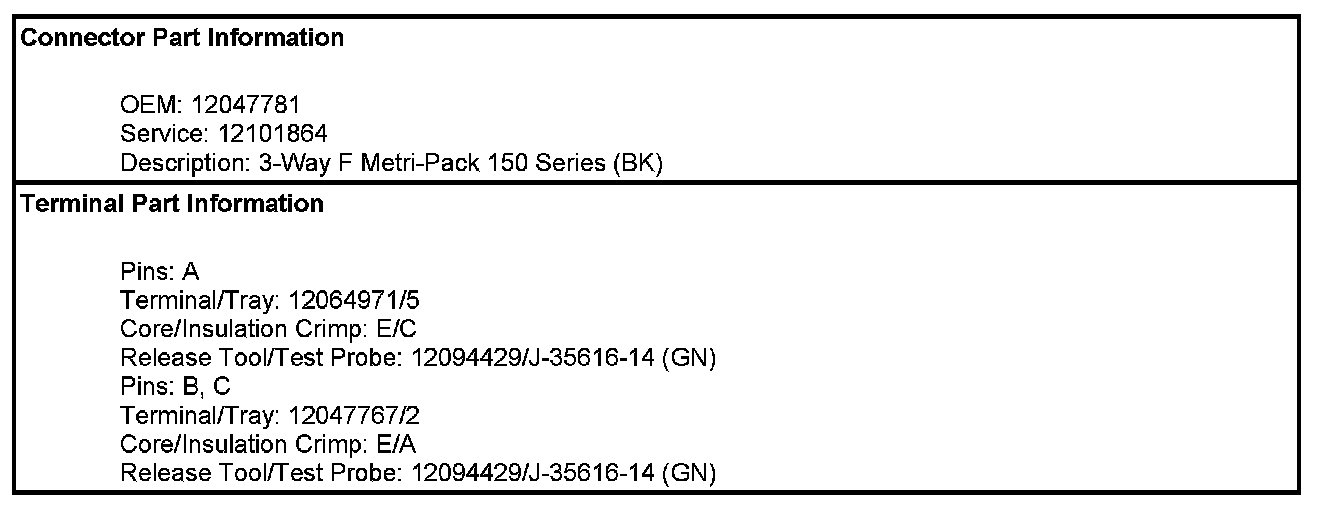

Courtesy/Reading Lamp - Rear (Passenger)
