System Diagram

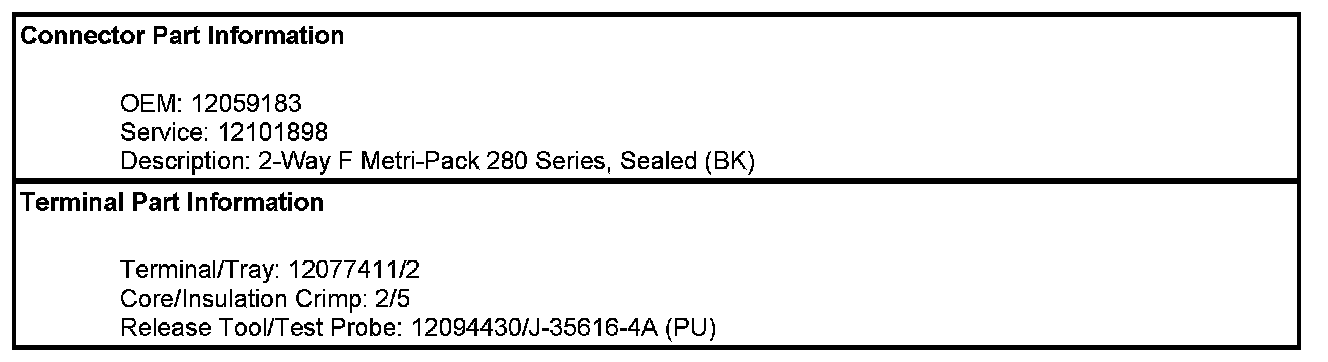

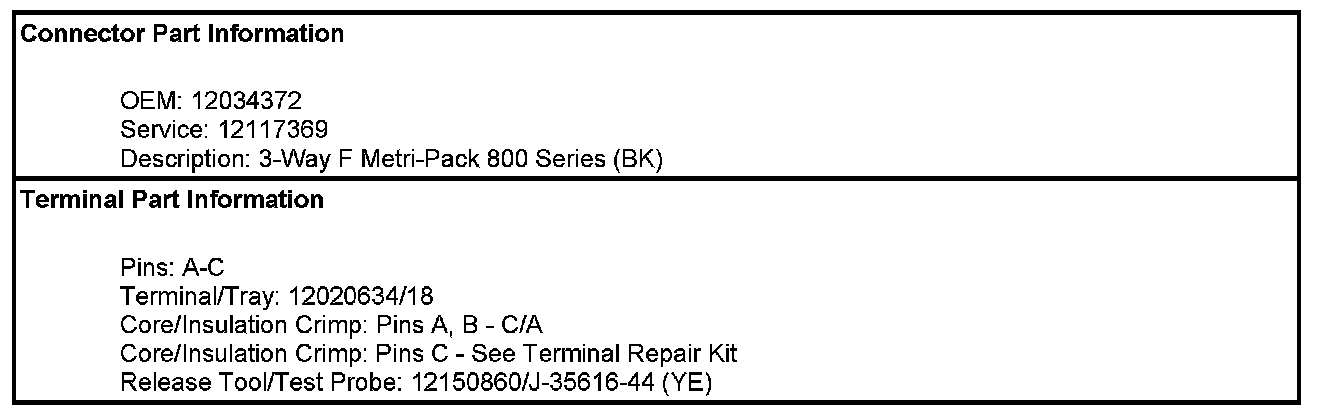

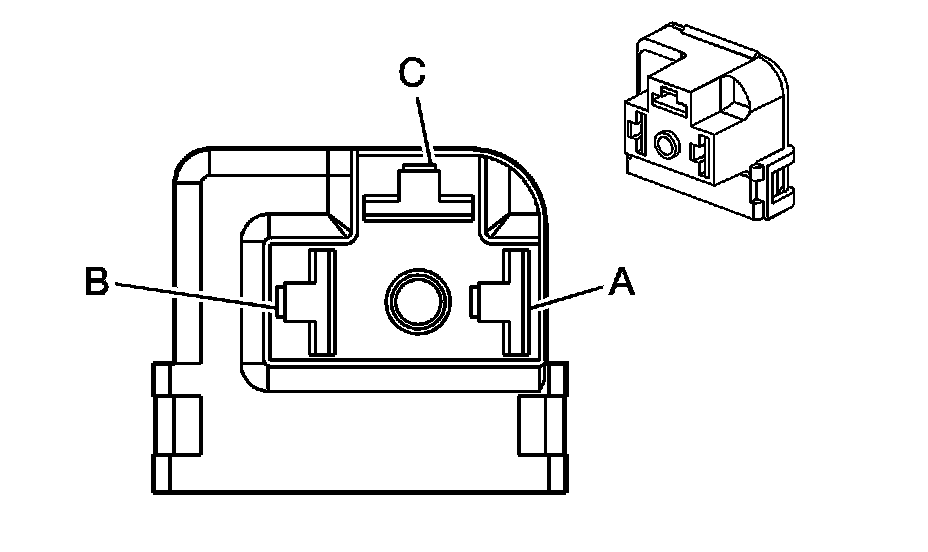

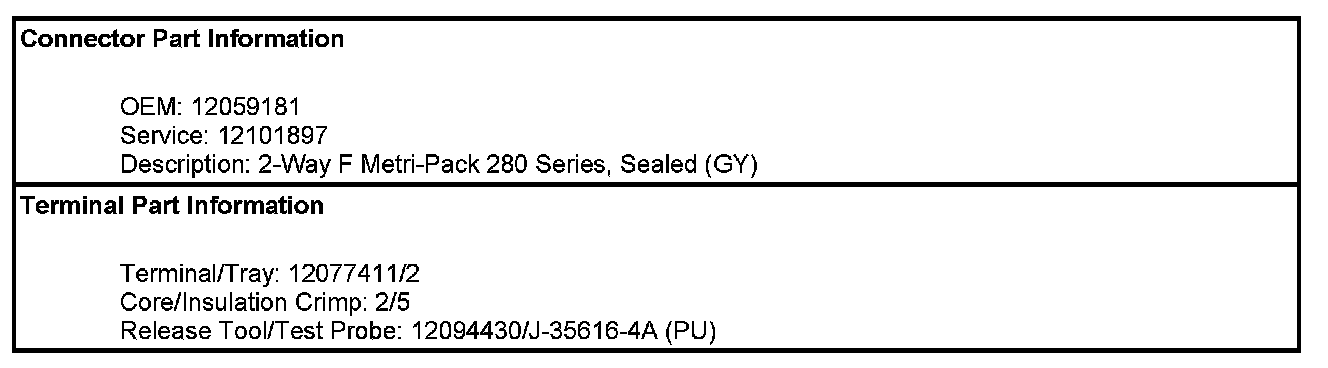

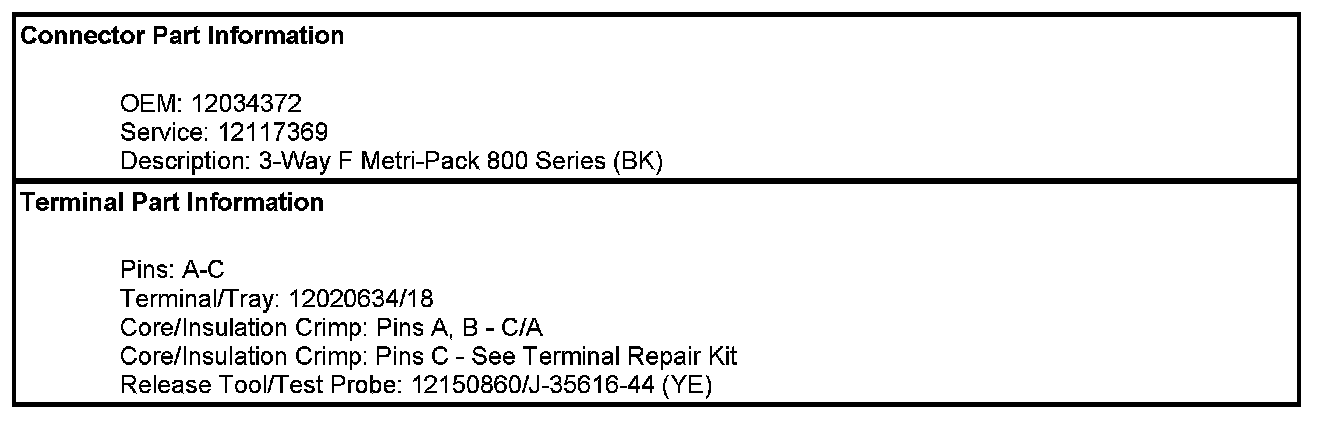

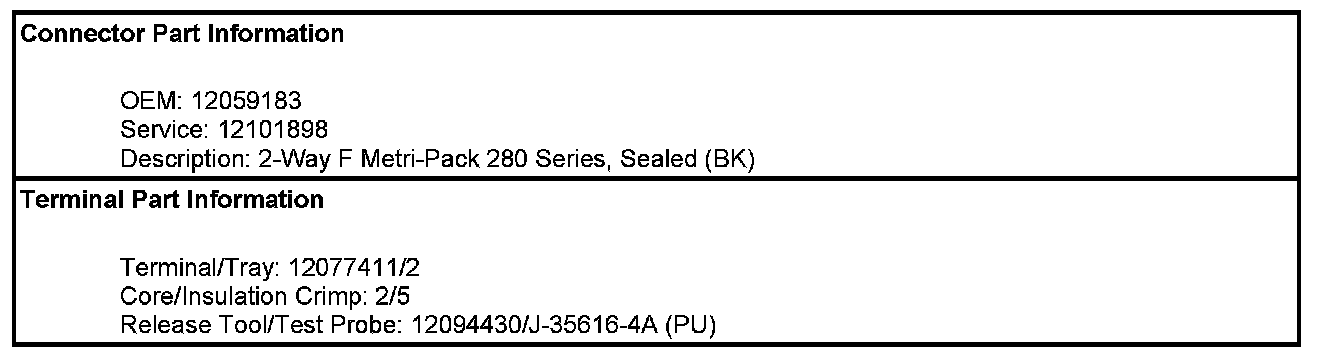

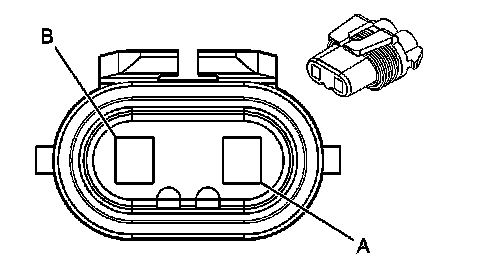

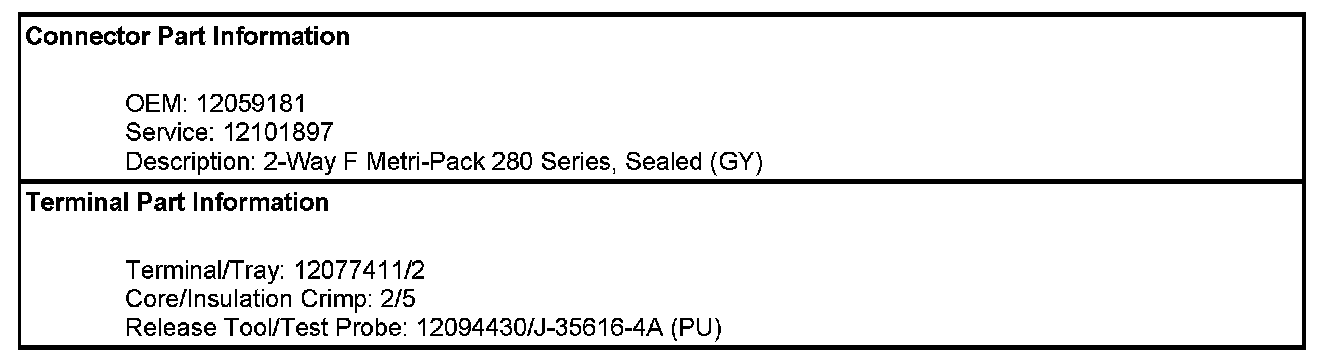

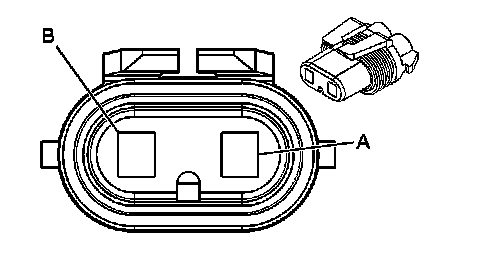

Component Connector End Views

Headlamp - High Beam - Left (Composite)

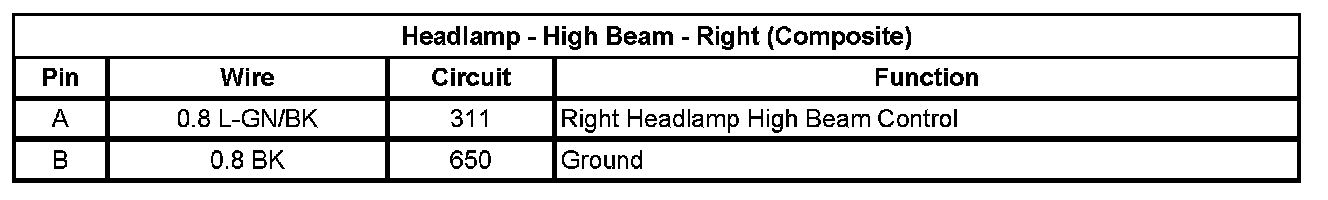

Headlamp - High Beam - Right (Composite)

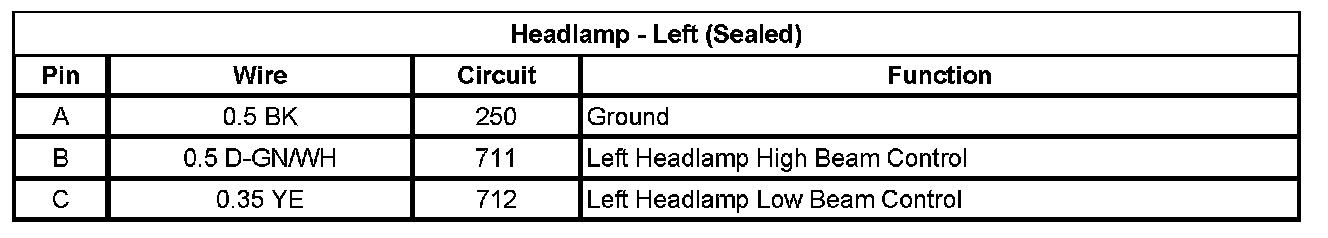

Headlamp - Left (Sealed)

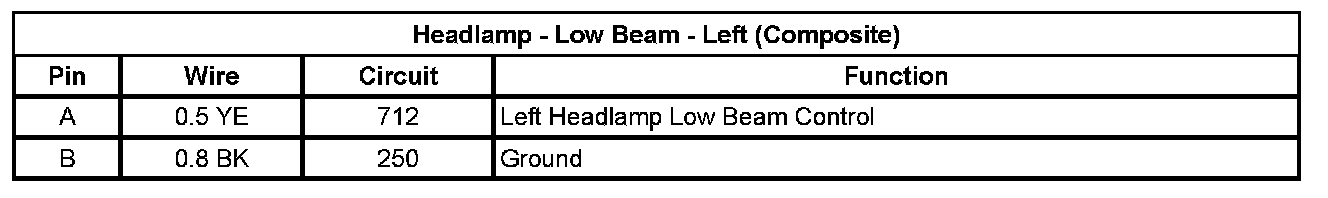

Headlamp - Low Beam - Left (Composite)

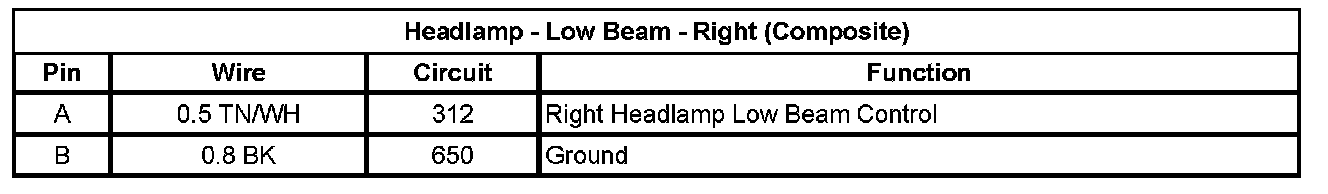

Headlamp - Low Beam - Right (Composite)

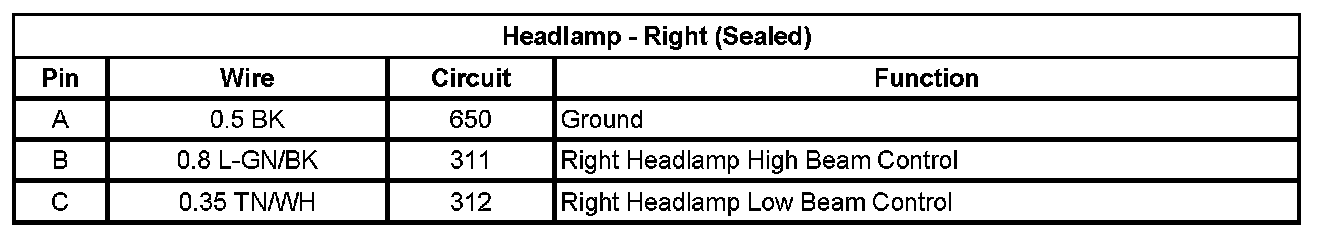

Headlamp - Right (Sealed)
