Blower Motor Resistor



Component Connector End Views

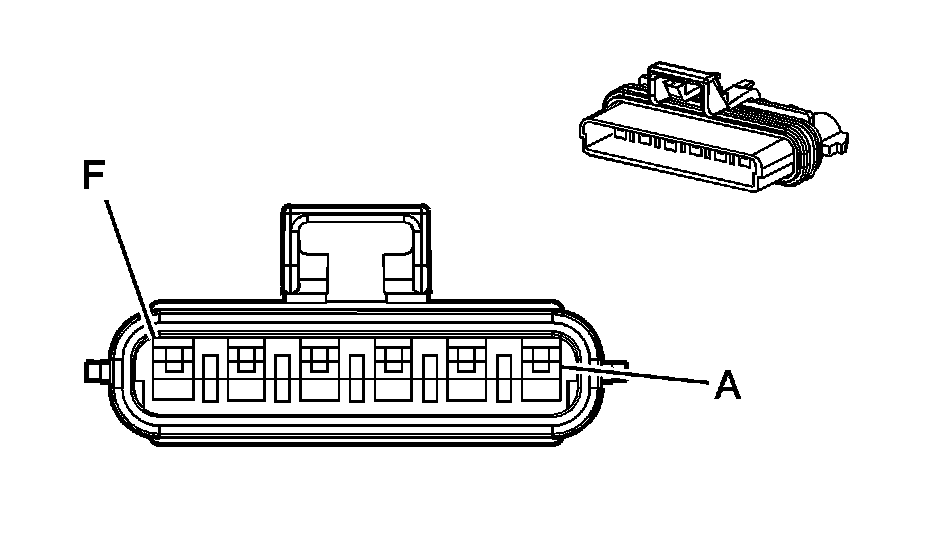

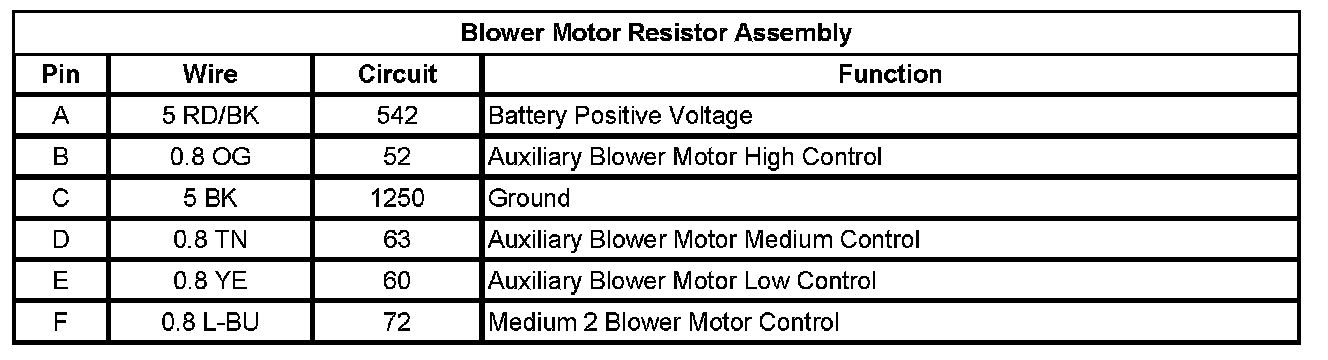

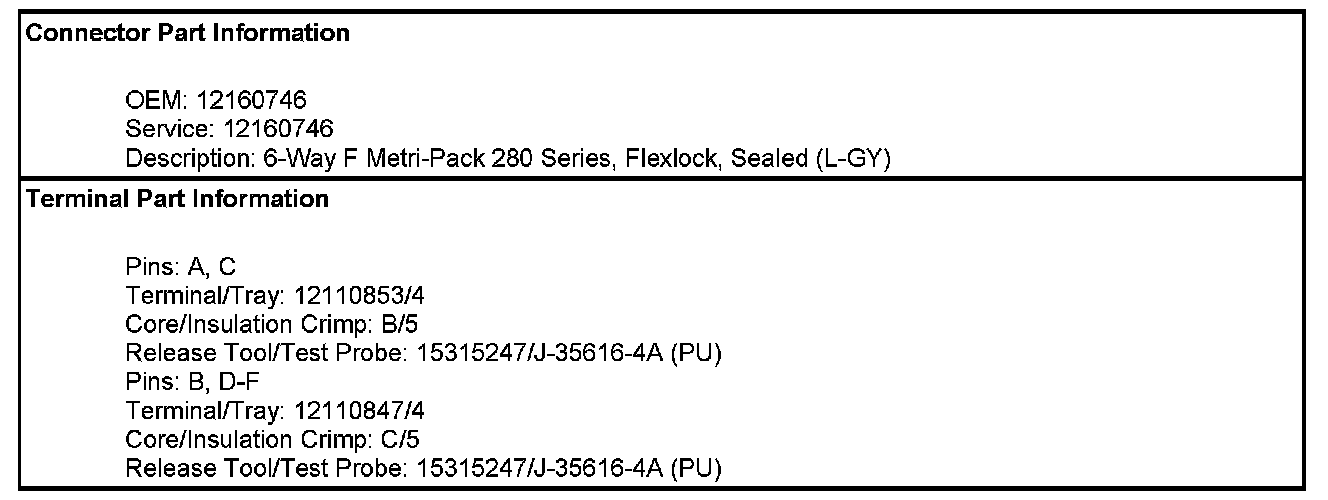

Blower Motor Resistor Assembly

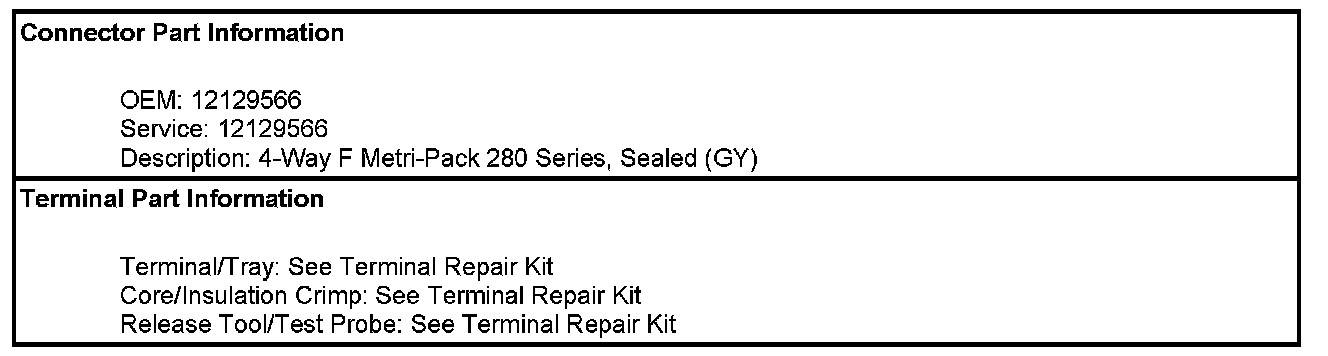

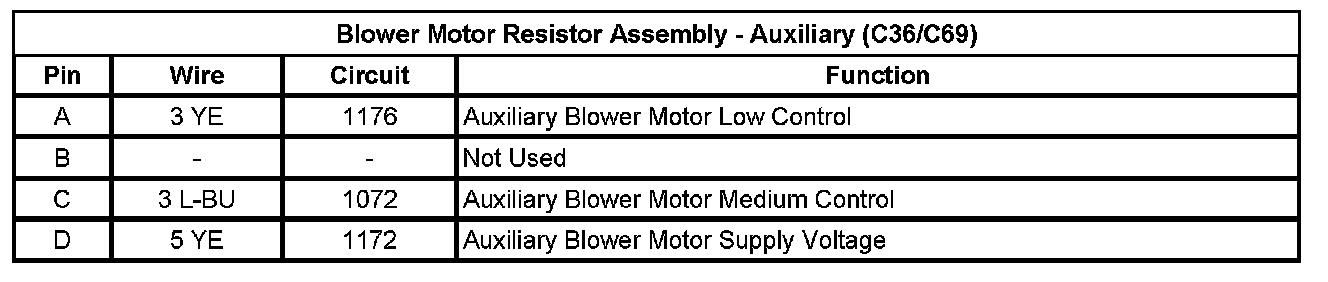

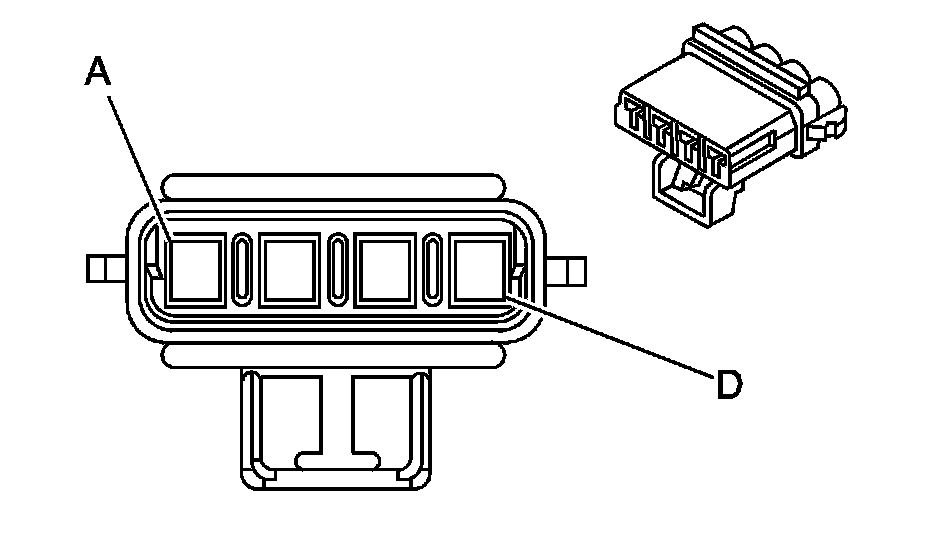

Blower Motor Resistor Assembly - Auxiliary (C36/C69)
