Home >> Chevy Truck >> 2008 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Door Actuator / Motor, HVAC

Air Door Actuator / Motor, HVAC



Component Connector End Views

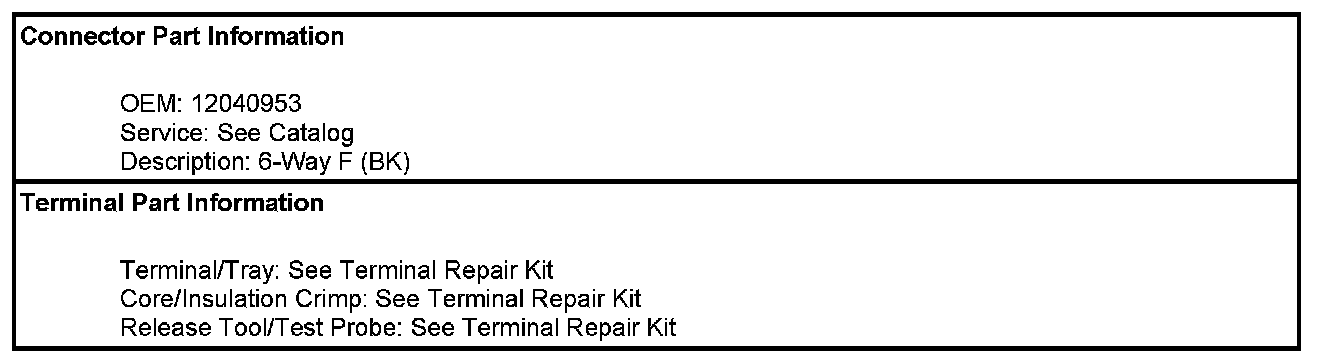

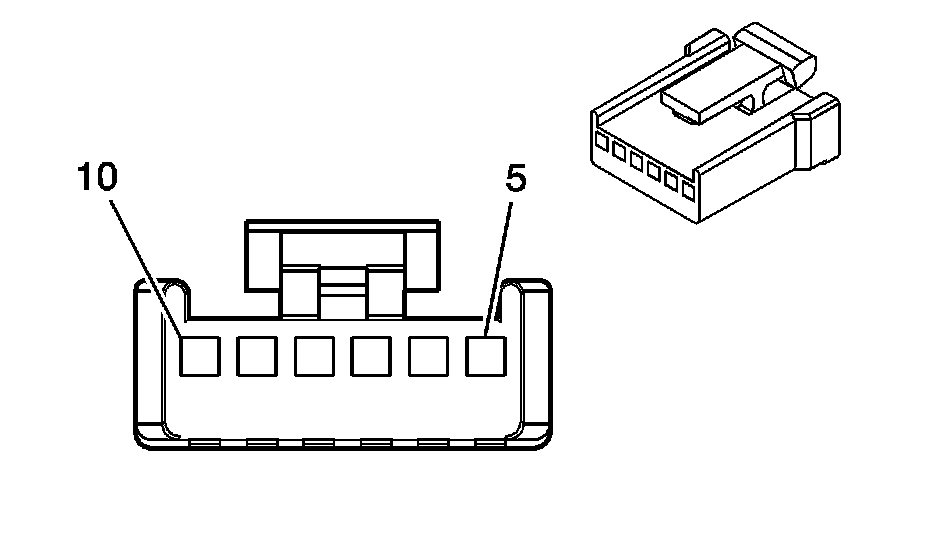

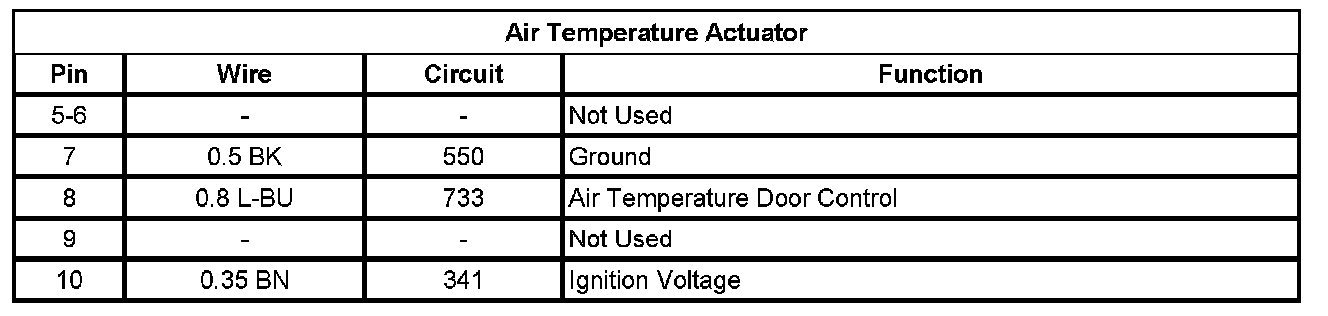

Air Temperature Actuator

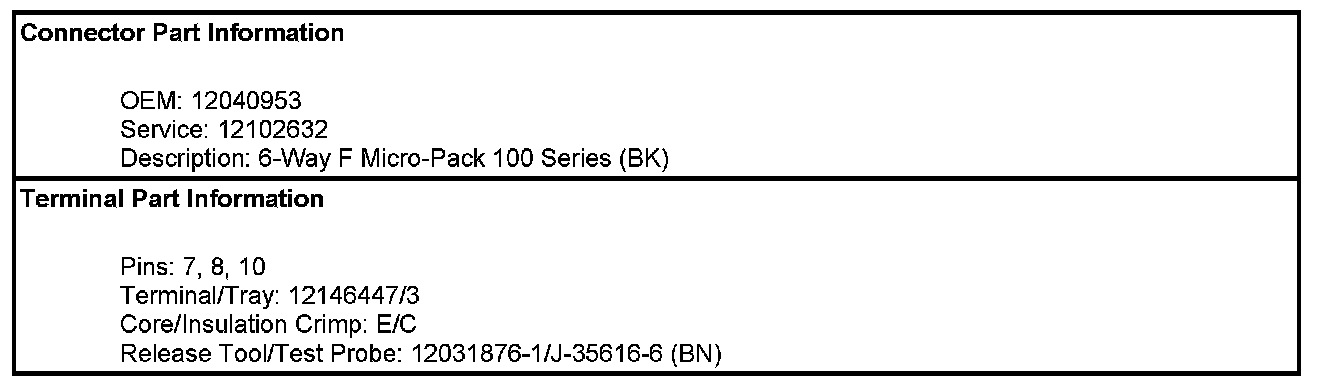

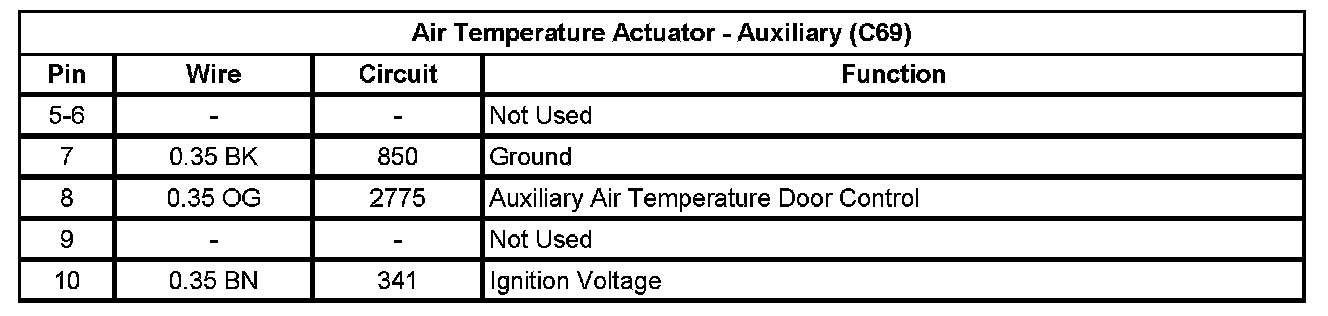

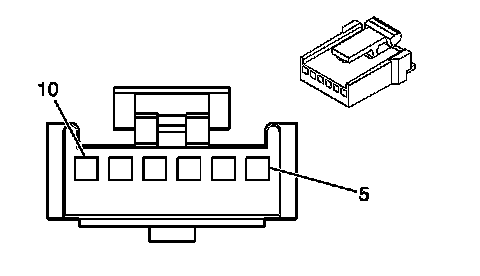

Air Temperature Actuator - Auxiliary (C69)

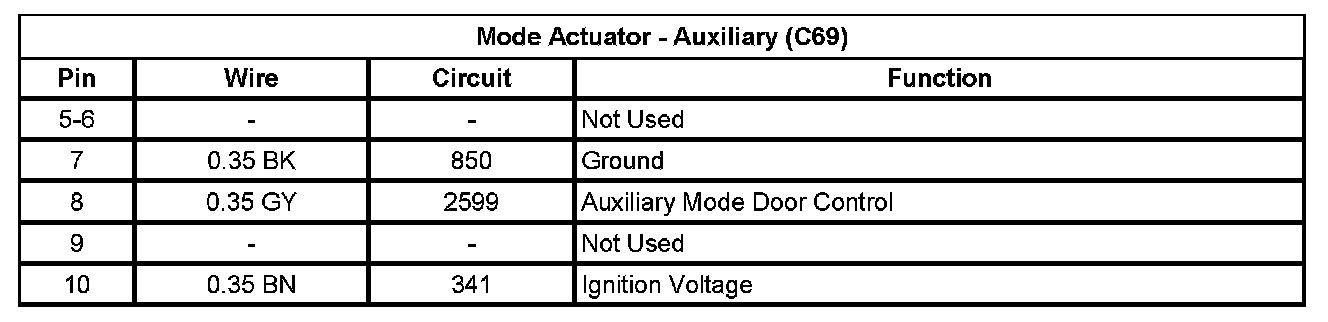

Mode Actuator - Auxiliary (C69)
