Chevy Truck
>>
2008
>>
Express 3500 V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Deactivation Indicator
Air Bag Deactivation Indicator

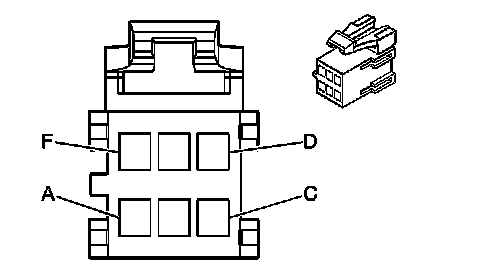

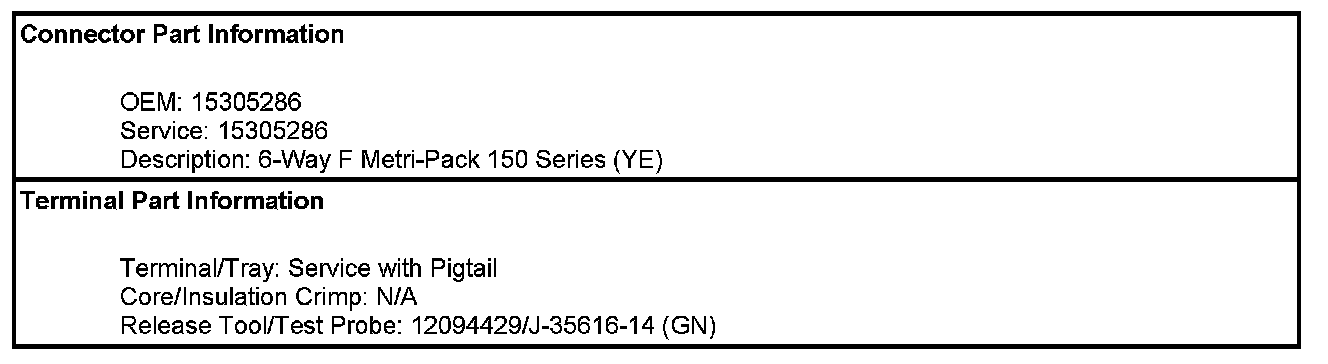

Component Connector End Views

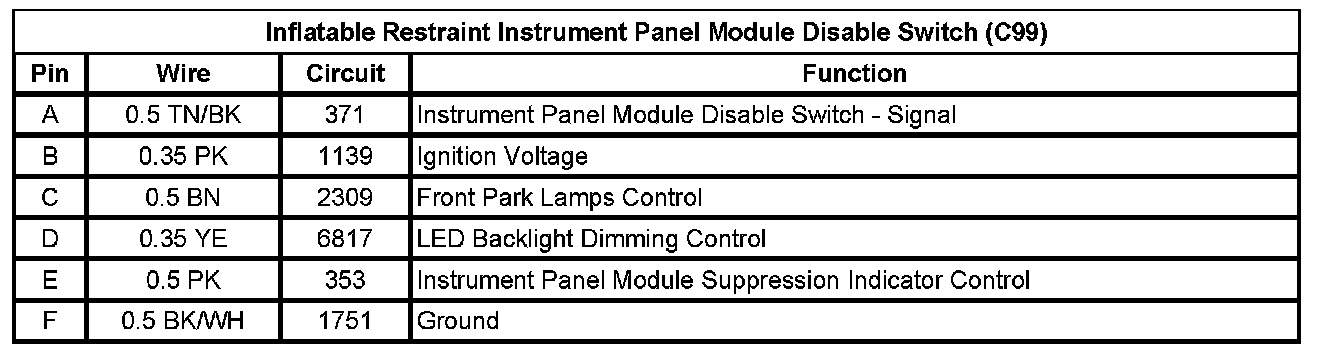

Inflatable Restraint Instrument Panel Module Disable Switch (C99)
